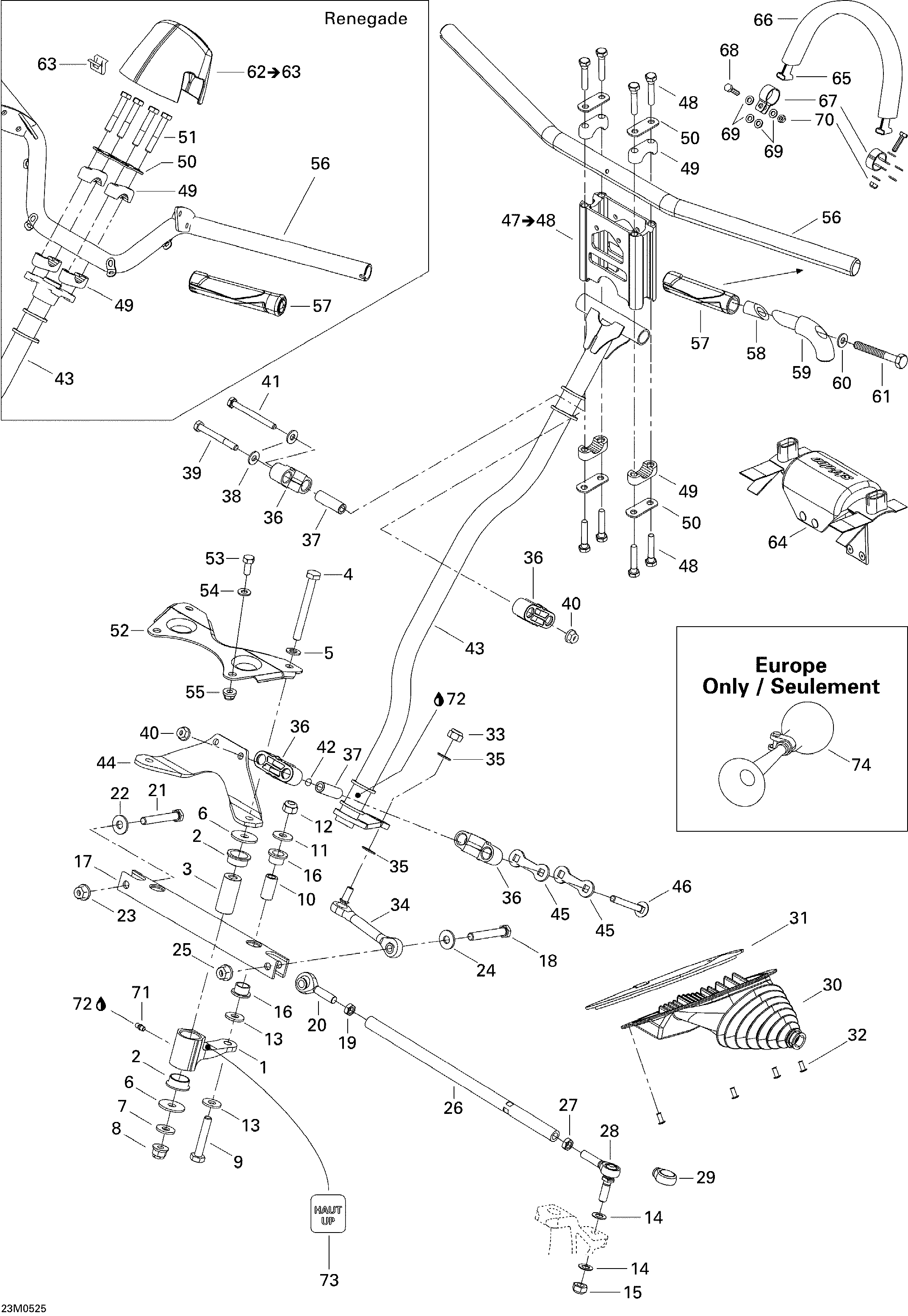

07- Steering System для BRP Ski-Doo MX Z 600 HO SDI Renegade & Renegade X - 2005
-
№АртикулНазвание
-
1506151627 RH Swivel ArmRH Swivel Arm
-
1506151628 LH Swivel ArmLH Swivel Arm
-
2415041100 CushionCushion
-
3506151272 Swivel PivotSwivel Pivot
-
4207009086 Hex Screw M10 X 90Hex Screw M10 X 90
-
5503183800 WasherWasher
-
6506150000 Washer 10 mmWasher 10 mm
-
7506151251 WasherWasher
-
8732610084 Hex Flanged Nut M10Hex Flanged Nut M10
-
9207005544 Hex Screw M10 X 55Hex Screw M10 X 55
-
10506151273 Pivot BarPivot Bar
-
11224002251 Flat WasherFlat Washer
-
12233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
13250200032 WasherWasher
-
14503175800 WasherWasher
-
15232501416 Elastic Stop Nut M10Elastic Stop Nut M10
-
16506150200 Bushing SwivelBushing Swivel
-
17506151328 Swivel BarSwivel Bar
-
18207006544 Hex Screw M10 X 65Hex Screw M10 X 65
-
19250100016 LH Hex Jam Nut M10LH Hex Jam Nut M10
-
20506151810 LH Ball JointLH Ball Joint
-
21207004544 Hex Screw M10 X 45Hex Screw M10 X 45
-
22224002251 Flat WasherFlat Washer
-
23233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
24224002251 Flat WasherFlat Washer
-
25233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
26506151340 Tie-RodTie-Rod
-
27732610010 RH Hex Jam Nut M10RH Hex Jam Nut M10
-
28506151811 Ball JointBall Joint
-
29506151650 Protection CapProtection Cap
-
30506151725 RH Tie-Rod CapRH Tie-Rod Cap
-
30506151726 LH Tie-Rod CapLH Tie-Rod Cap
-
31506151356 RH Retainer RingRH Retainer Ring
-
31506151357 LH Retainer RingLH Retainer Ring
-
32390909100 Avex RivetAvex Rivet
-
33232501416 Elastic Stop Nut M10Elastic Stop Nut M10
-
34506151621 Ball Joint, DoubleBall Joint, Double
-
35503175800 WasherWasher
-
36506150400 Housing HalfHousing Half
-
37506150500 Housing BushingHousing Bushing
-
38503189157 WasherWasher
-
39207087044 Hex Screw M8 X 70Hex Screw M8 X 70
-
40233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
41207088044 Hex Screw M8 X 80Hex Screw M8 X 80
-
42506151140 O-RingO-Ring
-
43506151334 Main Tube. RenegadeMain Tube. Renegade
-
43506151779 Main Tube. Renegade XMain Tube. Renegade X
-
44506151330 Steering Shaft SupportSteering Shaft Support
-
45506150600 Stopper PlateStopper Plate
-
46207787044 Carriage Bolt M8 X 70Carriage Bolt M8 X 70
-
47860603700 Steering Extension. Renegade X, Includes 47 to 48Steering Extension. Renegade X, Includes 47 to 48
-
48250000074 Hex Screw With Nylon M8 X 40. Renegade XHex Screw With Nylon M8 X 40. Renegade X
-
49506151622 Steering SupportSteering Support
-
50506151196 Reinforcement. Renegade XReinforcement. Renegade X
-
50506151547 Reinforcement. RenegadeReinforcement. Renegade
-
51250000082 Hex Screw With Nylon M8 X 50. RenegadeHex Screw With Nylon M8 X 50. Renegade
-
52506151536 Pivot SupportPivot Support
-
53207182544 Hex Screw M8 X 25Hex Screw M8 X 25
-
54234081410 Flat Washer 8 mmFlat Washer 8 mm
-
55233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
56506151667 Handlebar. RenegadeHandlebar. Renegade
-
56506151782 Handlebar. Renegade XHandlebar. Renegade X
-
57506151716 Handle Grip. RenegadeHandle Grip. Renegade
-
57506151733 Handle Grip. Renegade XHandle Grip. Renegade X
-
58506151839 Wedge Lock. Renegade XWedge Lock. Renegade X
-
59506151837 Short J-hook. Renegade XShort J-hook. Renegade X
-
60250200039 Flat Washer. Renegade XFlat Washer. Renegade X
-
61207067084 Hex Screw M6 X 70. Renegade XHex Screw M6 X 70. Renegade X
-
62506151660 Cap. Renegade, Includes 62 to 63Cap. Renegade, Includes 62 to 63
-
63517302785 Clip. RenegadeClip. Renegade
-
64506151889 Steering Pad. Renegade XSteering Pad. Renegade X
-
65415095500 Tie-DownTie-Down
-
66415090200 GripGrip
-
67506151792 Support Plate, BlackSupport Plate, Black
-
68207662084 Hex Flanged Screw M6 X 20Hex Flanged Screw M6 X 20
-
69234061410 Flat Washer 6 mmFlat Washer 6 mm
-
70232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
71408200700 Grease FittingGrease Fitting
-
72413711500 Synthetic GreaseSynthetic Grease
-
73516001750 Haut/Up DecalHaut/Up Decal
-
74415040700 Horn, EuropeHorn, Europe
