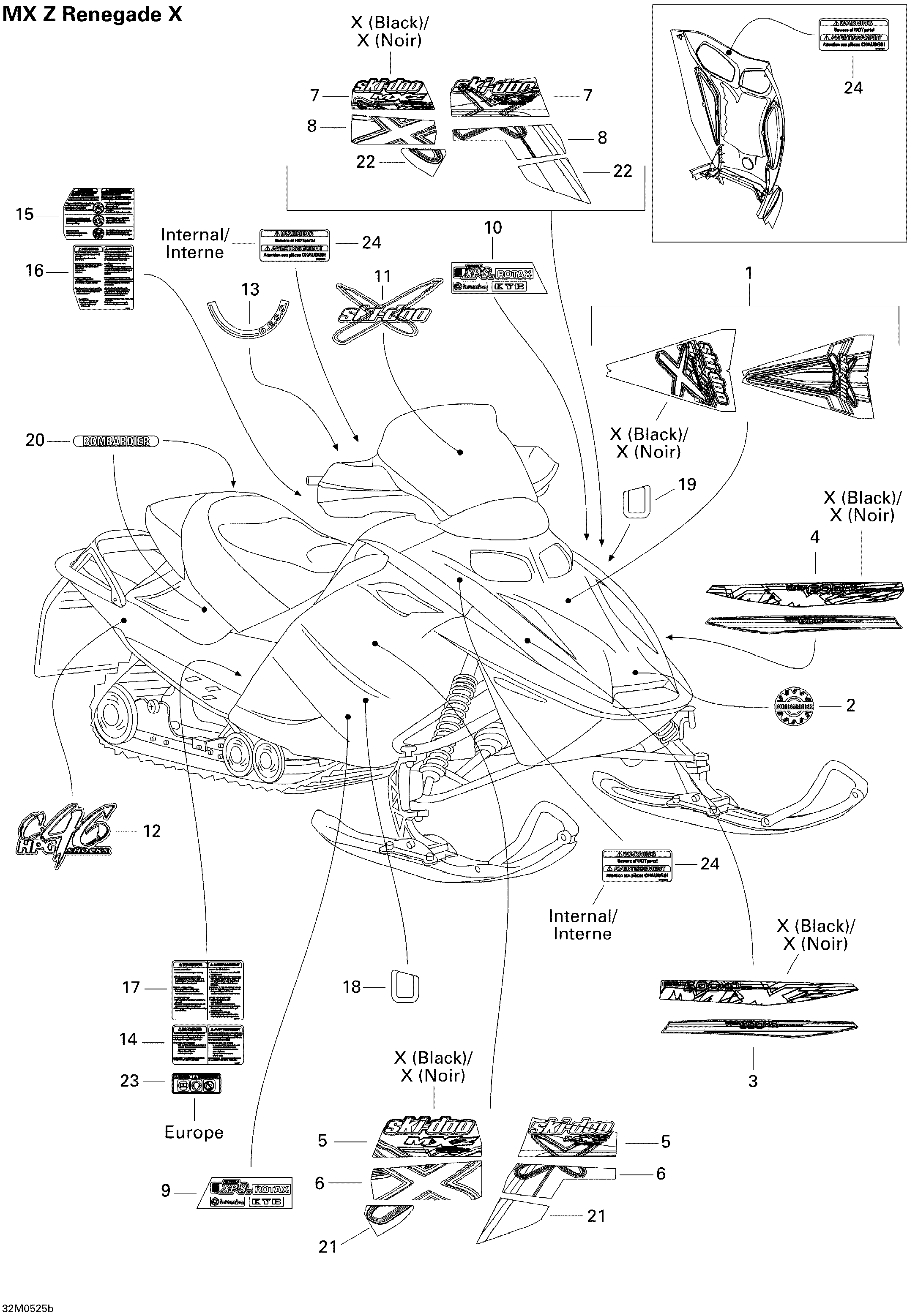

09- Decals Renegade X для BRP Ski-Doo MX Z 600 HO SDI Renegade & Renegade X - 2005
-
№АртикулНазвание
-
1516002443 Hood Decal. Black, B-160Hood Decal. Black, B-160
-
1516002445 Hood Decal. Yellow, B-190Hood Decal. Yellow, B-190
-
1516002445 Hood Decal. Viper Red, B-176Hood Decal. Viper Red, B-176
-
2516000983 Logo «bombardier»Logo «bombardier»
-
3516002269 RH Hood Decal, 600 H.o. SDI. Black, B-160RH Hood Decal, 600 H.o. SDI. Black, B-160
-
3516002466 RH Hood Decal, 600 H.o. SDI. Yellow, B-190RH Hood Decal, 600 H.o. SDI. Yellow, B-190
-
3516002466 RH Hood Decal, 600 H.o. SDI. Viper Red, B-176RH Hood Decal, 600 H.o. SDI. Viper Red, B-176
-
4516002270 LH Hood Decal, 600 H.o. SDI. Black, B-160LH Hood Decal, 600 H.o. SDI. Black, B-160
-
4516002467 LH Hood Decal, 600 H.o. SDI. Yellow, B-190LH Hood Decal, 600 H.o. SDI. Yellow, B-190
-
4516002467 LH Hood Decal, 600 H.o. SDI. Viper Red, B-176LH Hood Decal, 600 H.o. SDI. Viper Red, B-176
-
5516002448 RH Side Decal. Black, B-160RH Side Decal. Black, B-160
-
5516002452 RH Side Decal. Yellow, B-190RH Side Decal. Yellow, B-190
-
5516002452 RH Side Decal. Viper Red, B-176RH Side Decal. Viper Red, B-176
-
6516002454 RH Lower Side Decal. Black, B-160RH Lower Side Decal. Black, B-160
-
6516002456 RH Lower Side Decal. Yellow, B-190RH Lower Side Decal. Yellow, B-190
-
6516002456 RH Lower Side Decal. Viper Red, B-176RH Lower Side Decal. Viper Red, B-176
-
7516002449 LH Side Decal. Black, B-160LH Side Decal. Black, B-160
-
7516002453 LH Side Decal. Yellow, B-190LH Side Decal. Yellow, B-190
-
7516002453 LH Side Decal. Viper Red, B-176LH Side Decal. Viper Red, B-176
-
8516002455 LH Lower Side Decal. Black, B-160LH Lower Side Decal. Black, B-160
-
8516002457 LH Lower Side Decal. Yellow, B-190LH Lower Side Decal. Yellow, B-190
-
8516002457 LH Lower Side Decal. Viper Red, B-176LH Lower Side Decal. Viper Red, B-176
-
9516002460 RH Sponsor Decal. Yellow, B-190RH Sponsor Decal. Yellow, B-190
-
9516002460 RH Sponsor Decal. Viper Red, B-176RH Sponsor Decal. Viper Red, B-176
-
10516002461 RH Sponsor Decal. Yellow, B-190RH Sponsor Decal. Yellow, B-190
-
10516002461 RH Sponsor Decal. Viper Red, B-176RH Sponsor Decal. Viper Red, B-176
-
11516002643 Windshield Decal. Black, B-160Windshield Decal. Black, B-160
-
11516002709 Windshield Decal. Yellow, B-190Windshield Decal. Yellow, B-190
-
11516002709 Windshield Decal. Viper Red, B-176Windshield Decal. Viper Red, B-176
-
12516001731 Suspension DecalSuspension Decal
-
13516001335 Dess DecalDess Decal
-
14516002672 Label Security, Passenger NumberLabel Security, Passenger Number
-
15516002641 Label Security, GeneralLabel Security, General
-
16516002671 Label Security, FamiliarizationLabel Security, Familiarization
-
17516002642 Label Security, StartingLabel Security, Starting
-
18516001910 RH Protector DecalRH Protector Decal
-
19516001911 LH Protector DecalLH Protector Decal
-
20516001980 Bombardier DecalBombardier Decal
-
21516002438 RH Lower Side Decal. Black, B-160RH Lower Side Decal. Black, B-160
-
21516002458 RH Lower Side Decal. Yellow, B-190RH Lower Side Decal. Yellow, B-190
-
21516002458 RH Lower Side Decal. Viper Red, B-176RH Lower Side Decal. Viper Red, B-176
-
22516002439 LH Lower Side Decal. Black, B-160LH Lower Side Decal. Black, B-160
-
22516002459 LH Lower Side Decal. Yellow, B-190LH Lower Side Decal. Yellow, B-190
-
22516002459 LH Lower Side Decal. Viper Red, B-176LH Lower Side Decal. Viper Red, B-176
-
23516002703 Decal, Europe. EuropeDecal, Europe. Europe
-
24516002664 Security LabelSecurity Label
