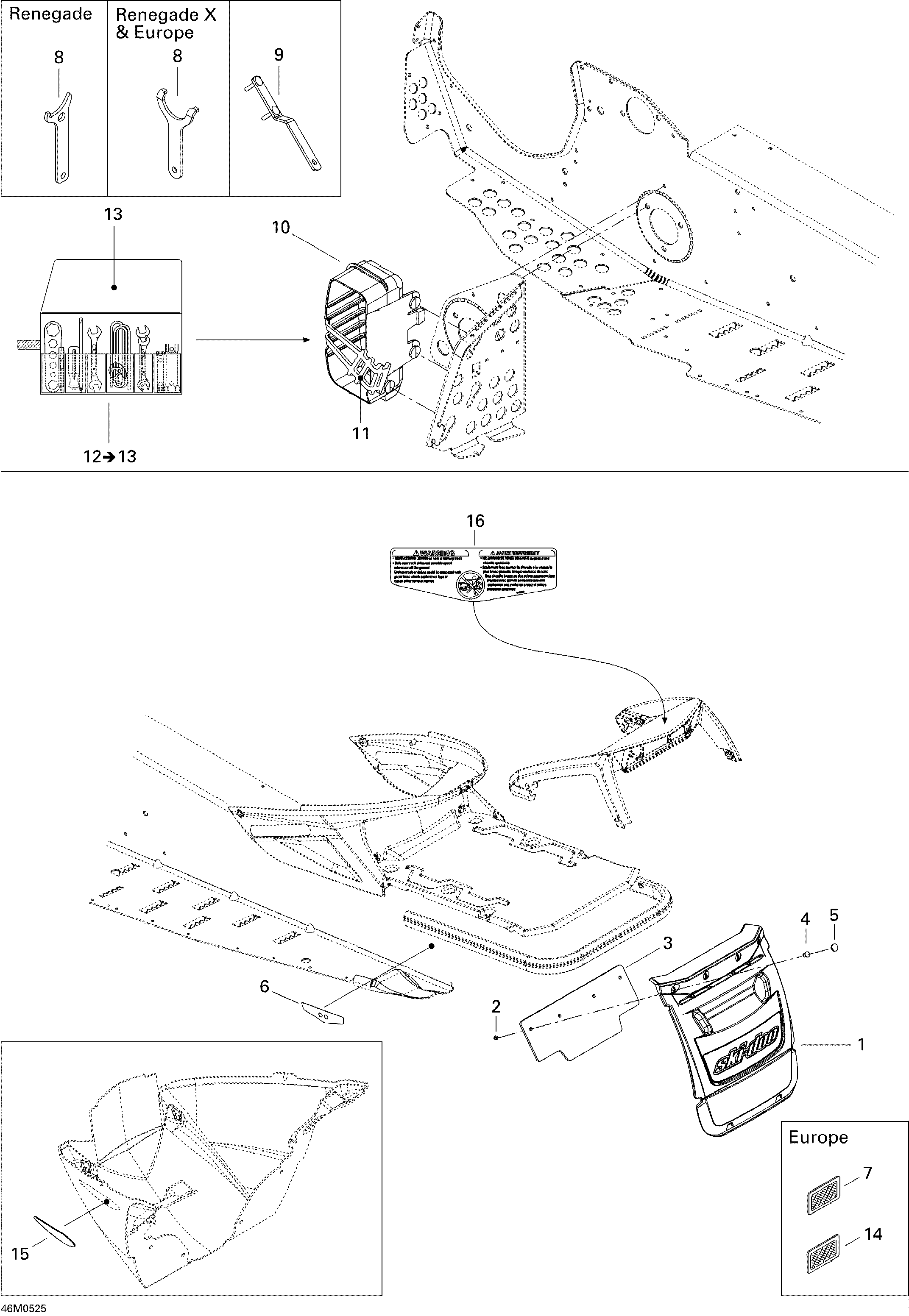

09- Utilities для BRP Ski-Doo MX Z 600 HO SDI Renegade & Renegade X - 2005
-
№АртикулНазвание
-
1520000446 Snow GuardSnow Guard
-
1520000452 Snow Guard. EuropeSnow Guard. Europe
-
2517225900 Flat WasherFlat Washer
-
3520000488 Snow Guard ReinforcementSnow Guard Reinforcement
-
4293150087 Pop Rivet 3/16''Pop Rivet 3/16''
-
5277000203 Cap (Black)Cap (Black)
-
6520000382 Rear ReflectorRear Reflector
-
6520000383 Rear Reflector. EuropeRear Reflector. Europe
-
7520000271 Reflector Amber (Europe). EuropeReflector Amber (Europe). Europe
-
8529032900 Adjustment Wrench. RenegadeAdjustment Wrench. Renegade
-
8529035582 Adjustment Wrench. Renegade X & EuropeAdjustment Wrench. Renegade X & Europe
-
9520000126 Adjustment WrenchAdjustment Wrench
-
10520000322 TrunkTrunk
-
11570069700 LatchLatch
-
12529035596 Tool Kit. Includes 12 to 13Tool Kit. Includes 12 to 13
-
13520000047 Tool BagTool Bag
-
14415037900 White Reflector, Europe. EuropeWhite Reflector, Europe. Europe
-
15516001336 Front ReflectorFront Reflector
-
16516002832 Warning Label, TrackWarning Label, Track
