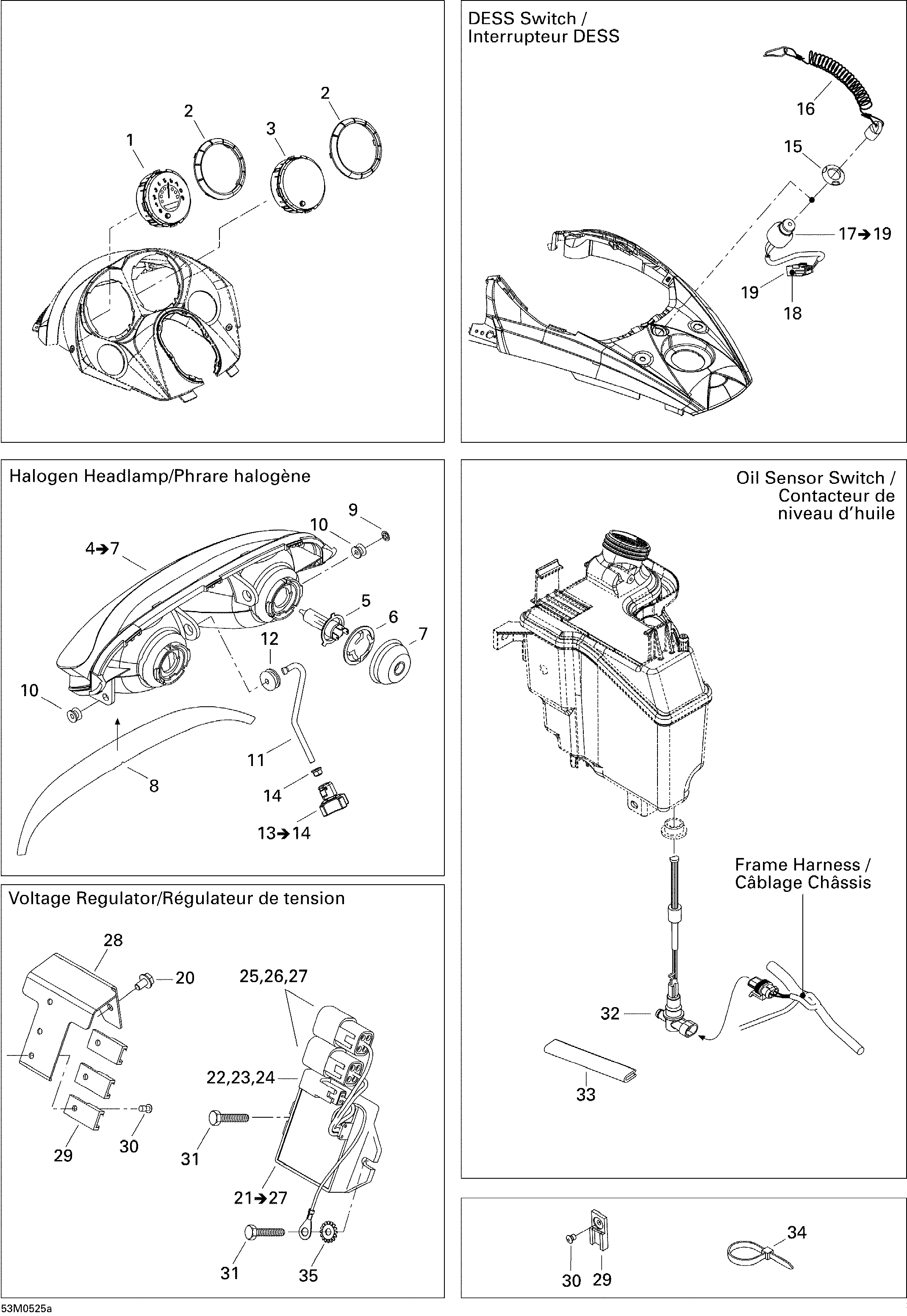

10- Electrical Accessories 1 для BRP Ski-Doo MX Z 600 HO SDI Renegade & Renegade X - 2005
-
№АртикулНазвание
-
1515176244 SpeedometerSpeedometer
-
2515176242 Gauge RingGauge Ring
-
3515176275 TachometerTachometer
-
4515176273 Halogen Headlamp Ass'y. Includes 4 to 7Halogen Headlamp Ass'y. Includes 4 to 7
-
5515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
6515175910 Bulb HolderBulb Holder
-
7515175911 CoverCover
-
8516001328 Headlamp DecalHeadlamp Decal
-
9732610072 Push NutPush Nut
-
10515175760 Headlamp BushingHeadlamp Bushing
-
11515175521 Adjuster RodAdjuster Rod
-
12415100800 GrommetGrommet
-
13515175975 Handle. Includes 13 to 14Handle. Includes 13 to 14
-
14233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
15278000508 NutNut
-
16515166900 Dess CapDess Cap
-
17515175797 Dess Switch. Includes 17 to 19Dess Switch. Includes 17 to 19
-
18515175232 Male TerminalMale Terminal
-
19515175494 Male Terminal Housing, 3 CircuitsMale Terminal Housing, 3 Circuits
-
20210261080 Hex Forming Screw M6 X 10Hex Forming Screw M6 X 10
-
21515176243 Voltage Regulator. Includes 21 to 27Voltage Regulator. Includes 21 to 27
-
22409206900 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
23278000631 Male TerminalMale Terminal
-
24409207500 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
25278000635 Female Terminal Housing, 4 CircuitsFemale Terminal Housing, 4 Circuits
-
26515175568 Male TerminalMale Terminal
-
27278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
28515176191 Housing SupportHousing Support
-
29515175917 ClipClip
-
30293150037 Rivet Avdel 3/16''Rivet Avdel 3/16''
-
31210261680 Hex Forming Screw M6 X 16Hex Forming Screw M6 X 16
-
32515176016 Oil Level SensorOil Level Sensor
-
33509000263 TrimTrim
-
34293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
35250200041 Serrated Lock Washer 6 mmSerrated Lock Washer 6 mm
