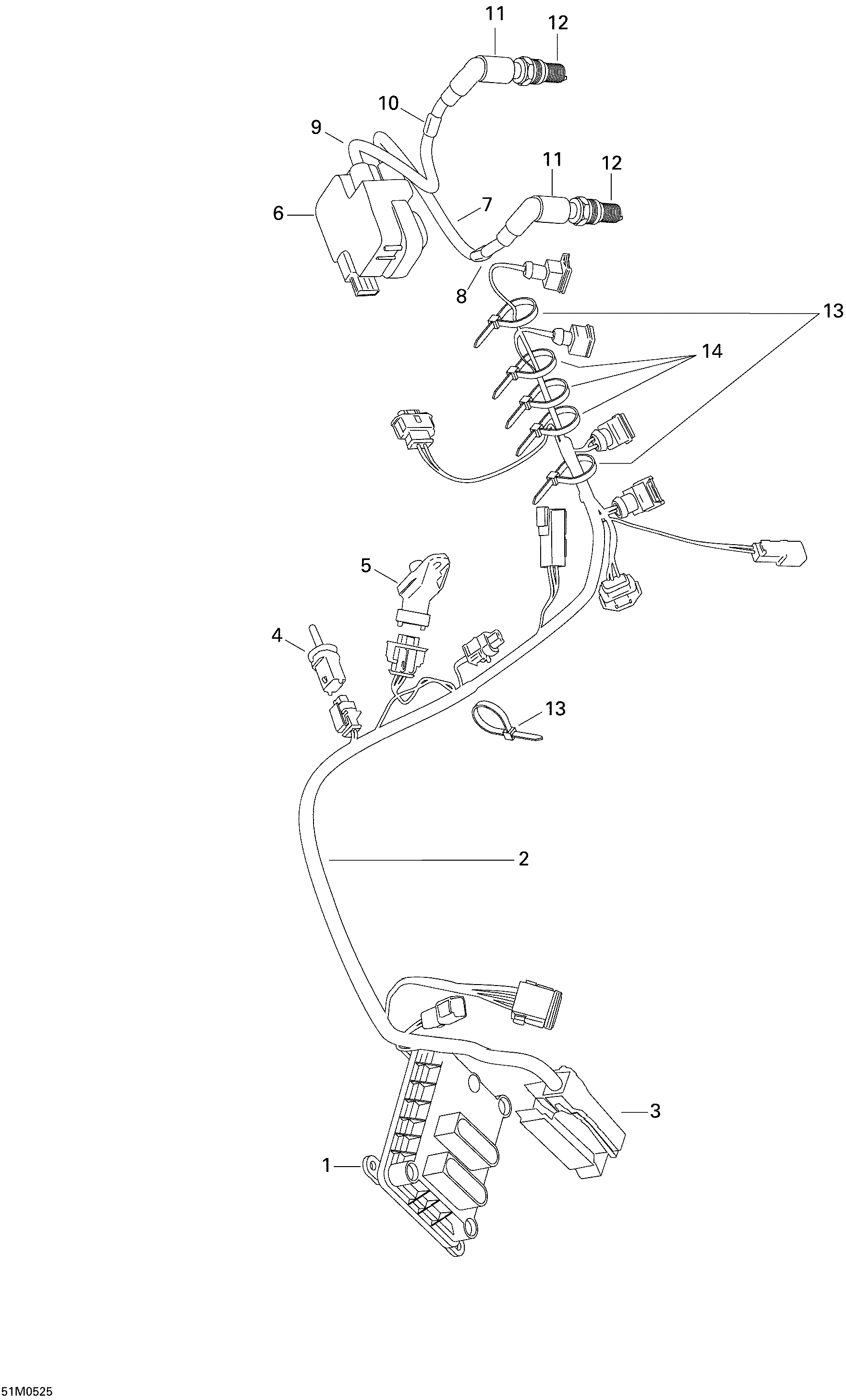

10- Engine Harness And Electronic Module для BRP Ski-Doo MX Z 600 HO SDI Renegade & Renegade X - 2005
-
№АртикулНазвание
-
1420665027 Electronic BoxElectronic Box
-
2420664317 Wiring Harness Ass'yWiring Harness Ass'y
-
3420664450 Connector HousingConnector Housing
-
4420966970 Temperature SensorTemperature Sensor
-
5420274055 Pressure SensorPressure Sensor
-
6420266070 Double Ignition CoilDouble Ignition Coil
-
7420664300 Ignition Cable (365 mm) (Mag)Ignition Cable (365 mm) (Mag)
-
8420660632 Sleeve, Mag SideSleeve, Mag Side
-
9420664307 Ignition Cable (430 mm) (PTO)Ignition Cable (430 mm) (PTO)
-
10420660630 Sleeve, PTO SideSleeve, PTO Side
-
11278000237 Spark Plug CapSpark Plug Cap
-
12415128524 Spark Plug (Br9Ecs)Spark Plug (Br9Ecs)
-
13420866714 Tie RapTie Rap
-
14420866716 Tie-RapTie-Rap
