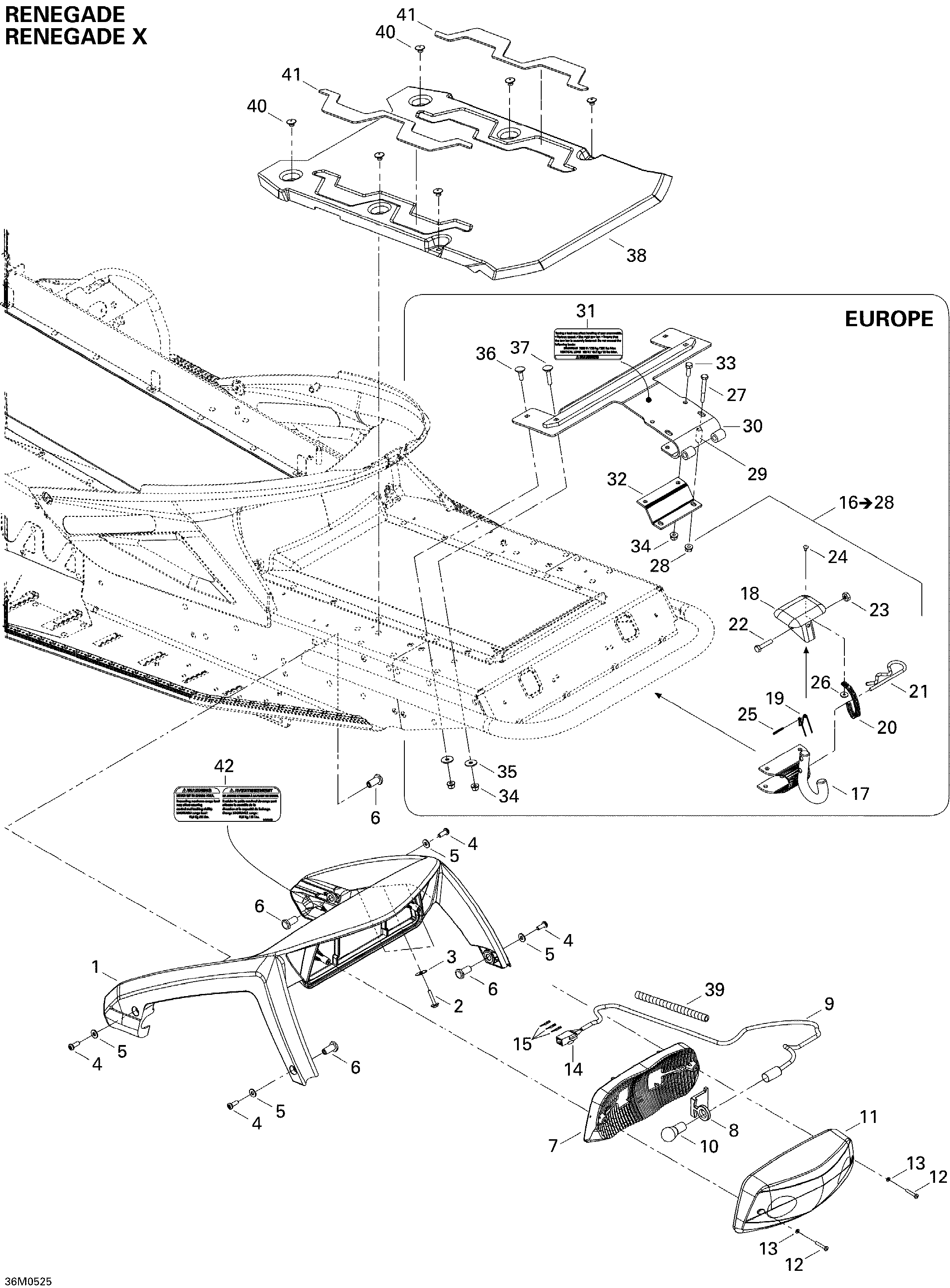

09- Luggage Rack для BRP Ski-Doo MX Z 600 HO SDI Renegade & Renegade X - 2005
-
№АртикулНазвание
-
1511000425 Luggage RackLuggage Rack
-
1511000424 Luggage Rack. EuropeLuggage Rack. Europe
-
2250000202 Self Tapping Screw #8 X 5/8Self Tapping Screw #8 X 5/8
-
3250200040 Flat WasherFlat Washer
-
4250000168 Socket Screw M6 X 16Socket Screw M6 X 16
-
5250200039 Flat WasherFlat Washer
-
6511000260 InsertInsert
-
7510004442 ReflectorReflector
-
8511000431 Bulb SupportBulb Support
-
9511000428 Bulb SocketBulb Socket
-
10410504100 Tail Lamp BulbTail Lamp Bulb
-
11511000315 LensLens
-
12209632580 Phillips Tapping Screw 3.9 X 25Phillips Tapping Screw 3.9 X 25
-
13414516400 WasherWasher
-
14515175494 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
15515175232 Male TerminalMale Terminal
-
16861789600 Hitch Ass'y Kit. Europe, Includes 16 To 28Hitch Ass'y Kit. Europe, Includes 16 To 28
-
17517199300 HitchHitch
-
18517152700 Hitch ProtectorHitch Protector
-
19517152800 SpringSpring
-
21114045200 Hair PinHair Pin
-
22207063044 Hex Screw M6 X 30Hex Screw M6 X 30
-
23232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
24390409400 Pop Rivet 5/32''Pop Rivet 5/32''
-
25732804000 Spring Pin M3 X 24Spring Pin M3 X 24
-
27207065044 Hex Screw M6 X 50Hex Screw M6 X 50
-
28233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
29517191700 SpacerSpacer
-
30511000251 FixationFixation
-
31516002685 Hitch Security LabelHitch Security Label
-
32511000022 Reinforcement. EuropeReinforcement. Europe
-
33207162044 Hex Screw M6 X 20. EuropeHex Screw M6 X 20. Europe
-
34233261414 Elastic Flanged Nut M6. EuropeElastic Flanged Nut M6. Europe
-
35224061201 Flat Washer. EuropeFlat Washer. Europe
-
36207762044 Carriage Bolt M6 X 20. EuropeCarriage Bolt M6 X 20. Europe
-
37207763044 Carriage Bolt M6 X 30. EuropeCarriage Bolt M6 X 30. Europe
-
38511000436 Radiator CoverRadiator Cover
-
38511000437 Radiator Cover. EuropeRadiator Cover. Europe
-
39515175442 Tubing (6 mm)Tubing (6 mm)
-
40293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
41511000396 CarpetCarpet
-
42516002666 Maximum Cargo Load LabelMaximum Cargo Load Label
