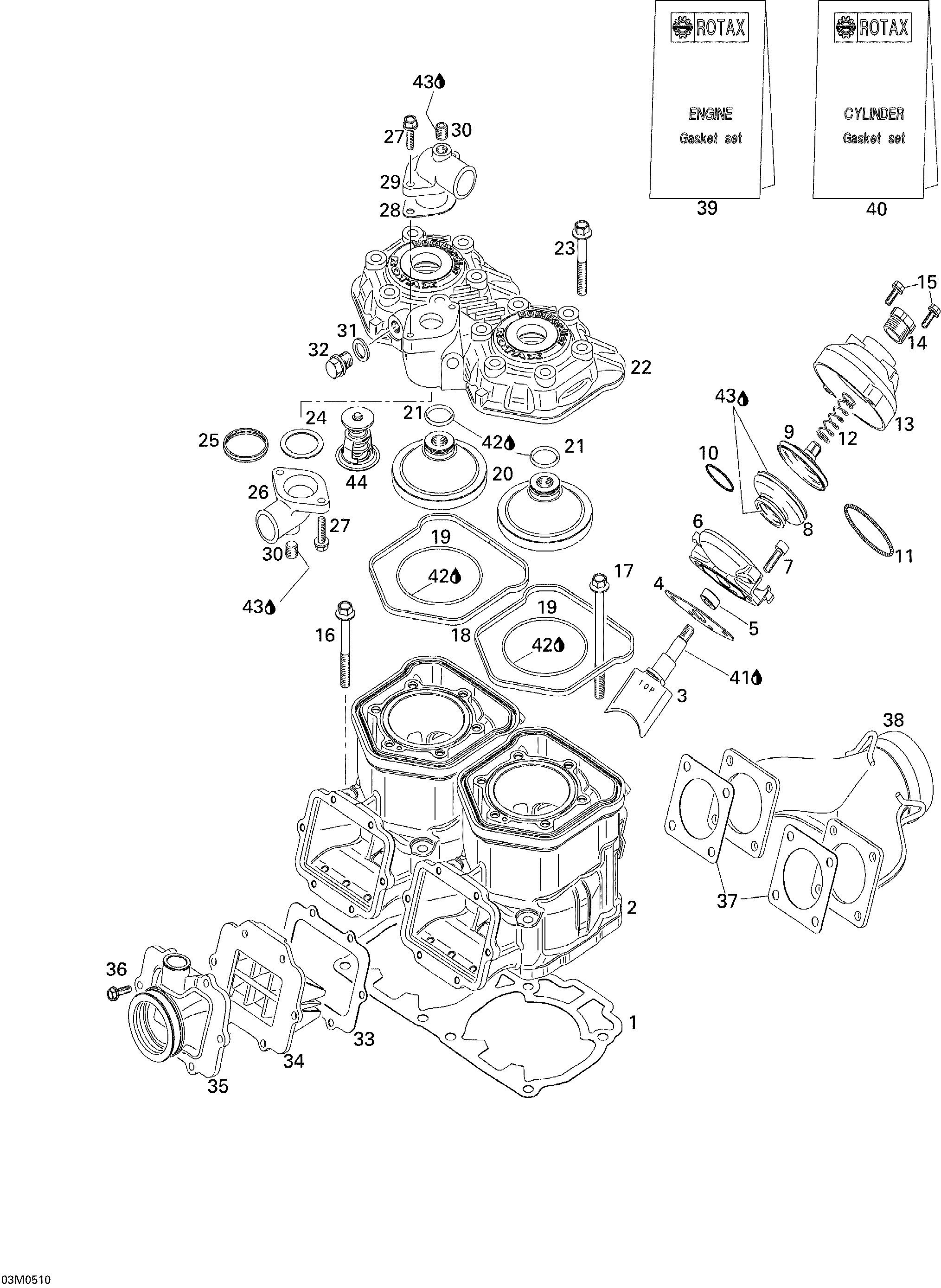

01- Cylinder And Exhaust Manifold для BRP Ski-Doo MX Z X 440 Racing - 2005
-
№АртикулНазвание
-
1420931580 Double Gasket 0,3 mmDouble Gasket 0,3 mm
-
1420931581 Double Gasket 0.4 mmDouble Gasket 0.4 mm
-
1420931582 Double Gasket 0.6 mmDouble Gasket 0.6 mm
-
1420931583 Double Gasket 0.5 mmDouble Gasket 0.5 mm
-
1420931962 Double Gasket 0.7 mmDouble Gasket 0.7 mm
-
1420931584 Double Gasket 0.8 mmDouble Gasket 0.8 mm
-
2420923720 Nicasil CylinderNicasil Cylinder
-
3420854480 ExhaustvalveExhaustvalve
-
4420250238 GasketGasket
-
5420950730 Oil SealOil Seal
-
6420854266 Valve HousingValve Housing
-
7205062044 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
8420260723 Exhaust BellowsExhaust Bellows
-
9420854449 Exhaust ValveExhaust Valve
-
10420838255 Hose SpringHose Spring
-
11420939280 Hose SpringHose Spring
-
12420239948 SpringSpring
-
13420911552 Valve CoverValve Cover
-
14420241221 Adjuster ScrewAdjuster Screw
-
15420841555 Tapping Screw M5 X 20Tapping Screw M5 X 20
-
16420640951 Hex Screw M8 X 68.5Hex Screw M8 X 68.5
-
17420940129 Screw Hex M8 X 100Screw Hex M8 X 100
-
18420931595 Square RingSquare Ring
-
19420950490 O RingO Ring
-
20420923875 Combustion ChamberCombustion Chamber
-
20420923877 Combustion Chamber. EuropeCombustion Chamber. Europe
-
21420430370 O-RingO-Ring
-
22420923734 Cylinder Head CoverCylinder Head Cover
-
23420240326 ''Screw Hex Flange M8X53''Screw Hex Flange M8X53
-
24420927745 Retaining DiskRetaining Disk
-
25420931272 Sealing RingSealing Ring
-
26420922061 Bent Outlet SocketBent Outlet Socket
-
27420941250 Hex Tapping Screw M6 X 20Hex Tapping Screw M6 X 20
-
28420850338 GasketGasket
-
29420922062 Bent Outlet SocketBent Outlet Socket
-
30420240480 Plug Screw 1/8''-27 NptPlug Screw 1/8''-27 Npt
-
31420250015 Sealing`RingSealing`Ring
-
32420841921 Plug Screw M12X1.5Plug Screw M12X1.5
-
33420630810 GasketGasket
-
34420924810 Reed ValveReed Valve
-
35420667078 Intake SocketIntake Socket
-
36420241270 Taptite Screw M5 X 25Taptite Screw M5 X 25
-
37420850552 GasketGasket
-
38420973557 ManifoldManifold
-
39420888633 Gasket Engine KitGasket Engine Kit
-
40420888637 Gasket Cylinder KitGasket Cylinder Kit
-
41420297433 Molykote G-n, 50 GMolykote G-n, 50 G
-
42413707000 Molykote 111, 150 GMolykote 111, 150 G
-
43420297906 Sealing Compound, 30 mlSealing Compound, 30 ml
-
44420922519 ThermostatThermostat
