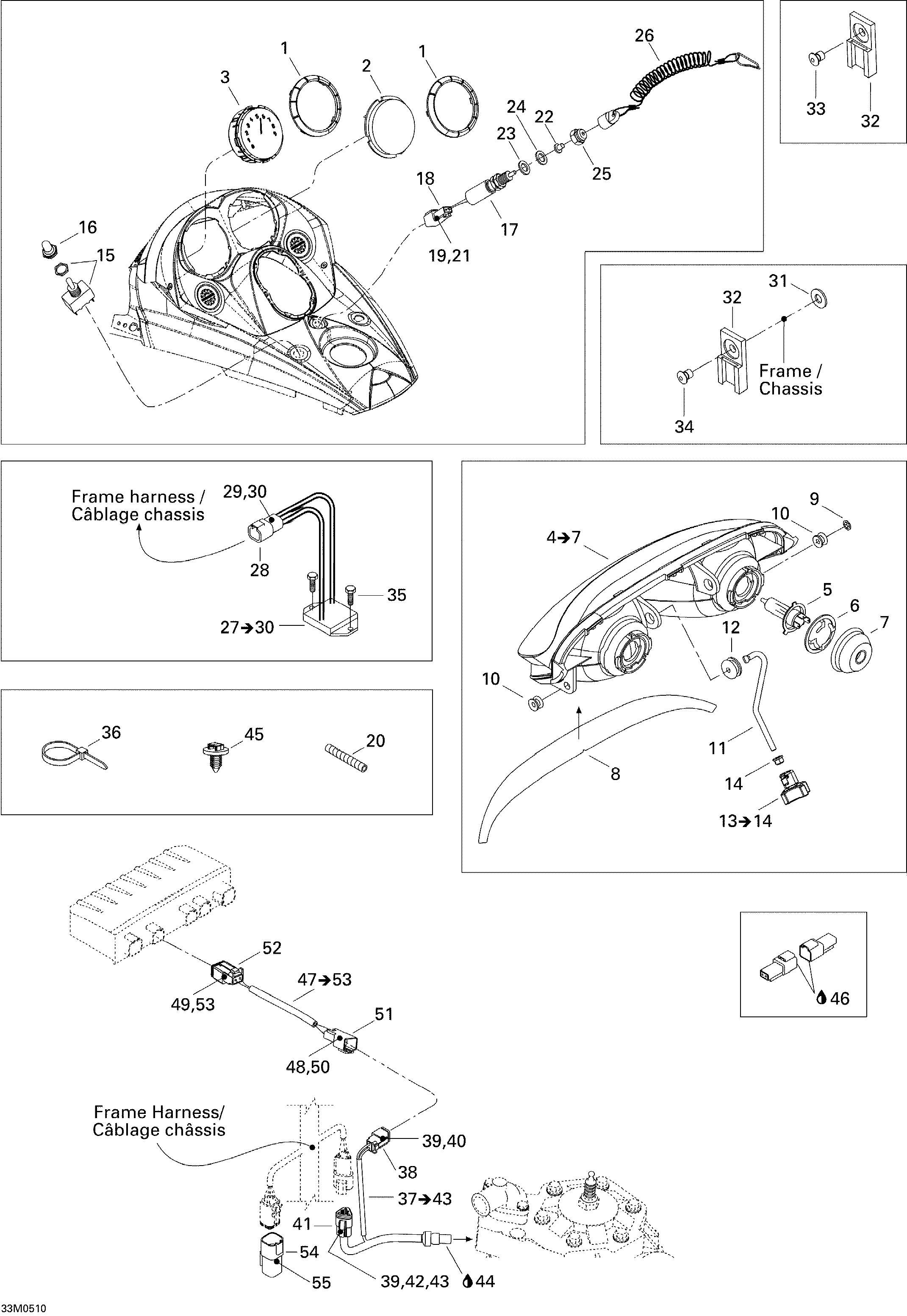

10- Electrical System для BRP Ski-Doo MX Z X 440 Racing - 2005
-
№АртикулНазвание
-
1515176242 Gauge RingGauge Ring
-
2515175901 Bottom RingBottom Ring
-
3515176265 TachometerTachometer
-
4515176273 Halogen Headlamp Ass'y. Includes 4 to 7Halogen Headlamp Ass'y. Includes 4 to 7
-
5515176274 Halogen Bulb (60/55 W, 12 V)Halogen Bulb (60/55 W, 12 V)
-
6515175910 Bulb HolderBulb Holder
-
7515175911 CoverCover
-
8516001328 Headlamp DecalHeadlamp Decal
-
9732610072 Push NutPush Nut
-
10515175760 Headlamp BushingHeadlamp Bushing
-
11515175521 Adjuster RodAdjuster Rod
-
12415100800 GrommetGrommet
-
13515175975 Handle. includes 13 to 14Handle. includes 13 to 14
-
14233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
15410107300 Switch (Heating Grip)Switch (Heating Grip)
-
16515175281 Switch CoverSwitch Cover
-
17515175653 Brake SwitchBrake Switch
-
18515175665 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
19409207500 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
20515175332 Low Temperature Tubing, VinylLow Temperature Tubing, Vinyl
-
21515175768 Male TerminalMale Terminal
-
22570151100 Plunger CapPlunger Cap
-
23250200032 WasherWasher
-
24510004418 WasherWasher
-
25415073500 Switch NutSwitch Nut
-
26515167900 Cap Assy.Cap Assy.
-
27515175655 Voltage Regulator. Includes 27 to 30Voltage Regulator. Includes 27 to 30
-
28278001477 Male Terminal Housing (4 Circuits)Male Terminal Housing (4 Circuits)
-
29515175568 Male TerminalMale Terminal
-
30278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
31517225900 Flat WasherFlat Washer
-
32515175917 ClipClip
-
33293150037 Rivet Avdel 3/16''Rivet Avdel 3/16''
-
34390410100 Pop-rivet 3/16''Pop-rivet 3/16''
-
35210261680 Hex Forming Screw M6 X 16Hex Forming Screw M6 X 16
-
36293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
37515176041 Temperature Sensor. Includes 37 to 43Temperature Sensor. Includes 37 to 43
-
38515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
39278000632 Female TerminalFemale Terminal
-
40515175675 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
41515175671 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
42278000632 Female TerminalFemale Terminal
-
43515175676 Female Lock, 3 CircuitsFemale Lock, 3 Circuits
-
44293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
45293730018 Mount DartMount Dart
-
46293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
47515175963 Temperature Harness. Includes 47 to 53Temperature Harness. Includes 47 to 53
-
48278000631 Male TerminalMale Terminal
-
49278000632 Female TerminalFemale Terminal
-
50409207500 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
51515175665 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
52515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
53515175706 Female Lock (2 Circuits)Female Lock (2 Circuits)
-
54515175668 Male Terminal Housing (6 Circuits)Male Terminal Housing (6 Circuits)
-
55293000052 Sealing CapSealing Cap
