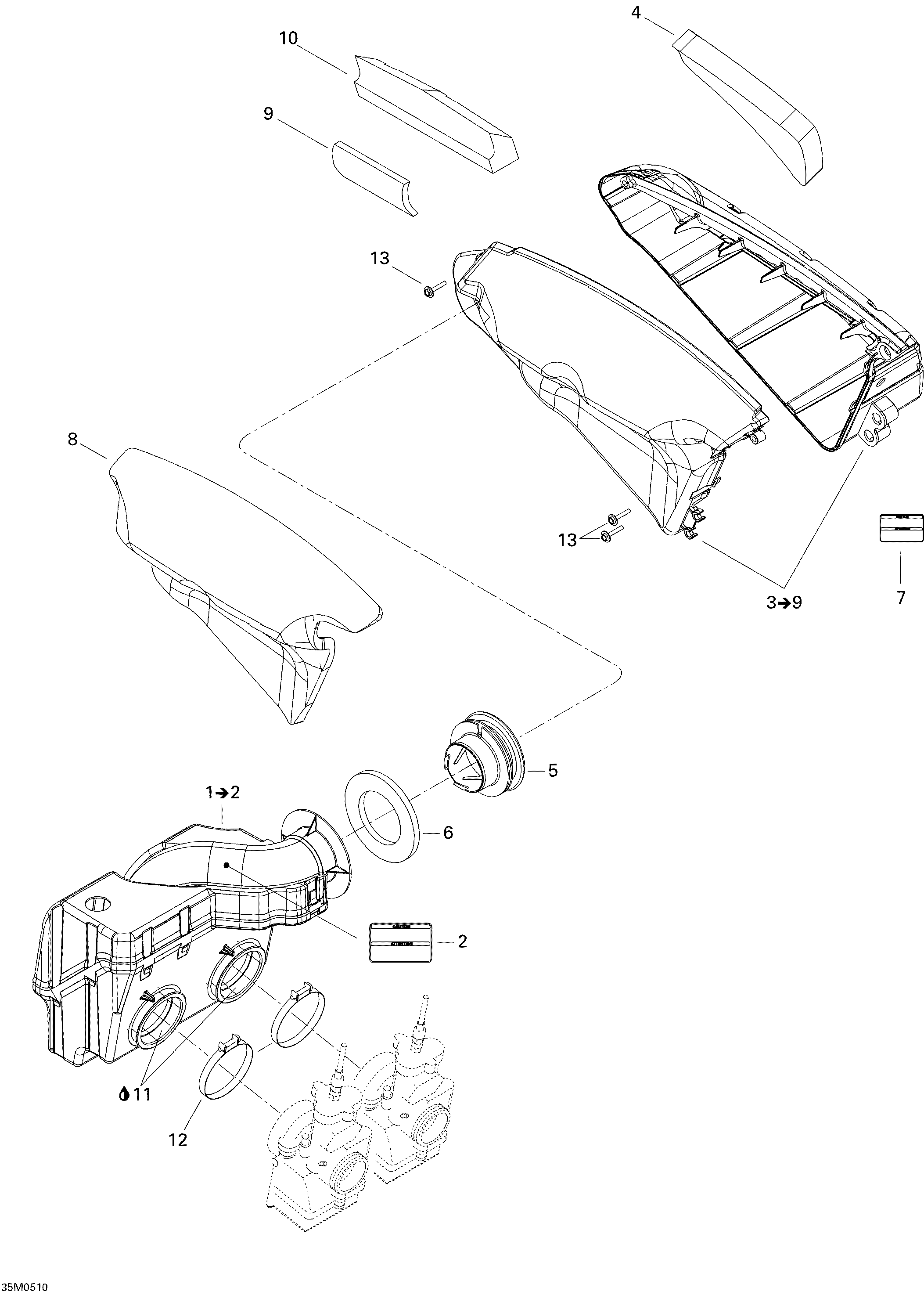

02- Air Silencer для BRP Ski-Doo MX Z X 440 Racing - 2005
-
№АртикулНазвание
-
1508000384 Primary Chamber Ass'YPrimary Chamber Ass'Y
-
2516002715 Label (air Intake Installation)Label (air Intake Installation)
-
3508000429 Secondary Chamber Ass'YSecondary Chamber Ass'Y
-
4508000145 Inner FoamInner Foam
-
5508000240 GuideGuide
-
6508000199 Outer FoamOuter Foam
-
7516002715 Label (air Intake Installation)Label (air Intake Installation)
-
8508000310 Outer FoamOuter Foam
-
9508000326 FoamFoam
-
10508000394 Air FilterAir Filter
-
11413803200 Injection Oil (205 Liters)Injection Oil (205 Liters)
-
12508000369 Gemi ClampGemi Clamp
-
13250000101 Screw M4 X 25Screw M4 X 25
