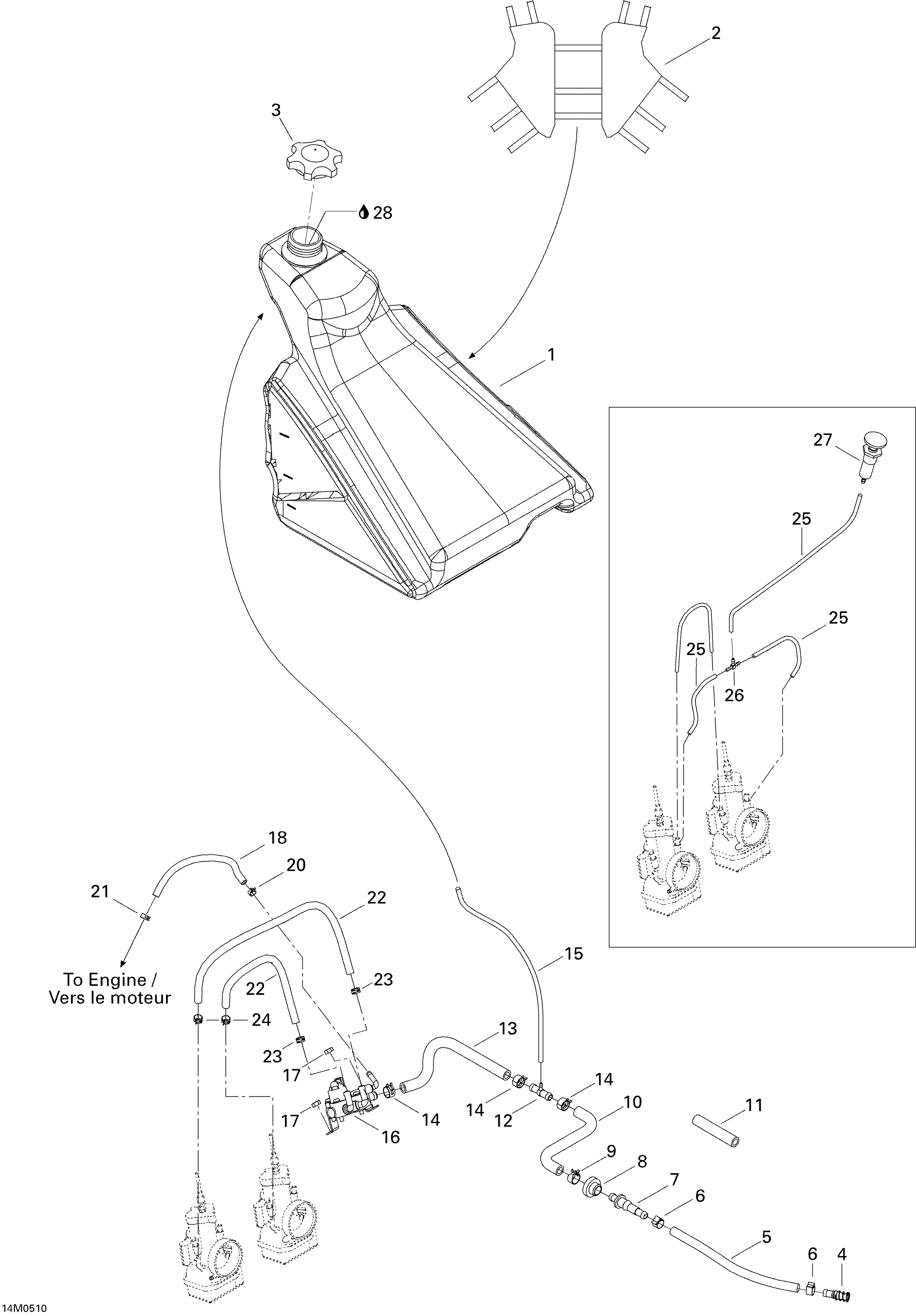

02- Fuel System для BRP Ski-Doo MX Z X 440 Racing - 2005
-
№АртикулНазвание
-
1513033099 Fuel TankFuel Tank
-
2513033075 Tank CoverTank Cover
-
3513033103 Fuel Tank CapFuel Tank Cap
-
4414872100 Fuel FilterFuel Filter
-
5415097800 Polyurethane Hose 7.6mmPolyurethane Hose 7.6mm
-
6513033010 Norma Spring ClampNorma Spring Clamp
-
7414872700 Male ConnectorMale Connector
-
8570273900 GrommetGrommet
-
9513032979 Spring ClampSpring Clamp
-
10513033072 Formed HoseFormed Hose
-
11415080000 Tubing, 16 mmTubing, 16 mm
-
12415119300 T-FittingT-Fitting
-
13513033031 Formed HoseFormed Hose
-
14513032979 Spring ClampSpring Clamp
-
15415080100 Primer LinePrimer Line
-
16403901810 Fuel PumpFuel Pump
-
17233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
18513033035 HoseHose
-
19518321954 Fastener Panel. Not ShownFastener Panel. Not Shown
-
20414415200 Spring ClampSpring Clamp
-
21513033029 Spring ClampSpring Clamp
-
22415080200 LineLine
-
23414554800 Spring ClampSpring Clamp
-
24414420700 Spring ClampSpring Clamp
-
25415080100 Primer LinePrimer Line
-
26414222400 T-FittingT-Fitting
-
27415060500 PrimerPrimer
-
28413802900 Injection Oil (12 X 1 Liter)Injection Oil (12 X 1 Liter)
-
28413803000 Injection Oil (3 X 4 Liters)Injection Oil (3 X 4 Liters)
-
28413803200 Injection Oil (205 Liters)Injection Oil (205 Liters)
