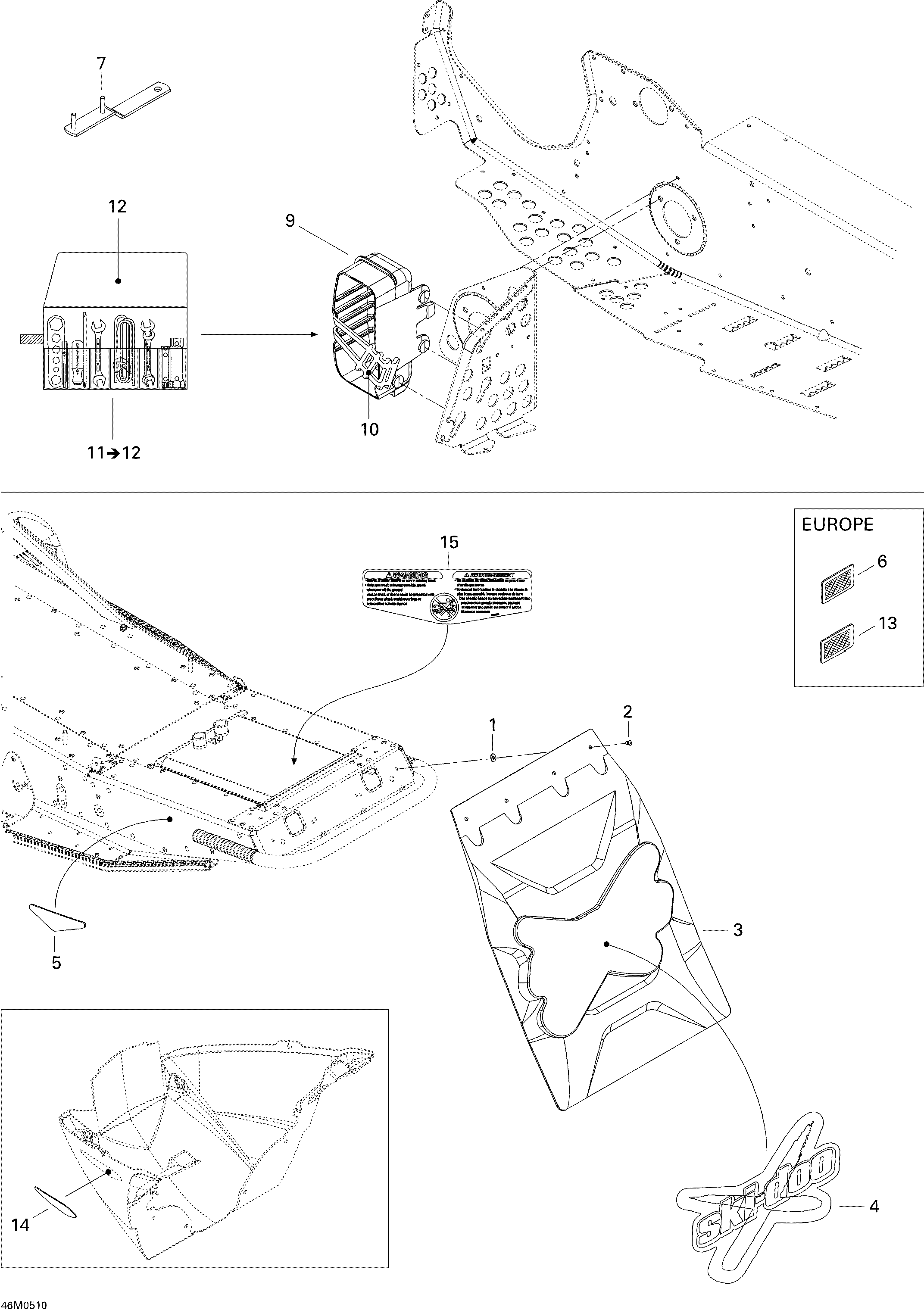

09- Utilities для BRP Ski-Doo MX Z X 440 Racing - 2005
-
№АртикулНазвание
-
1517225900 Flat WasherFlat Washer
-
2293150103 Rivet Pop 3/16''Rivet Pop 3/16''
-
3520000424 Snow FlapSnow Flap
-
4516002380 StickerSticker
-
5520000237 Rear Reflector (Red)Rear Reflector (Red)
-
5520000311 Rear Reflector (Amber). EuropeRear Reflector (Amber). Europe
-
6520000271 Reflector Amber (Europe). EuropeReflector Amber (Europe). Europe
-
7520000126 Adjustment WrenchAdjustment Wrench
-
8417126861 Tool. Not ShownTool. Not Shown
-
9520000322 TrunkTrunk
-
10570069700 LatchLatch
-
11529035596 Tool KitTool Kit
-
12520000047 Tool BagTool Bag
-
13415037900 Reflector White (Europe). EuropeReflector White (Europe). Europe
-
14516001336 Front ReflectorFront Reflector
-
15516002832 Track Security LabelTrack Security Label
