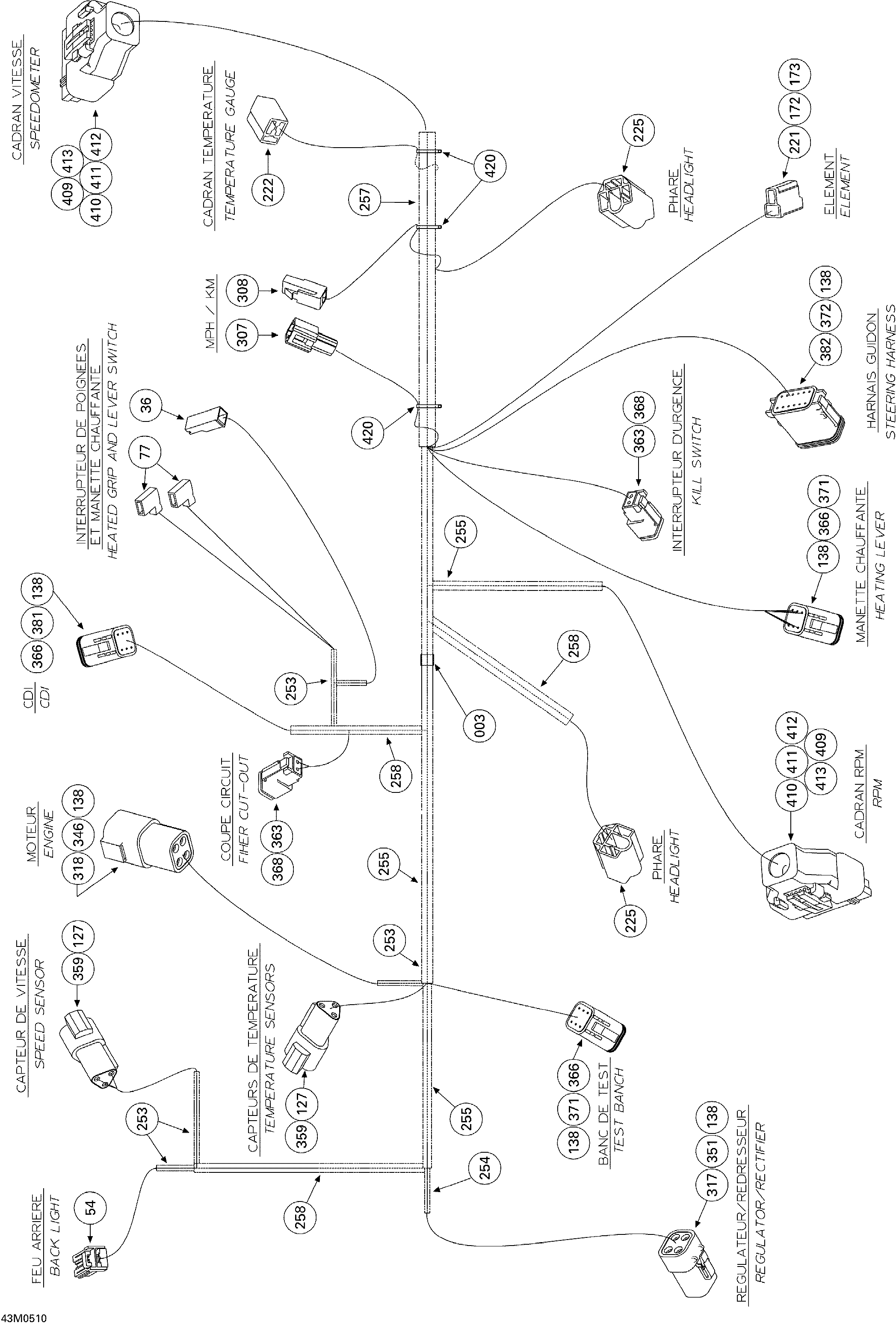

10- Electrical Harness для BRP Ski-Doo MX Z X 440 Racing - 2005
-
№АртикулНазвание
-
001515176153 Frame Harness. Includes 1 to 420Frame Harness. Includes 1 to 420
-
034409010100 Female TerminalFemale Terminal
-
036409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
042515175273 Male TerminalMale Terminal
-
044515175231 Female TerminalFemale Terminal
-
046515175282 Female TerminalFemale Terminal
-
054515175495 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
077409010300 Female TerminalFemale Terminal
-
110278000631 Male TerminalMale Terminal
-
112278000632 Female TerminalFemale Terminal
-
113278001661 Female TerminalFemale Terminal
-
127409207600 Male Lock, 3 CircuitsMale Lock, 3 Circuits
-
138293000052 Sealing CapSealing Cap
-
172561503100 Female TerminalFemale Terminal
-
221409204600 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
222409204300 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
224515175321 Female TerminalFemale Terminal
-
225409202700 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
253515175442 Tubing, 6 mmTubing, 6 mm
-
254409901700 TubingTubing
-
255409901800 Tubing, 13 mmTubing, 13 mm
-
257409901600 Tubing, 19 mmTubing, 19 mm
-
258415079900 Tubing, 10 mmTubing, 10 mm
-
307515175509 Male Terminal Housing, 1 CircuitMale Terminal Housing, 1 Circuit
-
308515175510 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
317278001473 Female Terminal Housing (4 Circuits)Female Terminal Housing (4 Circuits)
-
318278001477 Male Terminal Housing (4 Circuits)Male Terminal Housing (4 Circuits)
-
319515175568 Male TerminalMale Terminal
-
320515175567 Female TerminalFemale Terminal
-
346278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
351278001474 Female Lock (4 Circuits)Female Lock (4 Circuits)
-
359515175666 Male Terminal Housing, 3 CircuitsMale Terminal Housing, 3 Circuits
-
363515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
366515175673 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
368515175675 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
371515175678 Female Lock, 6 CircuitsFemale Lock, 6 Circuits
-
372515175679 Female Lock, 12 CircuitsFemale Lock, 12 Circuits
-
381515175705 Femele LockFemele Lock
-
382515175704 Female Terminal Housing, 12 CircuitsFemale Terminal Housing, 12 Circuits
-
409515175812 PlugPlug
-
410515175801 Female Terminal Housing, 24 CircuitsFemale Terminal Housing, 24 Circuits
-
411515175802 RetainerRetainer
-
412515175803 Wire SealWire Seal
-
413515175804 BlockBlock
-
415515175806 Female TerminalFemale Terminal
-
420414115200 Tie-Rap 180 mmTie-Rap 180 mm
