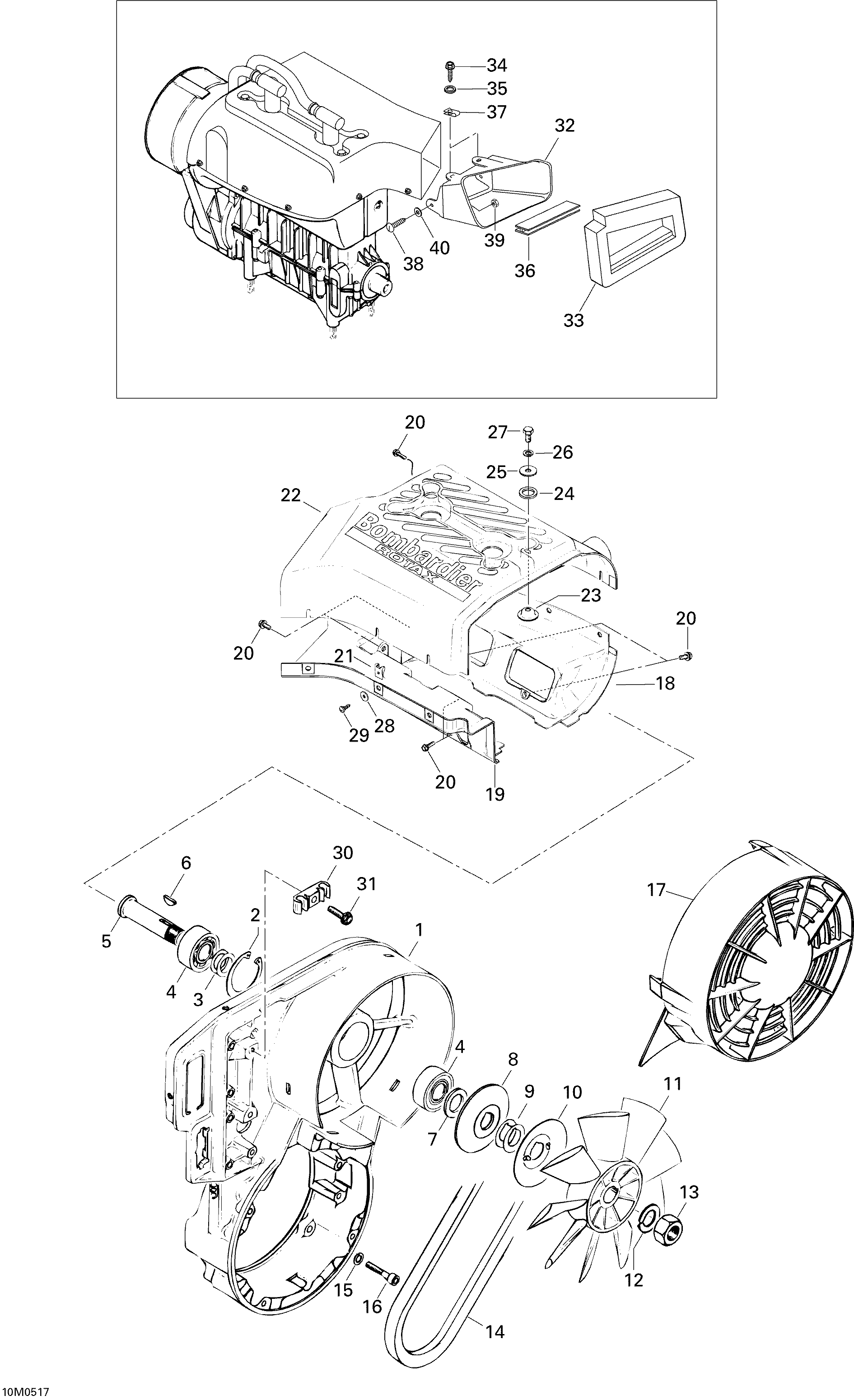

01- Cooling System для BRP Ski-Doo Skandic LT 440F - 2005
-
№АртикулНазвание
-
1420912203 Fan HousingFan Housing
-
2420945880 Lock RingLock Ring
-
3420244585 ShimShim
-
4420832161 Ball BearingBall Bearing
-
5420937940 Fan AxleFan Axle
-
6420246015 Woodruff KeyWoodruff Key
-
7420827650 Spacer BushingSpacer Bushing
-
8420980496 FlangeFlange
-
9420827080 Shim 0.5 mmShim 0.5 mm
-
9420827082 Shim 0.2 mmShim 0.2 mm
-
10420980523 Protection WasherProtection Washer
-
11420866294 FanFan
-
12420945756 Lock Washer 16 mmLock Washer 16 mm
-
13420942285 Hex Nut M16 X 1.5Hex Nut M16 X 1.5
-
14414630800 V-BeltV-Belt
-
15420945751 Lock Washer 6 mmLock Washer 6 mm
-
16205063044 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
17420975695 Fan CoverFan Cover
-
18420810764 Cylinder CowlCylinder Cowl
-
19420810792 Cylinder CowlCylinder Cowl
-
20420240580 Taptite Screw M6 X 16Taptite Screw M6 X 16
-
21417300005 Spring Nut 4.8Spring Nut 4.8
-
22420810776 Cylinder CowlCylinder Cowl
-
23420827817 Cup WasherCup Washer
-
24420960865 Rubber WasherRubber Washer
-
25420227935 WasherWasher
-
26420945752 Lock Washer 8 mmLock Washer 8 mm
-
27207181644 Hex. Screw M8 X 16Hex. Screw M8 X 16
-
28420926180 Flat WasherFlat Washer
-
29417300006 Self Tapping Screw M4.8 X 16Self Tapping Screw M4.8 X 16
-
30420860940 ClampClamp
-
31420941250 Tapping Screw M6 X 20Tapping Screw M6 X 20
-
32572083700 Outlet DuctOutlet Duct
-
33M5346202 SealSeal
-
34M40870 Hex Tapping ScrewHex Tapping Screw
-
35732900047 Serrated Lock Washer M5Serrated Lock Washer M5
-
36M5446535 FoamFoam
-
37417300005 Spring Nut 4.8Spring Nut 4.8
-
38M40247 Screw M5 X 16Screw M5 X 16
-
39M33062 Nut M5Nut M5
-
40M20008 Washer 5 mmWasher 5 mm
