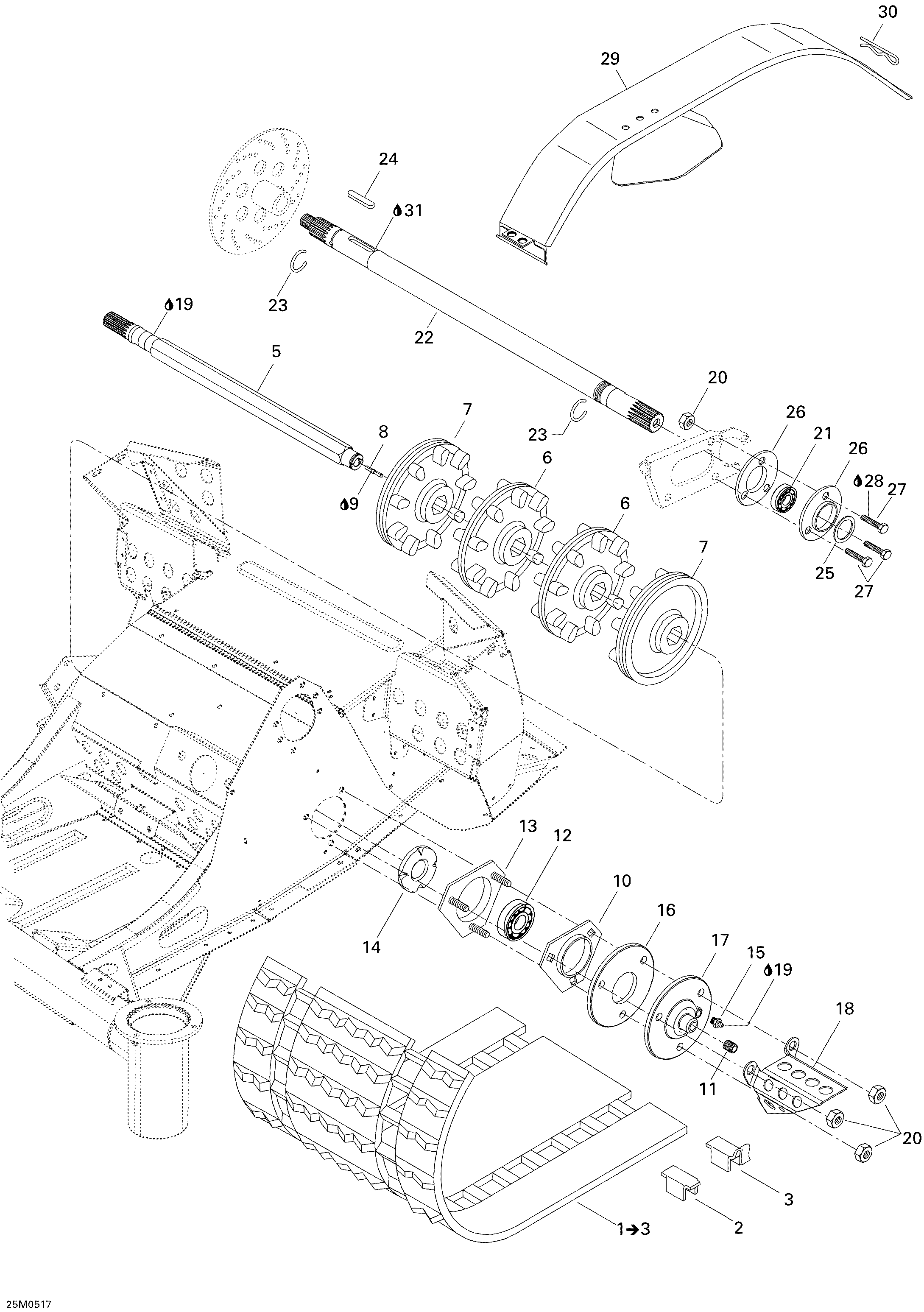

07- Drive Axle, Track And Belt Guard для BRP Ski-Doo Skandic LT 440F - 2005
-
№АртикулНазвание
-
1M13057 Track Ass'Y. Includes 1 to 3Track Ass'Y. Includes 1 to 3
-
2M5318329 CleatCleat
-
3M5318330 Cleat GuideCleat Guide
-
5M5246310 Drive AxleDrive Axle
-
6M539750 SprocketSprocket
-
7M5342920 Half SprocketHalf Sprocket
-
8M542013 NippleNipple
-
9293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
10501025000 FlangeFlange
-
11M5446614 BushingBushing
-
12504152009 Ball BearingBall Bearing
-
13504151860 Bearing HousingBearing Housing
-
14501017400 Bearing ProtectorBearing Protector
-
15M34011 Grease FittingGrease Fitting
-
16M5446641 WasherWasher
-
17504151836 Flange (Speedo Drive Insert)Flange (Speedo Drive Insert)
-
18517290100 Cable ProtectorCable Protector
-
19219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
20232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
21504152008 Ball BearingBall Bearing
-
22M5146089 Counter ShaftCounter Shaft
-
23371910000 CirclipCirclip
-
24M418740 KeyKey
-
25M548001 ShimShim
-
26M5346237 FlangeFlange
-
27M40336 Screw M8 X 20Screw M8 X 20
-
28293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
29M5145964 Belt GuardBelt Guard
-
30M5442726 PinPin
-
31293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
