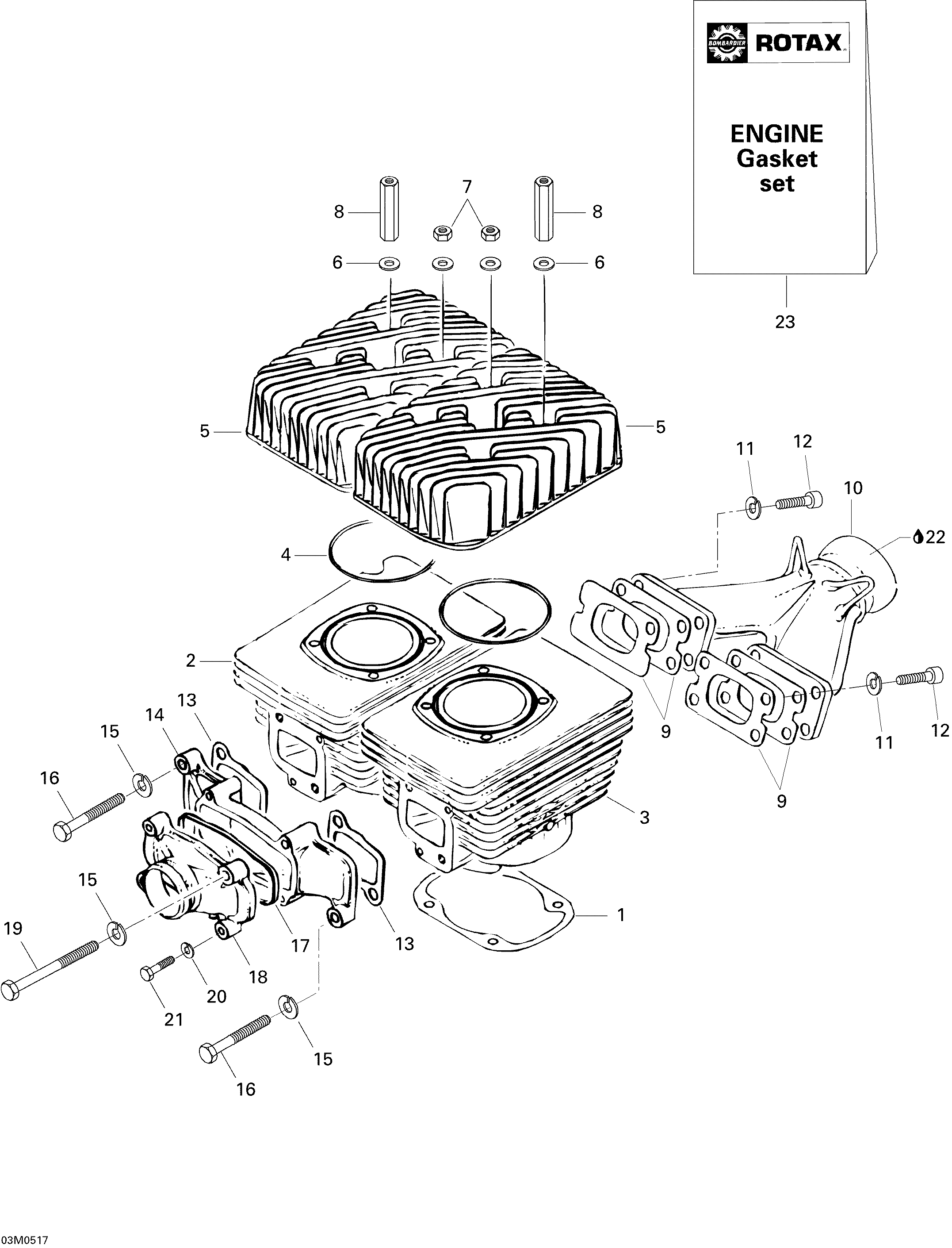

01- Cylinder and Cylinder Head, Rear Side для BRP Ski-Doo Skandic LT 440F - 2005
-
№АртикулНазвание
-
1420931780 Gasket 0.3Gasket 0.3
-
1420931781 Gasket 0.4Gasket 0.4
-
1420931782 Gasket 0.6Gasket 0.6
-
2420923791 Cylinder With Sleeve PTO SideCylinder With Sleeve PTO Side
-
3420923796 Cylinder Whit Sleeve Mag SideCylinder Whit Sleeve Mag Side
-
4420931380 O'RingO'Ring
-
5420923377 Cylinder HeadCylinder Head
-
6234081410 Flat Washer 8 mmFlat Washer 8 mm
-
7232081414 Nut M8Nut M8
-
8420842208 Distance Nut M8 X 51Distance Nut M8 X 51
-
9420850114 GasketGasket
-
10420879459 Exhaust ManifoldExhaust Manifold
-
11234181401 Lock Washer M8Lock Washer M8
-
12M40135 Socket Head Screw M8 X 30Socket Head Screw M8 X 30
-
13420831867 Intake Gasket 1.0 mmIntake Gasket 1.0 mm
-
14420867435 Intake ManifoldIntake Manifold
-
15234181401 Lock Washer M8Lock Washer M8
-
16207083544 Hex Screw M8 X 35Hex Screw M8 X 35
-
17420850190 Rubber RingRubber Ring
-
18420867442 Intake Cover-IntakeIntake Cover-Intake
-
19420841201 Hex Screw M8 X 70Hex Screw M8 X 70
-
20420945751 Lock Washer 6 mmLock Washer 6 mm
-
21207162544 Hex Screw M6 X 25Hex Screw M6 X 25
-
22293800090 Sealant, Loctite, 80 mlSealant, Loctite, 80 ml
-
23420994232 Gasket KitGasket Kit
