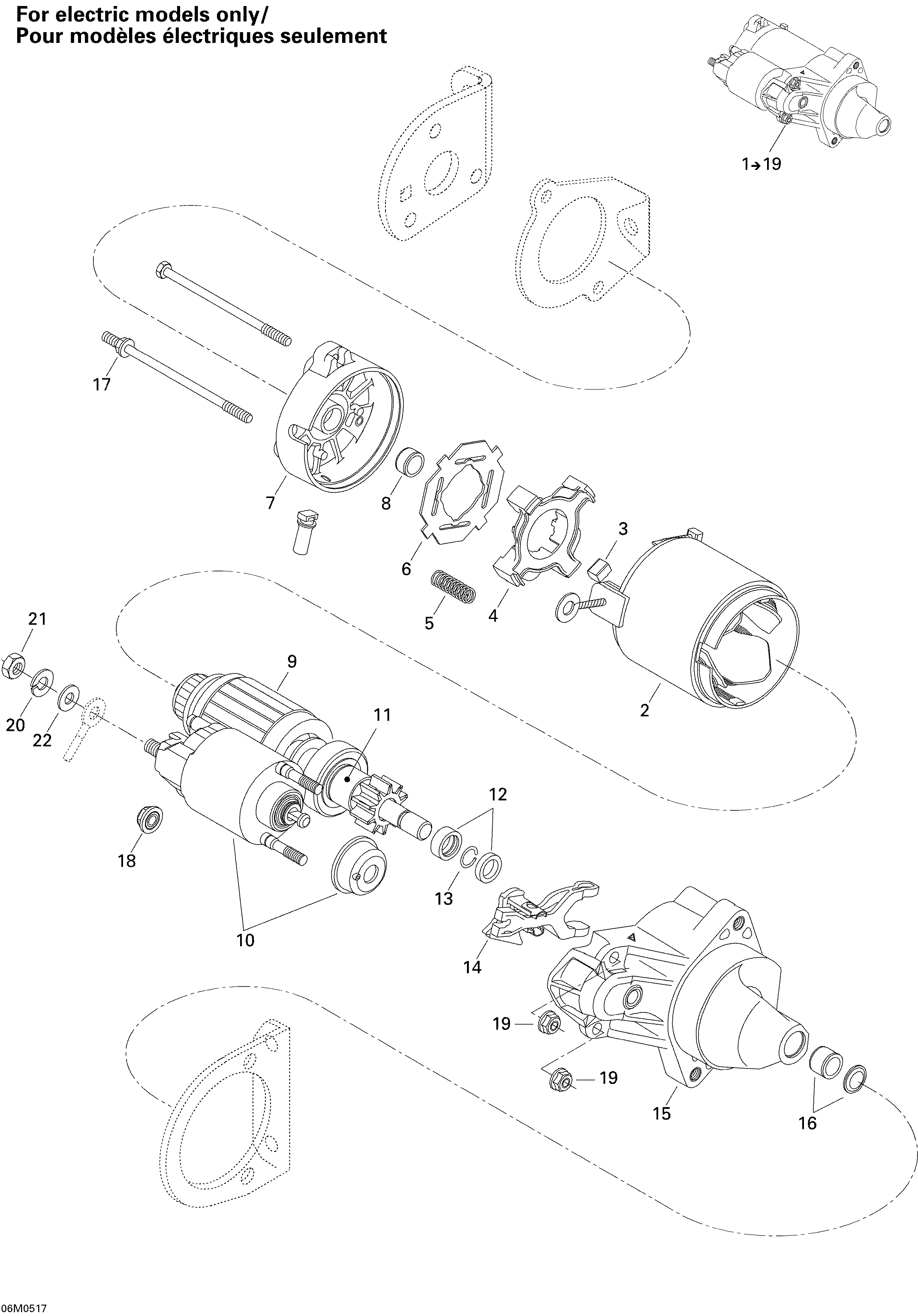

04- Electric Starter для BRP Ski-Doo Skandic LT 440F - 2005
-
№АртикулНазвание
-
1410212400 Electric Starter Ass'Y. Includes 1 to 19Electric Starter Ass'Y. Includes 1 to 19
-
2410209500 Housing StarterHousing Starter
-
3410209600 BrushBrush
-
4410209700 Brush HolderBrush Holder
-
5410209800 Brush SpringBrush Spring
-
6410209900 InsulatorInsulator
-
8410210100 Bushing-Brass BushingBushing-Brass Bushing
-
9410210200 Armature Assy.Armature Assy.
-
10410210300 Switch Assy.Switch Assy.
-
11410210400 Starter ClutchStarter Clutch
-
12410212500 NutNut
-
13410212600 CirclipCirclip
-
14410210700 LeverLever
-
15410210800 HousingHousing
-
16410210900 Brass BushingBrass Bushing
-
17410212000 BoltBolt
-
18410211100 NutNut
-
19410211200 NutNut
-
20234181401 Lock Washer M8Lock Washer M8
-
21M33003 NutNut
-
22234081410 Flat Washer 8 mmFlat Washer 8 mm
