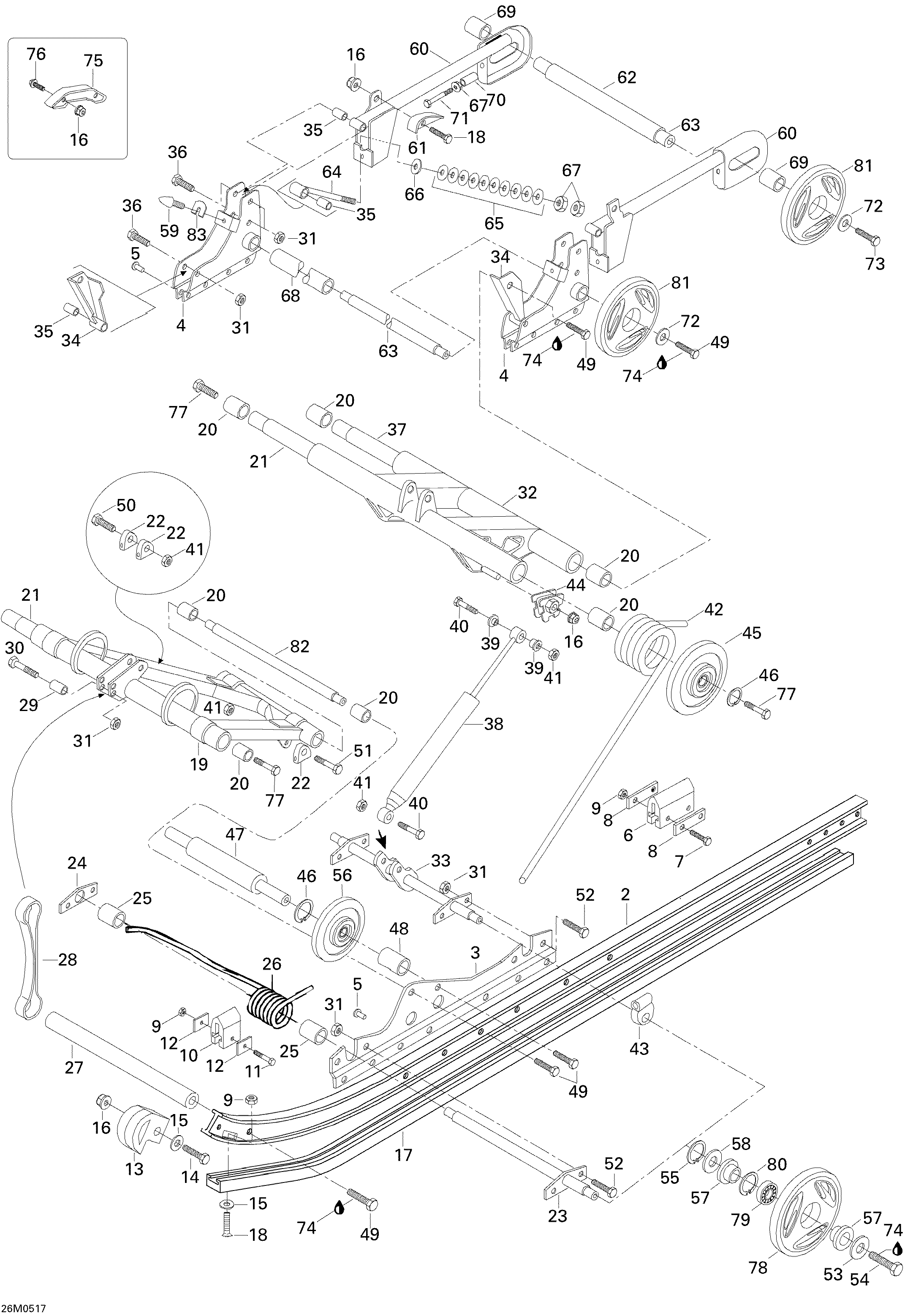

08- Rear Suspension для BRP Ski-Doo Skandic LT 440F - 2005
-
№АртикулНазвание
-
1M5142866 RH Runner Ass'Y. Includes 1 to 4RH Runner Ass'Y. Includes 1 to 4
-
1M5142865 LH Runner Ass'Y. Includes 1 to 4LH Runner Ass'Y. Includes 1 to 4
-
2M5142864 RunnerRunner
-
3M5344811 RH SupportRH Support
-
3M5344810 LH SupportLH Support
-
4M539673 RH SupportRH Support
-
4M539672 LH SupportLH Support
-
5M544212 RivetRivet
-
6570023100 Rubber StopperRubber Stopper
-
7207064044 Hex Screw M6 X 40Hex Screw M6 X 40
-
8M548387 WasherWasher
-
9232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
10M5442328 Rubber StopperRubber Stopper
-
11207063044 Hex Screw M6 X 30Hex Screw M6 X 30
-
12M548470 PlatePlate
-
13605348954 Runner ProtectorRunner Protector
-
14207162544 Hex Screw M6 X 25Hex Screw M6 X 25
-
15234061410 Flat Washer 6 mmFlat Washer 6 mm
-
16M33200 Nut M6Nut M6
-
17M549582 Runner ShoeRunner Shoe
-
18207162044 Hex Screw M6 X 20Hex Screw M6 X 20
-
19M538796 Welded Front ArmWelded Front Arm
-
20M31046 Slide BearingSlide Bearing
-
21M538945 Rear Cross ShaftRear Cross Shaft
-
22M548799 Spring SupportSpring Support
-
23M538802 AxleAxle
-
24M548469 Plate SupportPlate Support
-
25M548841 SleeveSleeve
-
26M5241177 LH SpringLH Spring
-
26M5241178 RH SpringRH Spring
-
27M546599 Cross ShaftCross Shaft
-
28M5445988 Stopper StrapStopper Strap
-
29M546065 SleeveSleeve
-
30M40122 Hex ScrewHex Screw
-
31232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
32M538801 Welded Rear ArmWelded Rear Arm
-
33M538803 ShaftShaft
-
34M5440350 RH LeverRH Lever
-
34M5440349 LH LeverLH Lever
-
35M545758 SleeveSleeve
-
36207084544 Hex Screw M8 X 45Hex Screw M8 X 45
-
37M548946 AxleAxle
-
38M23016 ShockShock
-
39M544417 CushionCushion
-
40207005044 Hex Screw M10 X 50Hex Screw M10 X 50
-
41233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
42M538806 RH SpringRH Spring
-
42M538805 LH SpringLH Spring
-
43M548804 Spring SupportSpring Support
-
44572030900 RH Adjust CamRH Adjust Cam
-
44572030800 LH Adjust CamLH Adjust Cam
-
45503189568 Wheel 165 Ass'YWheel 165 Ass'Y
-
46M31001 CirclipCirclip
-
47M5445985 Support ShaftSupport Shaft
-
48M5444098 Sleeve L=29Sleeve L=29
-
49M40335 ScrewScrew
-
50207005544 Hex Screw M10 X 55Hex Screw M10 X 55
-
51M40042 ScrewScrew
-
52207181644 Hex. Screw M8 X 16Hex. Screw M8 X 16
-
53503183100 WasherWasher
-
54M40337 Hex ScrewHex Screw
-
55M31007 CirclipCirclip
-
56503191029 Wheel 135Wheel 135
-
57503189534 CushionCushion
-
58M31091 ShimShim
-
59M535455 Rubber StopperRubber Stopper
-
60605251784 Extension Tube RHExtension Tube RH
-
60605251783 Extension Tube LHExtension Tube LH
-
61M548262 ProtectorProtector
-
62M5346739 SleeveSleeve
-
63M5445986 ShaftShaft
-
64M5440377 Eye Bolt AdjusterEye Bolt Adjuster
-
65M25004 Spring PlateSpring Plate
-
66M20011 WasherWasher
-
67232006414 Hex Nut M10Hex Nut M10
-
68M542105 Sleeve L=176Sleeve L=176
-
69M5444098 Sleeve L=29Sleeve L=29
-
70605452332 SpacerSpacer
-
71M40239 ScrewScrew
-
72503183300 WasherWasher
-
73M40050 Hex Screw With Nylon PatchHex Screw With Nylon Patch
-
74293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
75M5343191 ProtectorProtector
-
76M40064 Hex ScrewHex Screw
-
77M40314 Screw M10 X 30Screw M10 X 30
-
78503190785 Wheel 135, Yellow. Includes 78 to 80Wheel 135, Yellow. Includes 78 to 80
-
79405404500 Ball Bearing 6205Ball Bearing 6205
-
80371901700 Circlip, InteriorCirclip, Interior
-
81503190817 Wheel 165 mm YellowWheel 165 mm Yellow
-
82M548944 AxleAxle
-
83M5440645 Adjusment PlateAdjusment Plate
