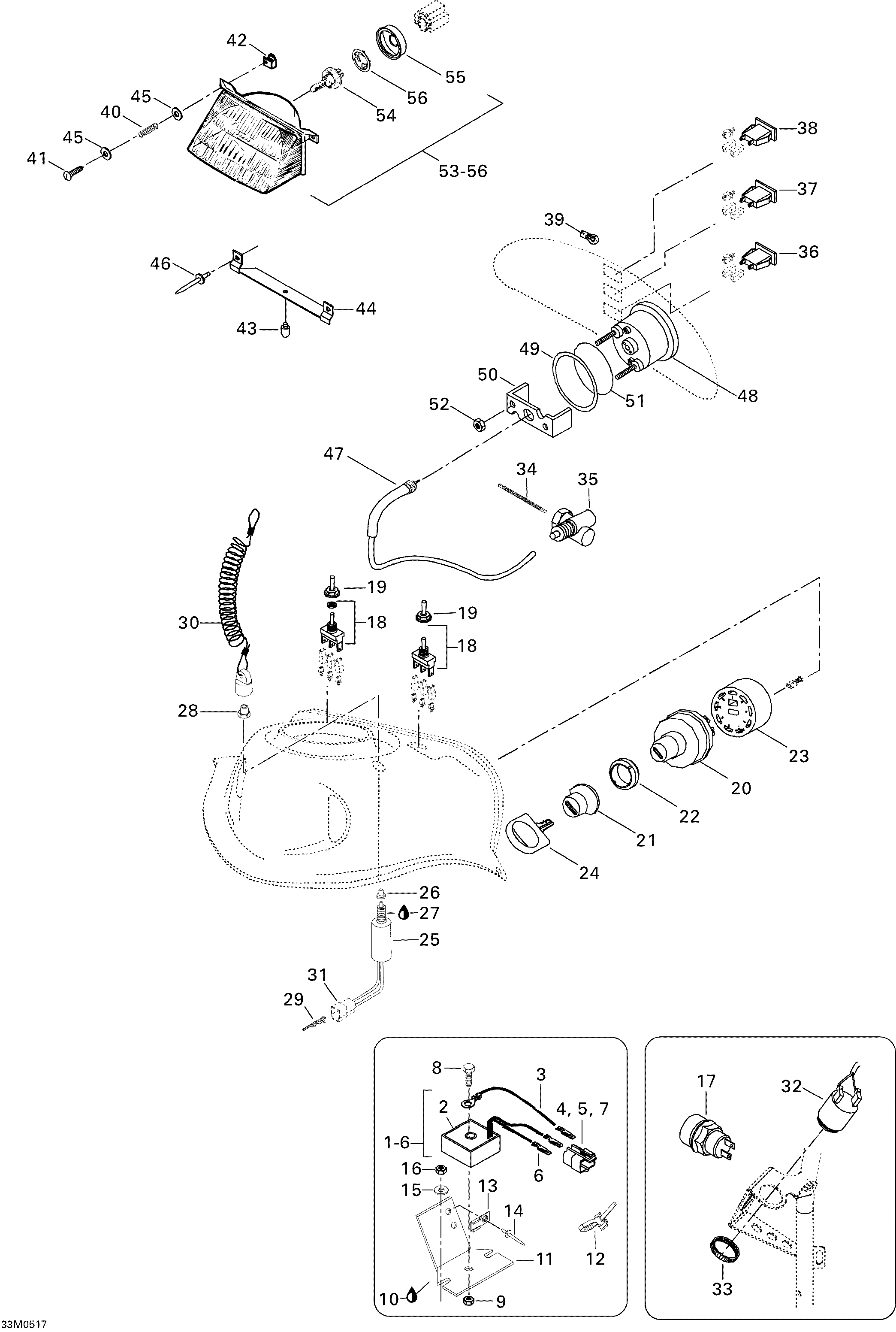

10- Electrical System для BRP Ski-Doo Skandic LT 440F - 2005
-
№АртикулНазвание
-
2515163800 Voltage RegulatorVoltage Regulator
-
4278001477 Male Terminal Housing (4 Circuits)Male Terminal Housing (4 Circuits)
-
5278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
6515175568 Male TerminalMale Terminal
-
7293000052 Sealing CapSealing Cap
-
8M40003 Hex ScrewHex Screw
-
9M33200 Nut M6Nut M6
-
10293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
11605350731 Cooling PlateCooling Plate
-
12414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
13270000141 ClipClip
-
14M36005 RivetRivet
-
15M20009 Washer 6.4 Din 9021Washer 6.4 Din 9021
-
16232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
17415101200 Reverse KnobReverse Knob
-
18410107300 Switch (Heating Grip)Switch (Heating Grip)
-
19515175281 Switch CoverSwitch Cover
-
20410113602 Ignition SwitchIgnition Switch
-
21570013700 Switch BootSwitch Boot
-
22410112100 Face NutFace Nut
-
23572150700 Female Terminal Housing (9 Circuits)Female Terminal Housing (9 Circuits)
-
24414991700 Blank KeyBlank Key
-
25515175571 Switch BrakeSwitch Brake
-
26570151100 Plunger CapPlunger Cap
-
27293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
28515145900 Switch NutSwitch Nut
-
29M42603 Male TerminalMale Terminal
-
30515151500 Cap Ass'YCap Ass'Y
-
31M42268 Male HousingMale Housing
-
32515176035 HornHorn
-
33414805101 Plastic NutPlastic Nut
-
34M45075 Square Pin-SpeedometerSquare Pin-Speedometer
-
35M35021 Drive AngleDrive Angle
-
36410113400 Pilot Lamp (Electric Reverse)Pilot Lamp (Electric Reverse)
-
37515175726 Pilot Lamp (Headlamp)Pilot Lamp (Headlamp)
-
38515175728 Pilot Lamp (Oil Level/Brake)Pilot Lamp (Oil Level/Brake)
-
39410504200 Instrumentation BulbInstrumentation Bulb
-
40517168600 SpringSpring
-
41243244040 Plastite Phillips Screw M4 X 40Plastite Phillips Screw M4 X 40
-
42572078600 Projector NutProjector Nut
-
43410608200 Rubber StopperRubber Stopper
-
44M539864 HolderHolder
-
45234051410 Flat WasherFlat Washer
-
46M36489 RivetRivet
-
47M45006 Speedometer CableSpeedometer Cable
-
48515175336 Speedometer (Mph)Speedometer (Mph)
-
48515175335 Speedometer (Kmh)Speedometer (Kmh)
-
49517258500 WasherWasher
-
50414806500 Case HolderCase Holder
-
51414807100 O-RingO-Ring
-
52M33062 Nut M5Nut M5
-
53410609300 Headlamp. Includes 53 to 56Headlamp. Includes 53 to 56
-
54410503700 Halogen Bulb 60/55 WHalogen Bulb 60/55 W
-
55410607100 Protector CapProtector Cap
-
56410608300 Bulb HolderBulb Holder
