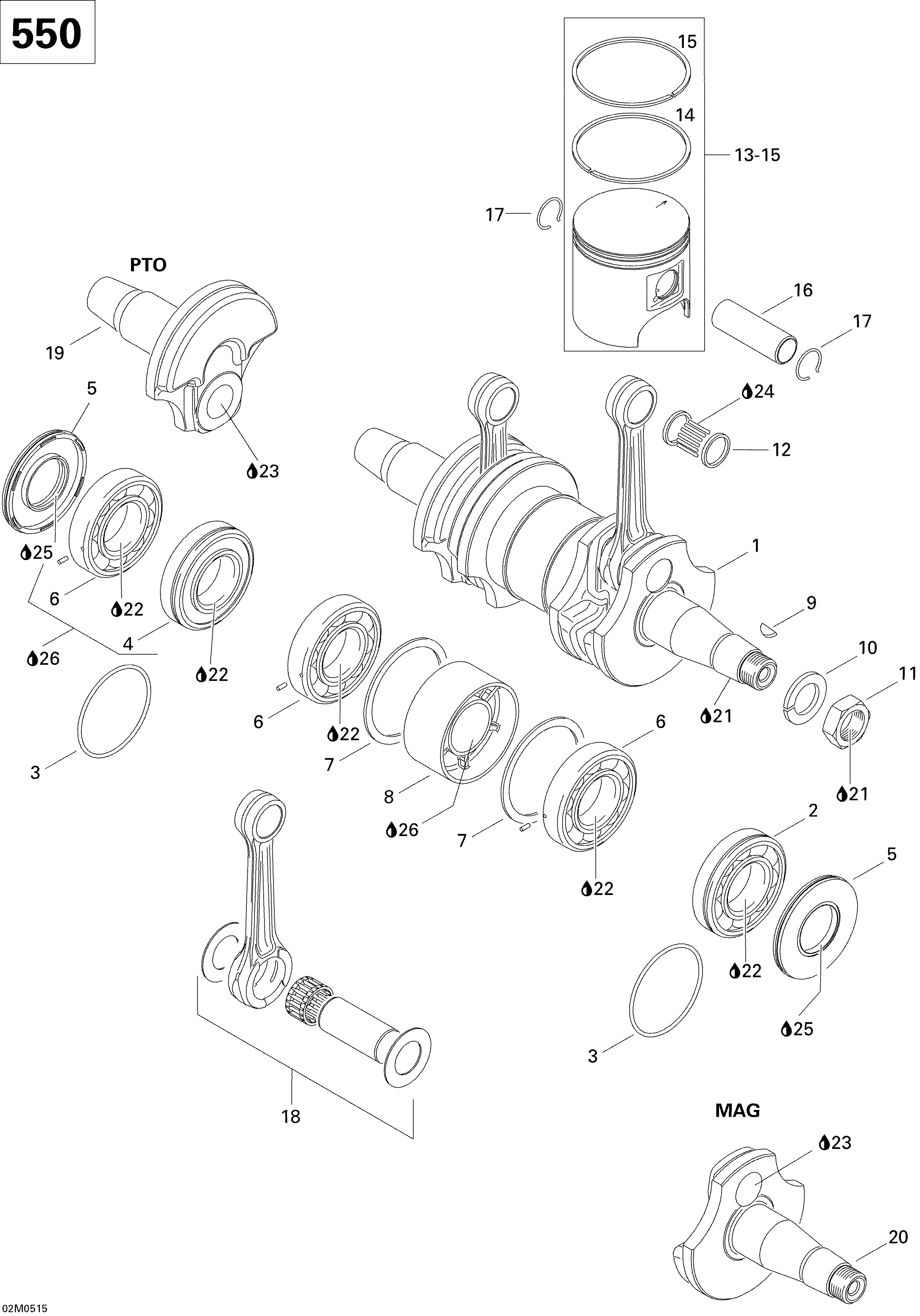

01- Crankshaft And Pistons 550 для BRP Ski-Doo Skandic SUV 550F - 2005
-
№АртикулНазвание
-
1420889062 Crankshaft. Includes 1 to 8Crankshaft. Includes 1 to 8
-
2420832571 Ball BearingBall Bearing
-
3293300022 O-Ring 64 mmO-Ring 64 mm
-
4420832639 Ball BearingBall Bearing
-
5420831952 Oil SealOil Seal
-
6420832573 Ball BearingBall Bearing
-
7420927710 Retaining DiskRetaining Disk
-
8420850149 Labyrinth SleeveLabyrinth Sleeve
-
9420246055 Woodruff KeyWoodruff Key
-
10420945759 Lock Washer M22Lock Washer M22
-
11420842234 Hex Nut M22Hex Nut M22
-
12420832420 Needle BearingNeedle Bearing
-
13420889050 Piston Assy 75.86 mm. Includes 13 to 15Piston Assy 75.86 mm. Includes 13 to 15
-
13420889051 Piston Assy 76.25 mm. Includes 13 to 15Piston Assy 76.25 mm. Includes 13 to 15
-
13420889052 Piston Assy 76.50 mm. Includes 13 to 15Piston Assy 76.50 mm. Includes 13 to 15
-
14420815300 Rectangular Ring 76 mmRectangular Ring 76 mm
-
14420815301 Rectangular Ring 76.25 mmRectangular Ring 76.25 mm
-
14420815302 Rectangular Ring 76.50 mmRectangular Ring 76.50 mm
-
15420815155 Semi-Trapez Ring 76 mm (Standard)Semi-Trapez Ring 76 mm (Standard)
-
15420815156 Semi-Trapez Ring 76.25 mm (Oversize)Semi-Trapez Ring 76.25 mm (Oversize)
-
15420815157 Semi Trapez RingSemi Trapez Ring
-
16420916405 Piston PinPiston Pin
-
17420845106 Piston CirclipPiston Circlip
-
18420889064 Rod Repair KitRod Repair Kit
-
19420819181 Crankshaft PTO SideCrankshaft PTO Side
-
20420819210 Crankshaft Mag SideCrankshaft Mag Side
-
21293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
22293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
23413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
24413802900 Injection Oil (12 X 1 Liter)Injection Oil (12 X 1 Liter)
-
25420899271 Petamo Grease, Ghy133n, 400 GPetamo Grease, Ghy133n, 400 G
-
26293550021 Isoflex Grease, 50 GIsoflex Grease, 50 G
