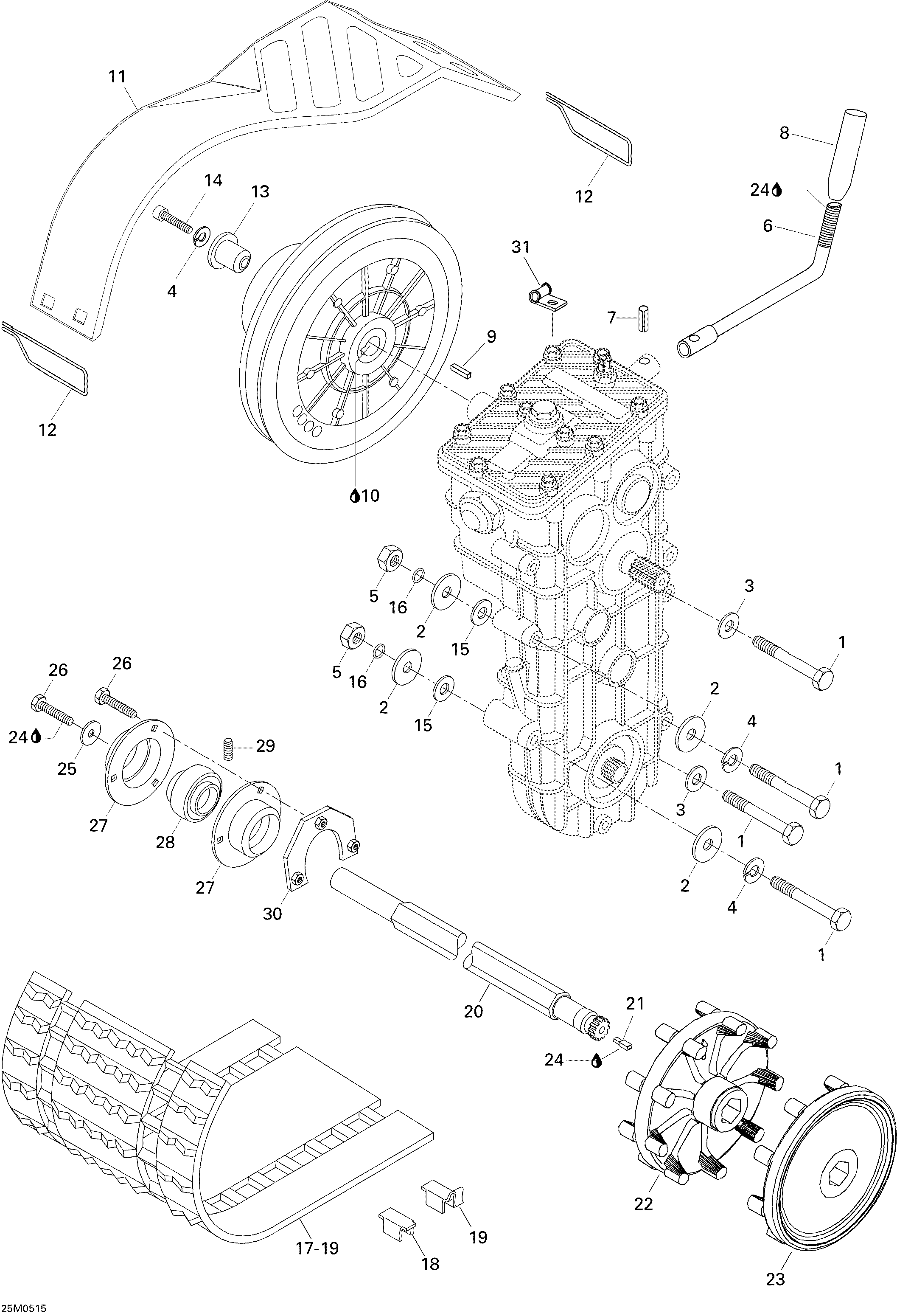

07- Drive Axle, Track And Belt Guard 550F SUV для BRP Ski-Doo Skandic SUV 550F - 2005
-
№АртикулНазвание
-
1M40012 Screw M8 X 80Screw M8 X 80
-
2M20010 WasherWasher
-
3234081410 Flat Washer 8 mmFlat Washer 8 mm
-
4234181401 Lock Washer M8Lock Washer M8
-
5232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
6M5340902 Arm ShifterArm Shifter
-
7M41008 Pin Spring. 550 SUVPin Spring. 550 SUV
-
8M28247 Arm Shifter BallArm Shifter Ball
-
9M418763 KeyKey
-
10293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
11605150015 Belt Guard. 550 SUVBelt Guard. 550 SUV
-
12M5442726 PinPin
-
13M5443201 Shaft ExtensionShaft Extension
-
14M40286 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
15M20077 Washer. 550 SUVWasher. 550 SUV
-
16506151140 O-RingO-Ring
-
17M13070 Track Ass'Y. Includes 17 to 19Track Ass'Y. Includes 17 to 19
-
18M5318323 Guide CleatGuide Cleat
-
19M5318322 CleatCleat
-
20M5345117 Drive AxleDrive Axle
-
21M542013 NippleNipple
-
22414931800 SprocketSprocket
-
23415067400 Half SprocketHalf Sprocket
-
24293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
25M546336 WasherWasher
-
26M40336 Screw M8 X 20Screw M8 X 20
-
27M534430 Ball Bearing HousingBall Bearing Housing
-
28M31UC205 Ball Bearing. Includes 28 to 29Ball Bearing. Includes 28 to 29
-
29M10531 ScrewScrew
-
30M546421 Half RingHalf Ring
