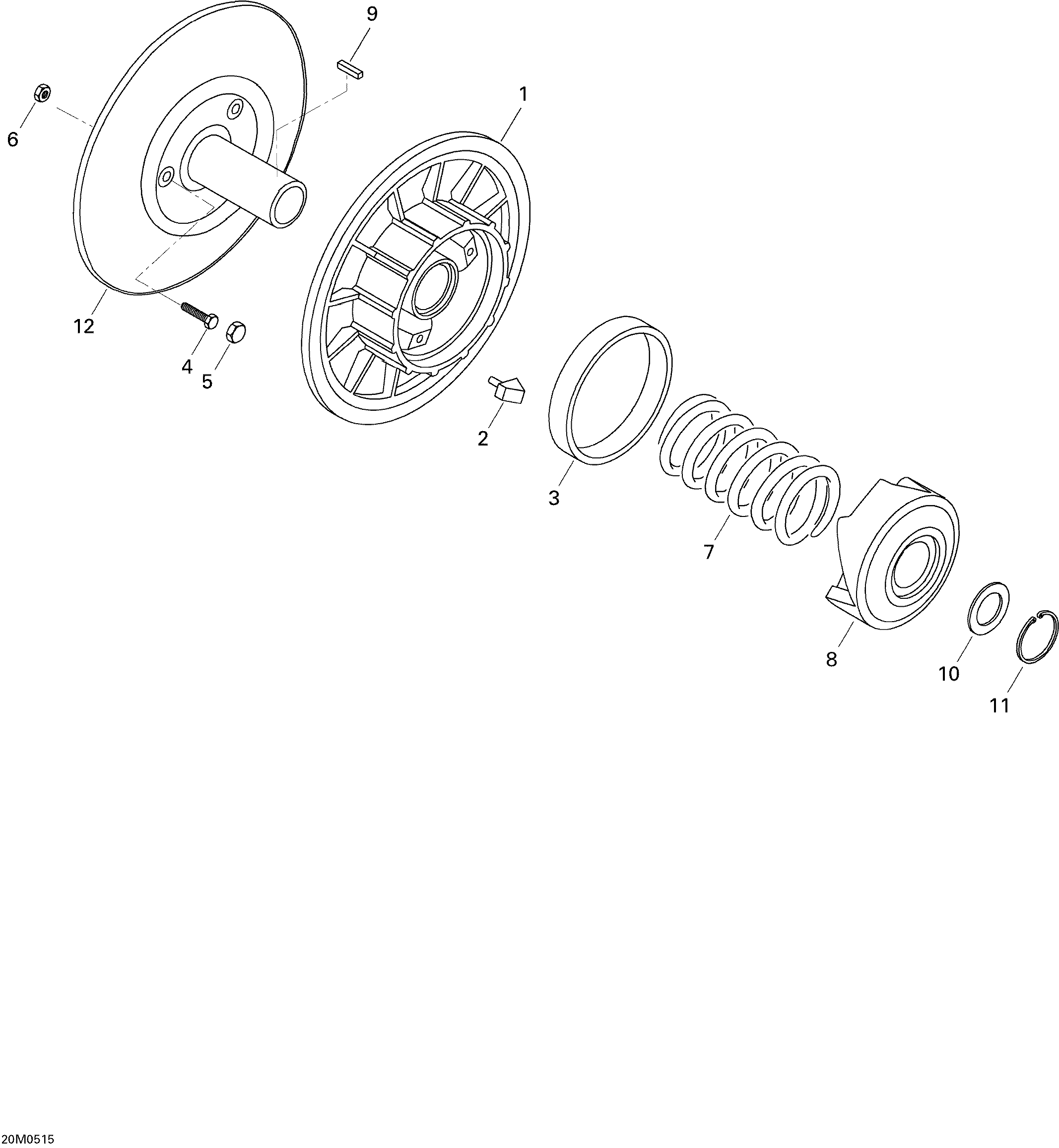

05- Driven Pulley 550F SUV для BRP Ski-Doo Skandic SUV 550F - 2005
-
№АртикулНазвание
-
1417126393 Sliding Flange Ass'y. 550 SUV, Includes 1 to 3Sliding Flange Ass'y. 550 SUV, Includes 1 to 3
-
2417212500 Shoe Cam SliderShoe Cam Slider
-
3M140005 Bushing. 550 SUVBushing. 550 SUV
-
4417118900 Hex ScrewHex Screw
-
5417119600 Plastic CapPlastic Cap
-
6417119000 NutNut
-
7417119100 Release SpringRelease Spring
-
8M140049 Cam 40/35. 550 SUVCam 40/35. 550 SUV
-
9417119400 KeyKey
-
10417117000 ShimShim
-
10417114900 ShimShim
-
11371903100 CirclipCirclip
-
12417126310 Fixed Flange Machined. 550 SUVFixed Flange Machined. 550 SUV
