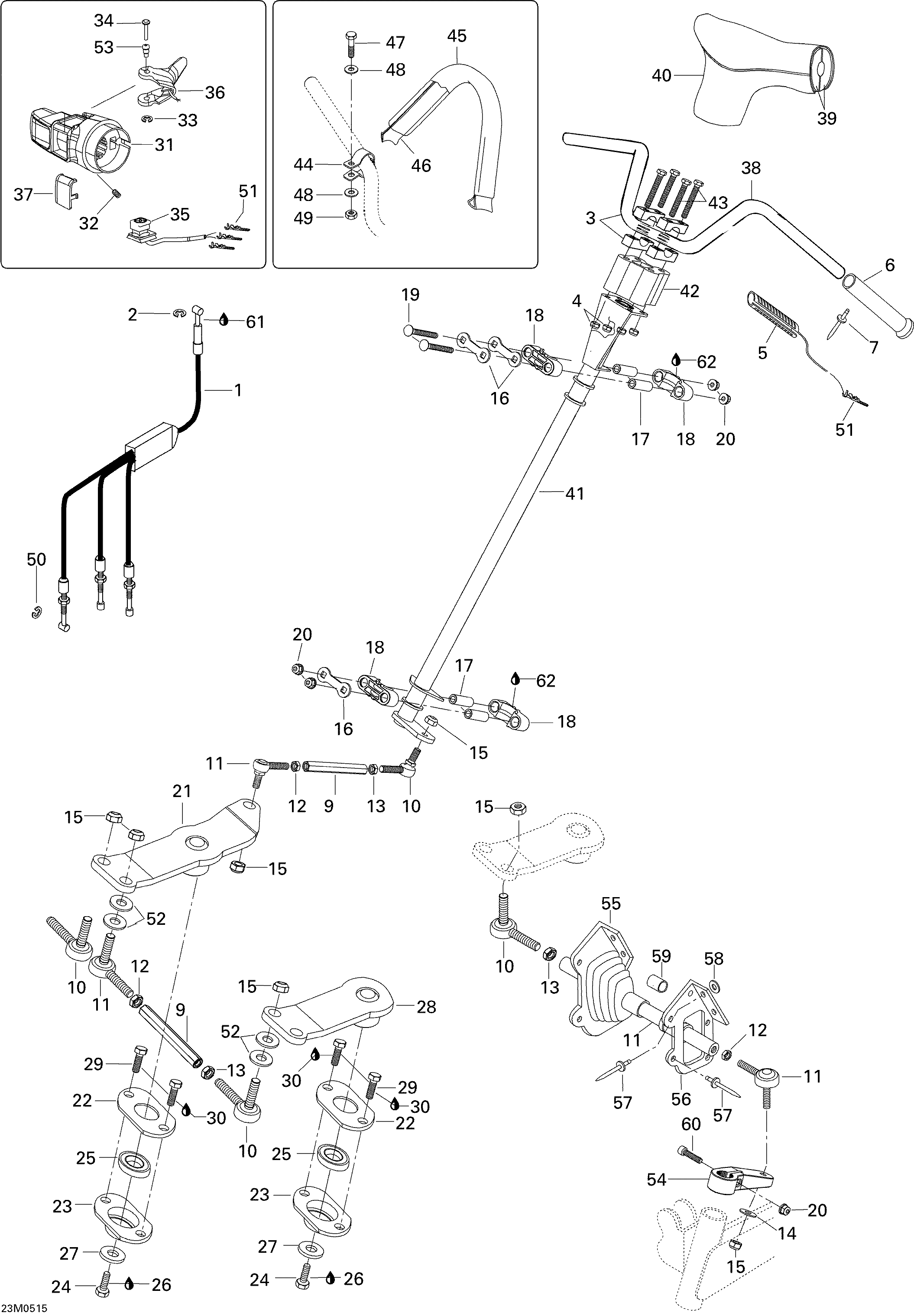

07- Steering System 550F SUV для BRP Ski-Doo Skandic SUV 550F - 2005
-
№АртикулНазвание
-
1605249117 Throttle Cable. 550 SUVThrottle Cable. 550 SUV
-
2M31038 CirclipCirclip
-
3M548448 Steering ClampSteering Clamp
-
4232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
5515175664 Heating GripHeating Grip
-
6M5340464 Grip HandleGrip Handle
-
7M36005 RivetRivet
-
8605448307 Tie RodTie Rod
-
9605448308 Short Tie RodShort Tie Rod
-
10506151495 LH Ball JointLH Ball Joint
-
11506151492 RH Ball JointRH Ball Joint
-
12M33019 RH NutRH Nut
-
13M33017 LH NutLH Nut
-
14M20105 WasherWasher
-
15M33023 NutNut
-
16506150600 Stopper PlateStopper Plate
-
17506150500 Housing BushingHousing Bushing
-
18506150400 Housing HalfHousing Half
-
19207787044 Carriage Bolt M8 X 70Carriage Bolt M8 X 70
-
20M33201 Elastic Stop Nut M8Elastic Stop Nut M8
-
21605348402 RH Welded LeverRH Welded Lever
-
22M5345380 CoverCover
-
23605350644 Bearing SupportBearing Support
-
24M40337 Hex ScrewHex Screw
-
25405404500 Ball Bearing 6205Ball Bearing 6205
-
26293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
27M5446279 WasherWasher
-
28605348403 LH Welded LeverLH Welded Lever
-
29M40336 Screw M8 X 20Screw M8 X 20
-
30293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
31512059489 Throttle Housing. 550 SUVThrottle Housing. 550 SUV
-
32414440800 Set Screw M8 X 10Set Screw M8 X 10
-
33414439000 CirclipCirclip
-
34414438700 Lever PinLever Pin
-
35515175410 Kill SwitchKill Switch
-
36512059623 Heat Throttle Handle 34 mm. 550 SUVHeat Throttle Handle 34 mm. 550 SUV
-
37572100901 Switch CoverSwitch Cover
-
38605249033 Handle BarHandle Bar
-
39605250305 Front Padding SteeringFront Padding Steering
-
39605250306 Rear Padding SteeringRear Padding Steering
-
40605250279 Handle Bar CoverHandle Bar Cover
-
41605250189 Main TubeMain Tube
-
42605349584 ExtensionExtension
-
43M40124 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
44506148200 Support PlateSupport Plate
-
45415090200 GripGrip
-
46415095500 Tie-DownTie-Down
-
47207162544 Hex Screw M6 X 25Hex Screw M6 X 25
-
48234061410 Flat Washer 6 mmFlat Washer 6 mm
-
49232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
50M31035 CirclipCirclip
-
51M42603 Male TerminalMale Terminal
-
54M5348261 Steering ArmSteering Arm
-
55570024800 RH Tie Rod CapRH Tie Rod Cap
-
55570024900 LH Tie Rod CapLH Tie Rod Cap
-
56517241200 RH Cap PlateRH Cap Plate
-
56517241300 LH Cap PlateLH Cap Plate
-
57M36036 Rivet-BlackRivet-Black
-
58M20008 Washer 5 mmWasher 5 mm
-
59572036500 BushingBushing
-
60M40828 Allen Screw M8 X 45Allen Screw M8 X 45
-
61293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
62293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
