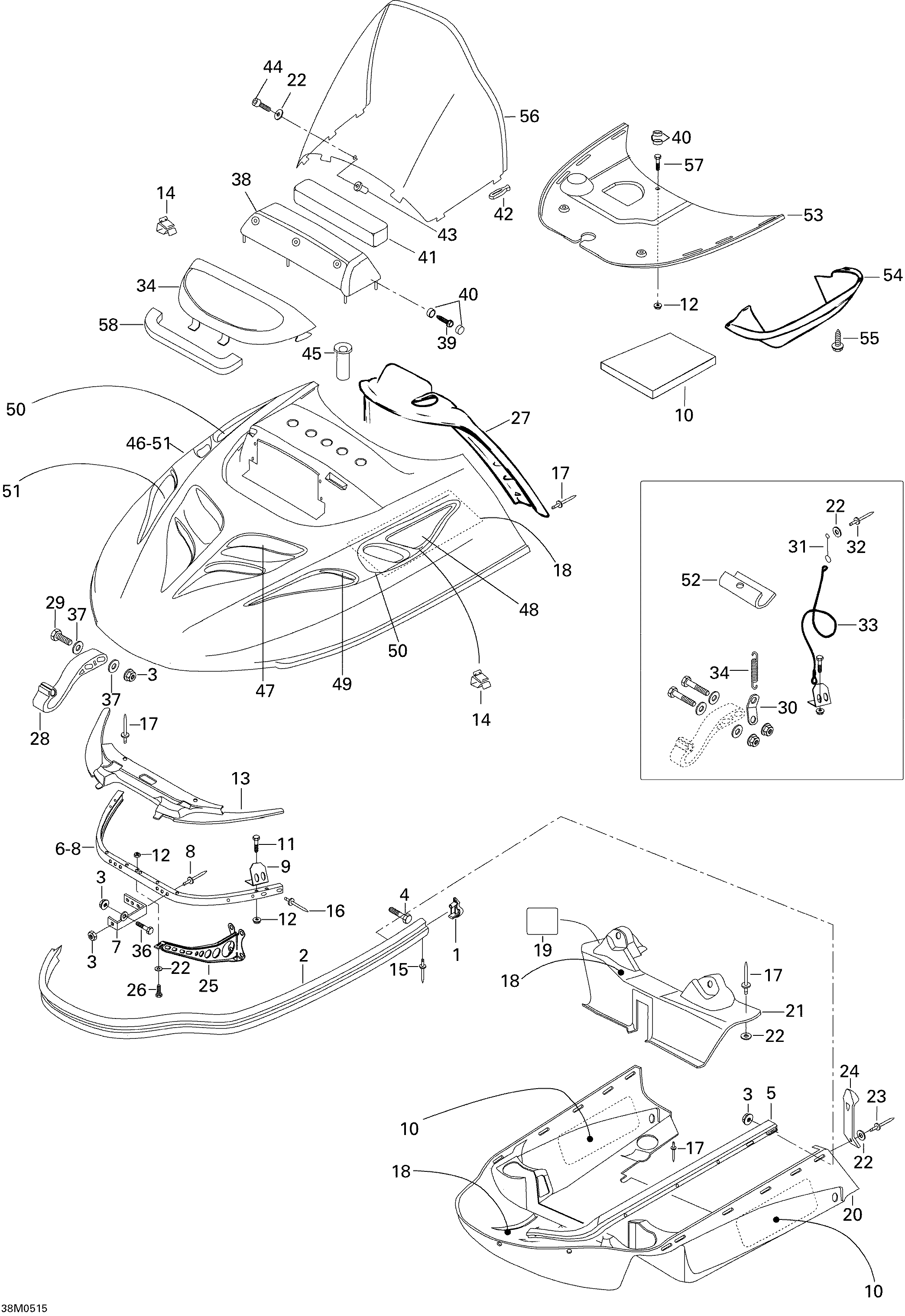

09- Cab And Console 550F SUV для BRP Ski-Doo Skandic SUV 550F - 2005
-
№АртикулНазвание
-
1M549096R RH CapRH Cap
-
1M549096L LH CapLH Cap
-
2M5242798 Front BumperFront Bumper
-
3M33200 Nut M6Nut M6
-
4M40078 ScrewScrew
-
5M5242804 RH Hood GuideRH Hood Guide
-
5M5242803 LH Hood GuideLH Hood Guide
-
6M5246120 Front Support. Includes 6 to 8Front Support. Includes 6 to 8
-
7M5342234 HingeHinge
-
7M5342345 HingeHinge
-
8M36083 RivetRivet
-
9605449350 Hood GuideHood Guide
-
9M5443217 Hood GuideHood Guide
-
10414631900 Acoustic FoamAcoustic Foam
-
11M40247 Screw M5 X 16Screw M5 X 16
-
12M33062 Nut M5Nut M5
-
13M5148319 Hinge ProtectorHinge Protector
-
14414227300 ClipClip
-
15M36097 RivetRivet
-
16M36037 RivetRivet
-
17M36036 Rivet-BlackRivet-Black
-
18M44001 Sheet ReflectionSheet Reflection
-
19605449182 Isolation SheetIsolation Sheet
-
20605152264 Bottom Pan, Suv Fc. 550 SUVBottom Pan, Suv Fc. 550 SUV
-
21605248597 CoverCover
-
22M20008 Washer 5 mmWasher 5 mm
-
23M36009 RivetRivet
-
24M5342952 Hood LatchHood Latch
-
25M5245977 Painted Central SupportPainted Central Support
-
26M40308 ScrewScrew
-
27605148419 Dash. 550 SUVDash. 550 SUV
-
28M5343075 HingeHinge
-
29M40193 ScrewScrew
-
30M5443123 Spring PlateSpring Plate
-
31605449395 Cable Keeper. 550 SUVCable Keeper. 550 SUV
-
32M36005 RivetRivet
-
33M5346947 Retainer Cable. 550 SUVRetainer Cable. 550 SUV
-
34M5442675 SpringSpring
-
35M5246396 Molding LampMolding Lamp
-
36M40084 Screw M6 X 45Screw M6 X 45
-
37M20009 Washer 6.4 Din 9021Washer 6.4 Din 9021
-
38605149010 Intake CoverIntake Cover
-
39M40901 Hex ScrewHex Screw
-
40M282000 CoverCover
-
41605349056 FilterFilter
-
42570023800 Windshield LatchWindshield Latch
-
43M28055 Welded NutWelded Nut
-
44M40156 ScrewScrew
-
45605449084 Short TubeShort Tube
-
46605149586 Hood Ass'y. 550 SUV (Yellow) Includes 46 to 49Hood Ass'y. 550 SUV (Yellow) Includes 46 to 49
-
46605150039 Hood Ass'y. 550 SUV (Black) Includes 46 to 49Hood Ass'y. 550 SUV (Black) Includes 46 to 49
-
47M5142669 Front GrillFront Grill
-
48M5242671 RH Upper GrillRH Upper Grill
-
48M5242670 LH Upper Grill. 550 SUVLH Upper Grill. 550 SUV
-
49M5242672 RH Lower GrillRH Lower Grill
-
49M5342673 LH Lower GrillLH Lower Grill
-
53M5246742 Air DuctAir Duct
-
54M5146986 Air DuctAir Duct
-
55414644300 DartDart
-
56M5147892 WindshieldWindshield
-
57M40179 Screw M5X25Screw M5X25
