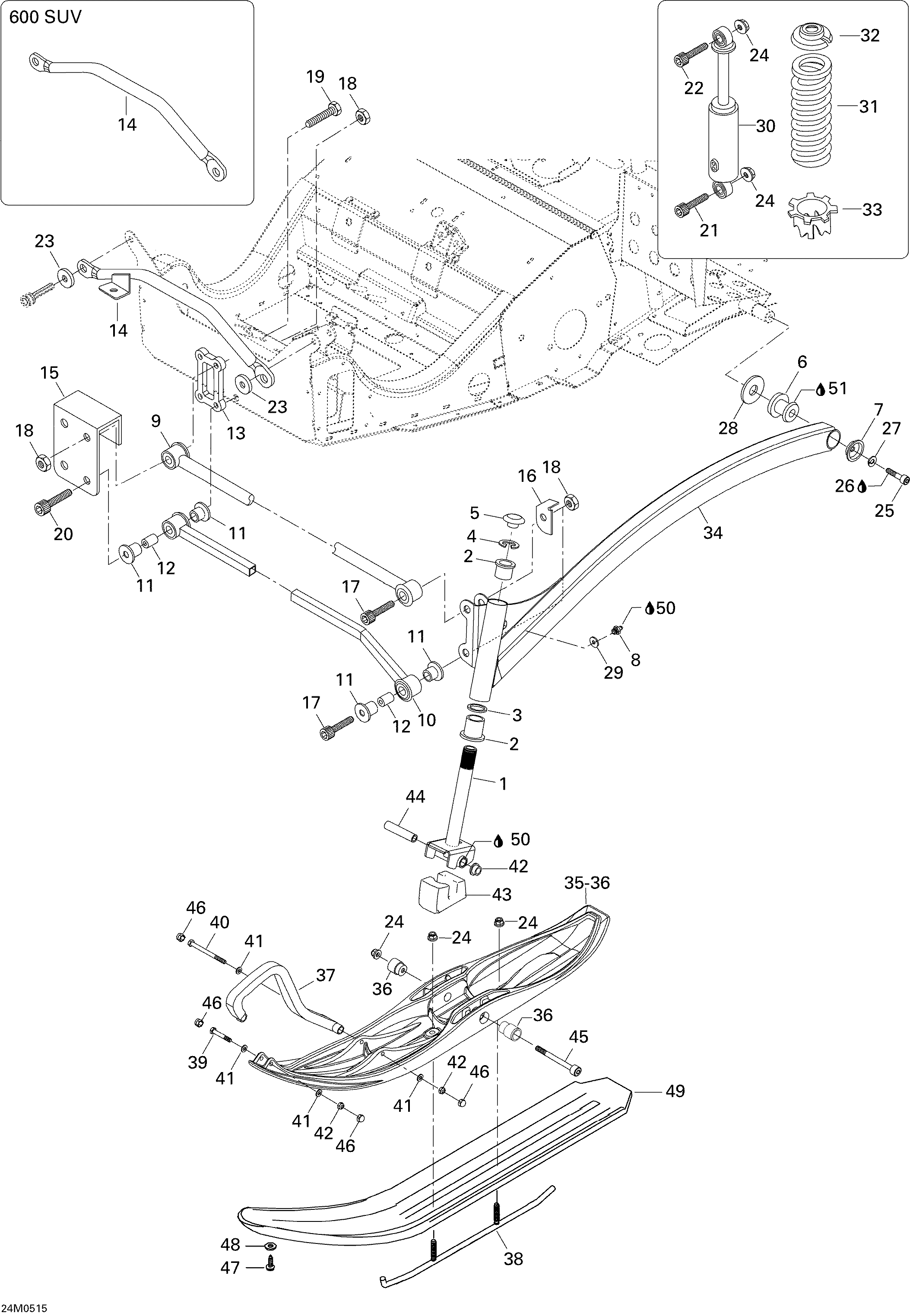

07- Front Suspension And Ski 550F SUV для BRP Ski-Doo Skandic SUV 550F - 2005
-
№АртикулНазвание
-
1506151234 Ski LegSki Leg
-
2505070003 CushionCushion
-
3505070004 WasherWasher
-
4371910400 CirclipCirclip
-
5572091300 CapCap
-
6570062200 DamperDamper
-
7506115800 CupCup
-
8M34011 Grease FittingGrease Fitting
-
9M5348207 Upper Arm Ass'YUpper Arm Ass'Y
-
10M5248204 Lower Arm Ass'YLower Arm Ass'Y
-
11506149100 CushionCushion
-
12605450024 BushingBushing
-
13M5345384 Lower Link PlateLower Link Plate
-
14605349134 Bar Support. 550 SUVBar Support. 550 SUV
-
15M5345716 Painted Link PlatePainted Link Plate
-
16605448861 RH Plate LockingRH Plate Locking
-
16605448862 LH Plate LockingLH Plate Locking
-
17M40371 Screw Allen M12 X 55Screw Allen M12 X 55
-
18232521414 Hex Elastic Stop Nut M12Hex Elastic Stop Nut M12
-
19M40185 Screw M12 X 75Screw M12 X 75
-
20M40370 Screw Allen M12 X 75Screw Allen M12 X 75
-
21M40837 Screw M10 X 55Screw M10 X 55
-
22M40254 Screw M10 X 65Screw M10 X 65
-
23605449801 WasherWasher
-
24M33074 NutNut
-
25M40810 Screw Allen M8 X 20Screw Allen M8 X 20
-
26293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
27234181401 Lock Washer M8Lock Washer M8
-
28503146700 WasherWasher
-
29M20007 WasherWasher
-
30M23165 Front ShockFront Shock
-
31M25061 SpringSpring
-
32M230076 Spring StopperSpring Stopper
-
33M230078 CamCam
-
34605251768 Swing Arm Weld RH BSwing Arm Weld RH B
-
34605251767 Swing Arm Weld LH BSwing Arm Weld LH B
-
35605148440 Ski Plastic Ski Ass'y. Includes 35 to 36Ski Plastic Ski Ass'y. Includes 35 to 36
-
36605348392 BushingBushing
-
37505070963 Handle (Black)Handle (Black)
-
38605349311 Carbide RunnerCarbide Runner
-
39207085044 Hex Screw M8 X 50Hex Screw M8 X 50
-
40M40264 Hex Screw M8 X 90Hex Screw M8 X 90
-
41234081410 Flat Washer 8 mmFlat Washer 8 mm
-
42232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
43605348458 Ski StopperSki Stopper
-
44506133300 SpacerSpacer
-
45M40225 Hex Screw M10 X 140Hex Screw M10 X 140
-
46M28056 CapCap
-
47M40901 Hex ScrewHex Screw
-
48M20037 WasherWasher
-
49605158633 Ski LinerSki Liner
-
50219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
51293550030 Grease, Super LubeGrease, Super Lube
