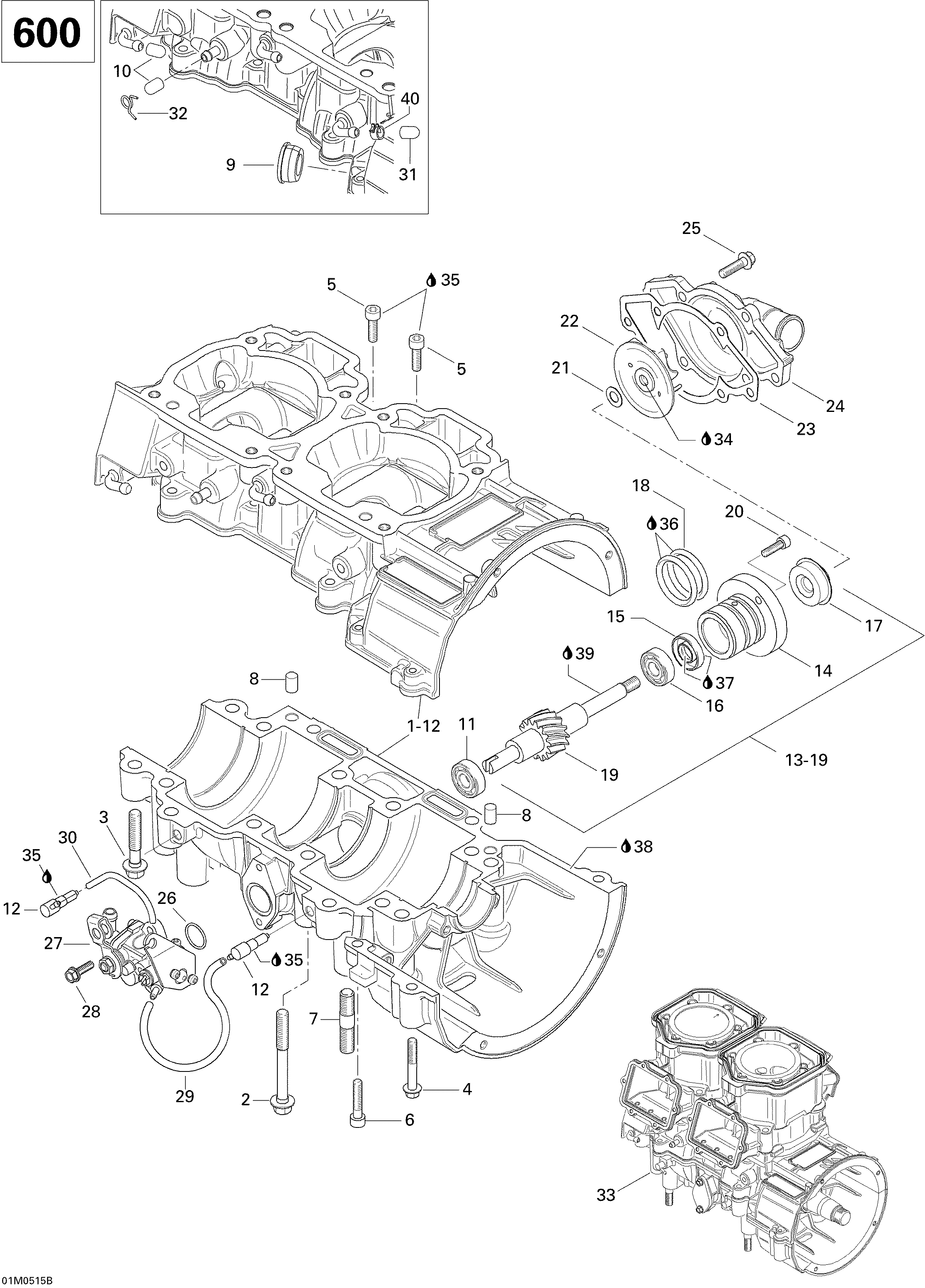

01- Crankcase (600) для BRP Ski-Doo Skandic SUV 600 - 2005
-
№АртикулНазвание
-
1420888769 Crankcase Ass'Y. Includes 1 to 12Crankcase Ass'Y. Includes 1 to 12
-
2420640836 Hex Collar Screw M8 X 75Hex Collar Screw M8 X 75
-
3420640431 Hex Collar Screw M8 X 45Hex Collar Screw M8 X 45
-
4420640311 Hex Collar Screw M6 X 45Hex Collar Screw M6 X 45
-
5420840401 Socket Head Screw M6 X 22Socket Head Screw M6 X 22
-
6205063044 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
7420940704 Stud M10Stud M10
-
8420632010 Center PinCenter Pin
-
9420860965 Cable GrommetCable Grommet
-
10420960770 CapCap
-
11420232100 Ball BearingBall Bearing
-
12420956510 Check ValveCheck Valve
-
13420837421 Water Pump/Oil Pump Ass'Y. Includes 13 to 19Water Pump/Oil Pump Ass'Y. Includes 13 to 19
-
15420230196 Oil SealOil Seal
-
16420232100 Ball BearingBall Bearing
-
17420650370 Rotary SealRotary Seal
-
18420950890 O-RingO-Ring
-
20420840511 Socket Head Screw M5 X 16Socket Head Screw M5 X 16
-
21420227945 WasherWasher
-
22420222505 Water ImpellerWater Impeller
-
23420931810 GasketGasket
-
24420922630 Water Pump HousingWater Pump Housing
-
25420240031 Hex Screw M6 X 25Hex Screw M6 X 25
-
26293300041 O-ringO-ring
-
27420888260 Oil Pump Ass'Y (600)Oil Pump Ass'Y (600)
-
28420941925 Tapping Screw M5 X 16Tapping Screw M5 X 16
-
29414413800 Oil LineOil Line
-
30414413800 Oil LineOil Line
-
31420960777 CapCap
-
32420938190 ClampClamp
-
33421000616 Short Block 593Short Block 593
-
34293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
35413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
36413707000 Molykote 111, 150 GMolykote 111, 150 G
-
37420899271 Petamo Grease, Ghy133n, 400 GPetamo Grease, Ghy133n, 400 G
-
38420297906 Sealing Compound, 30 mlSealing Compound, 30 ml
-
39413802900 Injection Oil (12 X 1 Liter)Injection Oil (12 X 1 Liter)
-
40414420700 Spring ClampSpring Clamp
