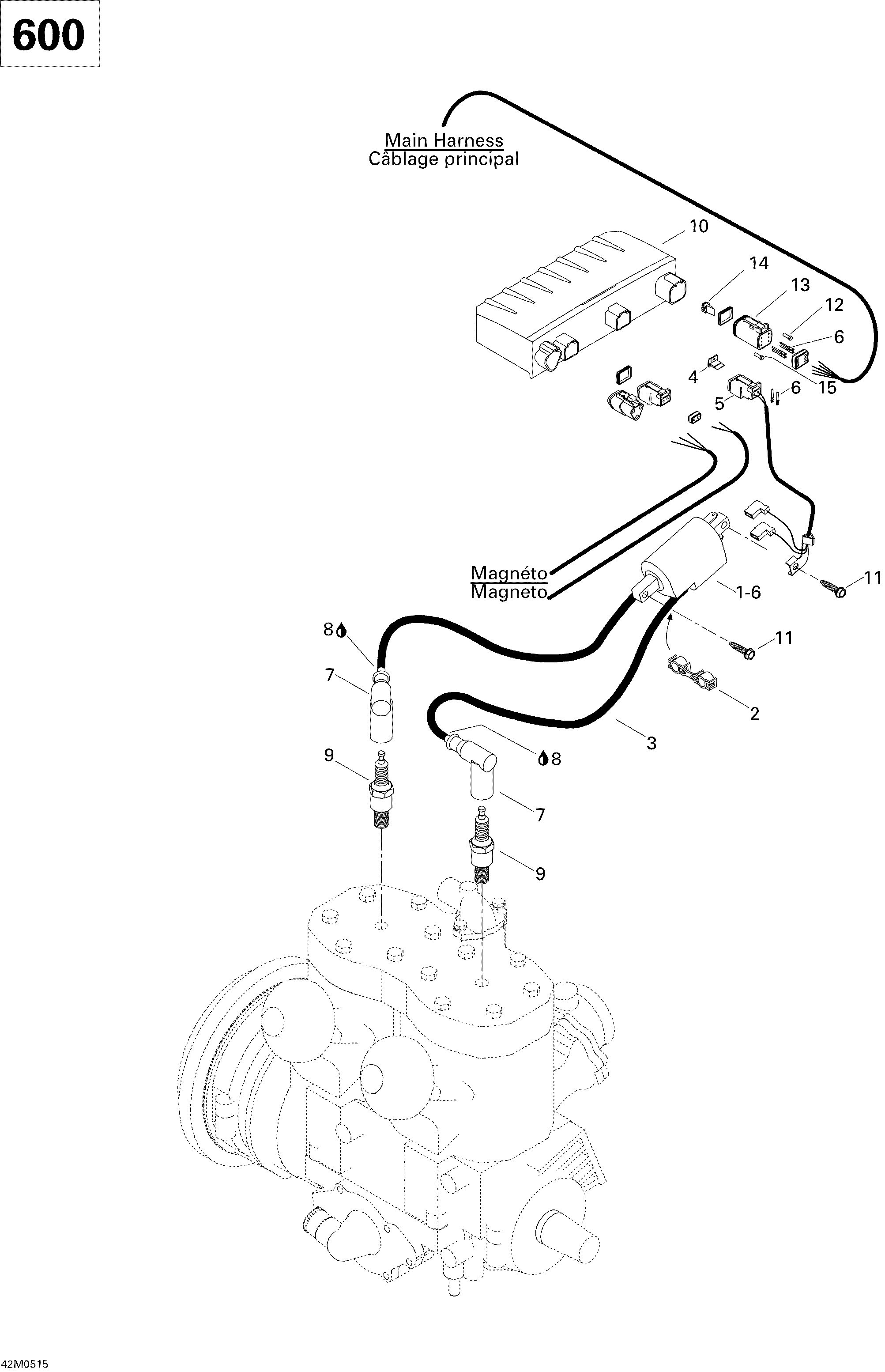

04- Ignition 600 для BRP Ski-Doo Skandic SUV 600 - 2005
-
№АртикулНазвание
-
1410922935 Ignition CoilIgnition Coil
-
2410914600 Plastic Clip (Spark Plug Wire)Plastic Clip (Spark Plug Wire)
-
3278001268 Spark Plug WireSpark Plug Wire
-
4M42609 Male Wedge 2 WaysMale Wedge 2 Ways
-
5409207300 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
6278000632 Female TerminalFemale Terminal
-
7278000237 Spark Plug CapSpark Plug Cap
-
8293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
9512059552 Spark Plug NGK BR9ECS 0.5mmSpark Plug NGK BR9ECS 0.5mm
-
10605350037 Calibration ModuleCalibration Module
-
11M40377 ScrewScrew
-
12515175303 Plug (Deutsch)Plug (Deutsch)
-
13278000736 Female Terminal Housing (6 Circuits)Female Terminal Housing (6 Circuits)
-
14278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
15293000052 Sealing CapSealing Cap
