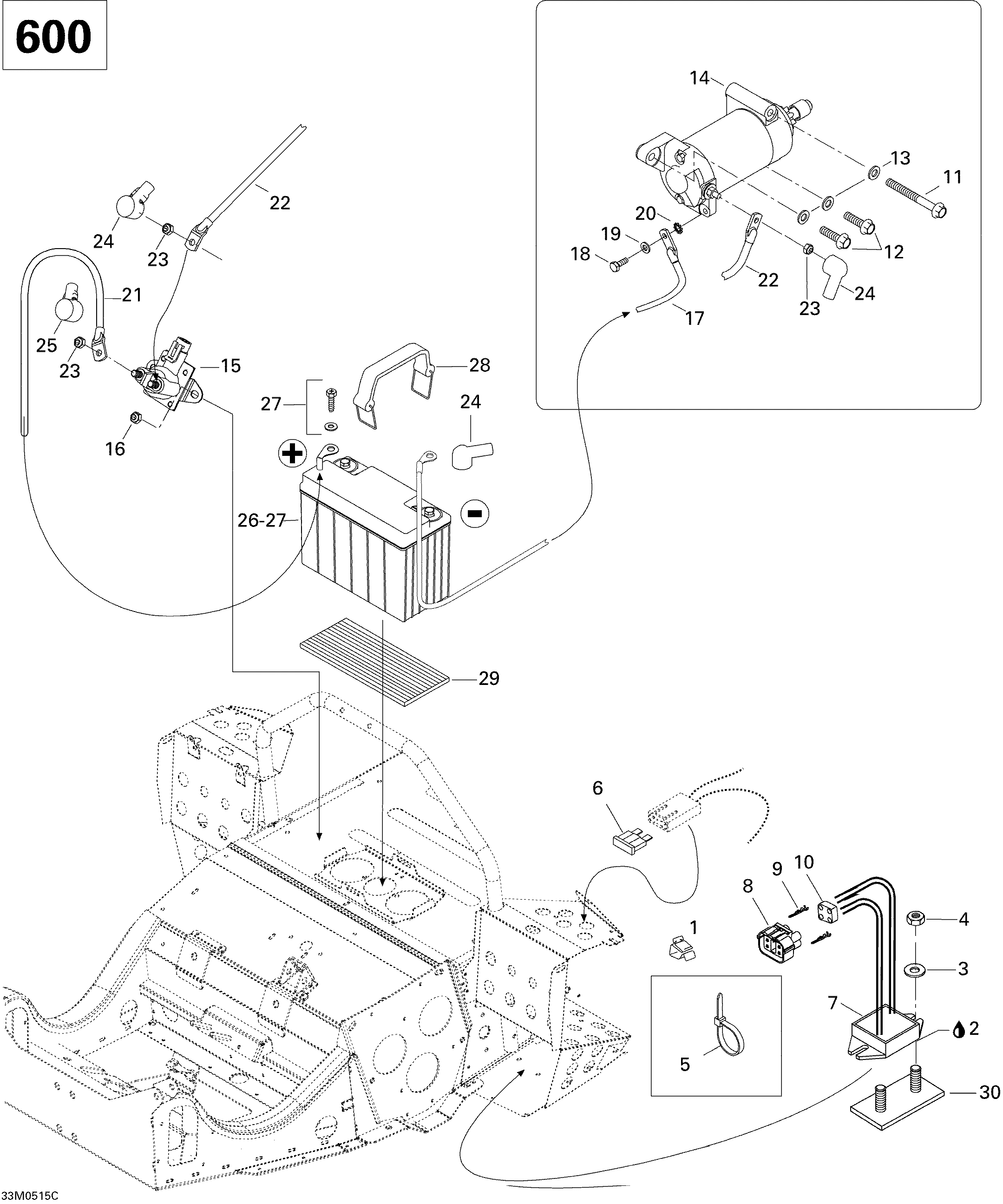

10- Electrical System 600 для BRP Ski-Doo Skandic SUV 600 - 2005
-
№АртикулНазвание
-
1414227300 ClipClip
-
2413707500 Grease Tube Lmz, 400 GGrease Tube Lmz, 400 G
-
3M20009 Washer 6.4 Din 9021Washer 6.4 Din 9021
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
6409003900 Fuse (20 Amperes)Fuse (20 Amperes)
-
7515175939 Voltage RegulatorVoltage Regulator
-
8278001477 Male Terminal Housing (4 Circuits)Male Terminal Housing (4 Circuits)
-
9515175568 Male TerminalMale Terminal
-
10278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
11207587544 Hex Flanged Screw M8 X 75 (Scotch Grip)Hex Flanged Screw M8 X 75 (Scotch Grip)
-
12207583044 Hex Flanged Screw M8 X 30 (Scotch Grip)Hex Flanged Screw M8 X 30 (Scotch Grip)
-
13250200008 Flat Washer 8 mmFlat Washer 8 mm
-
14515176003 Starter Ass'YStarter Ass'Y
-
15278001802 Relay StarterRelay Starter
-
16M33200 Nut M6Nut M6
-
18207361644 Hex Screw M6 X 16 (Scotch Grip)Hex Screw M6 X 16 (Scotch Grip)
-
19234061410 Flat Washer 6 mmFlat Washer 6 mm
-
20M20017 Serrated Lock WasherSerrated Lock Washer
-
23232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
24570151000 Protection CapProtection Cap
-
25278001771 Protector CapProtector Cap
-
26410301203 Battery 18 Amperes. Includes 26 to 27Battery 18 Amperes. Includes 26 to 27
-
27295500849 Battery Fastener KitBattery Fastener Kit
-
28515176044 Battery StrapBattery Strap
-
29605350237 Battery CarpetBattery Carpet
-
30M5448286 PlatePlate
