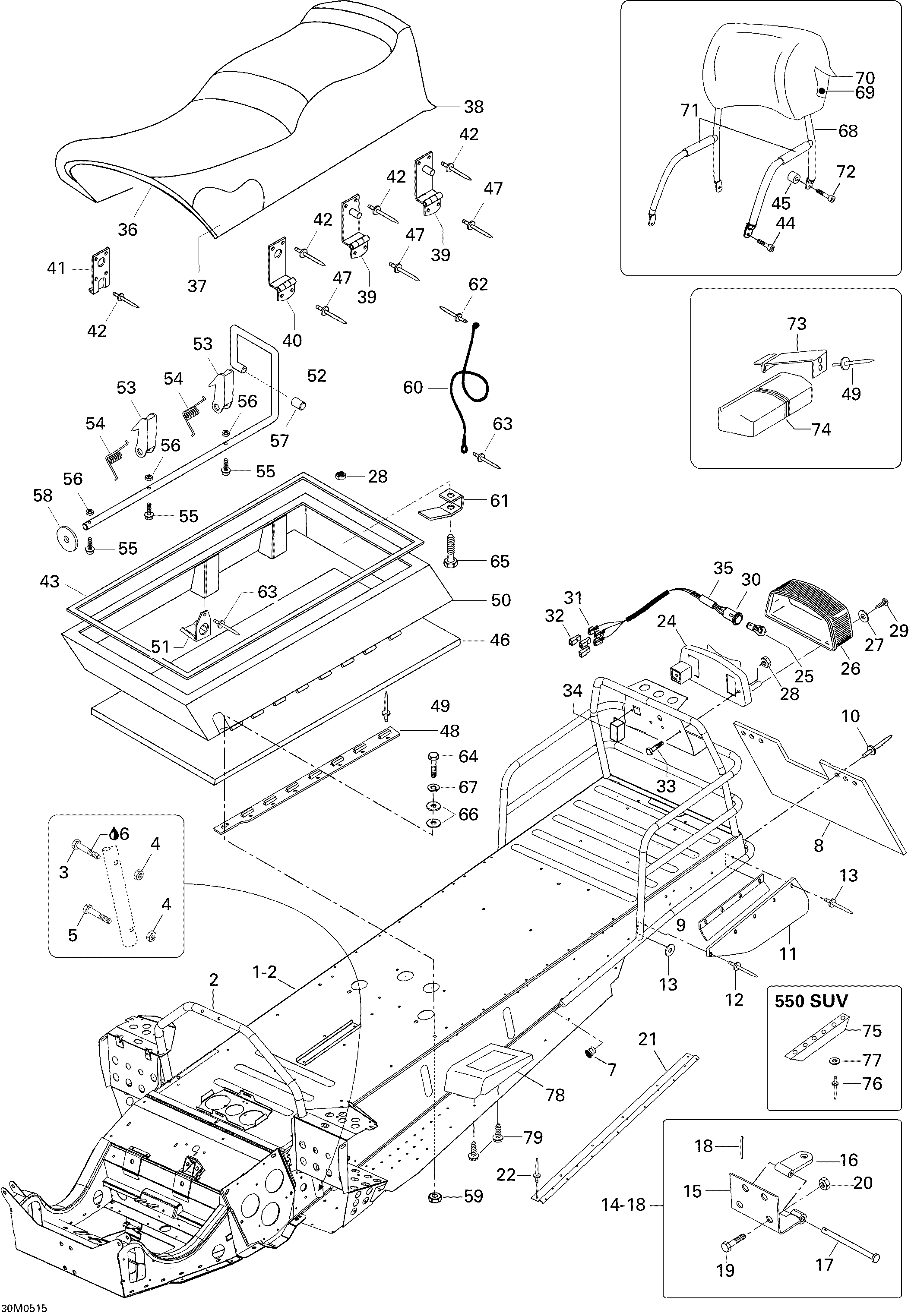

09- Frame And Seat 600 SUV для BRP Ski-Doo Skandic SUV 600 - 2005
-
№АртикулНазвание
-
1605149618 Frame. 600 SUV, Includes 1 to 2Frame. 600 SUV, Includes 1 to 2
-
2605150258 Handle SupportHandle Support
-
3207063044 Hex Screw M6 X 30Hex Screw M6 X 30
-
4232061414 Hex Nut M6Hex Nut M6
-
5207064044 Hex Screw M6 X 40Hex Screw M6 X 40
-
6293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
7M28136 PlugPlug
-
8M538629 Snow GuardSnow Guard
-
9M5340532 SupportSupport
-
10M36036 Rivet-BlackRivet-Black
-
11M5142828 Lateral Snow GuardLateral Snow Guard
-
12M36097 RivetRivet
-
13M20037 WasherWasher
-
15M5344151 PlatePlate
-
16M548745 Hitch PlateHitch Plate
-
17560309200 Pin-RetainerPin-Retainer
-
18M41031 PinPin
-
19M40336 Screw M8 X 20Screw M8 X 20
-
20232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
21605348881 Antisliperry Running BandAntisliperry Running Band
-
22M36010 RivetRivet
-
24510004061 Light HousingLight Housing
-
25410504100 Tail Lamp BulbTail Lamp Bulb
-
26414513700 LensLens
-
27414516400 WasherWasher
-
28M33200 Nut M6Nut M6
-
29414516300 ScrewScrew
-
30515175852 AdapterAdapter
-
31M42178 Female TerminalFemale Terminal
-
32M42179 Female HousingFemale Housing
-
33207063044 Hex Screw M6 X 30Hex Screw M6 X 30
-
34M5345713 AdaptorAdaptor
-
35M39023 HousingHousing
-
36M519394 Sub SeatSub Seat
-
37605148623 Foam SeatFoam Seat
-
38605149043 Cover SeatCover Seat
-
39M549874 HingeHinge
-
40M5440581 HingeHinge
-
41M549732 Lock PlateLock Plate
-
42M36071 RivetRivet
-
43M5440059 CushionCushion
-
44M40388 Socket ScrewSocket Screw
-
45M5440665 SpacerSpacer
-
46M5346079 Foam. 600 SUVFoam. 600 SUV
-
47M36489 RivetRivet
-
48M5144029 RH SupportRH Support
-
48M5144028 LH SupportLH Support
-
49M36083 RivetRivet
-
50M5142066 Welded Seat Base WeldWelded Seat Base Weld
-
51M5443661 SupportSupport
-
52M5344987 Pivot PinPivot Pin
-
53605451589 Cam LockCam Lock
-
54M5444439 SpringSpring
-
55M40144 Screw M4 X 16Screw M4 X 16
-
56232541414 Elastic Stop Nut M4 X 70Elastic Stop Nut M4 X 70
-
57M28019 CapCap
-
58234081410 Flat Washer 8 mmFlat Washer 8 mm
-
59M33066 Nut M6Nut M6
-
60M5447746 Retainer Cable. 600 SUVRetainer Cable. 600 SUV
-
62M36038 RivetRivet
-
63M36009 Rivet. 600 SUVRivet. 600 SUV
-
64M40052 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
66M20009 Washer 6.4 Din 9021Washer 6.4 Din 9021
-
67234161471 Lock Washer 6 mmLock Washer 6 mm
-
68M5245664 BackrestBackrest
-
69M539399 Backrest FoamBackrest Foam
-
70M5340917 Backrest CoverBackrest Cover
-
71415050300 RH Grip (250 mm)RH Grip (250 mm)
-
72M40389 Allen ScrewAllen Screw
-
73M5344443 SpringSpring
-
74605350523 Tool BoxTool Box
-
78414975300 RH Rear Footrest. 600 SUVRH Rear Footrest. 600 SUV
-
78414975400 LH Rear Footrest. 600 SUVLH Rear Footrest. 600 SUV
-
79M40870 Hex Tapping Screw. 600 SUVHex Tapping Screw. 600 SUV
-
80M36103 Rivet. 600 SUVRivet. 600 SUV
