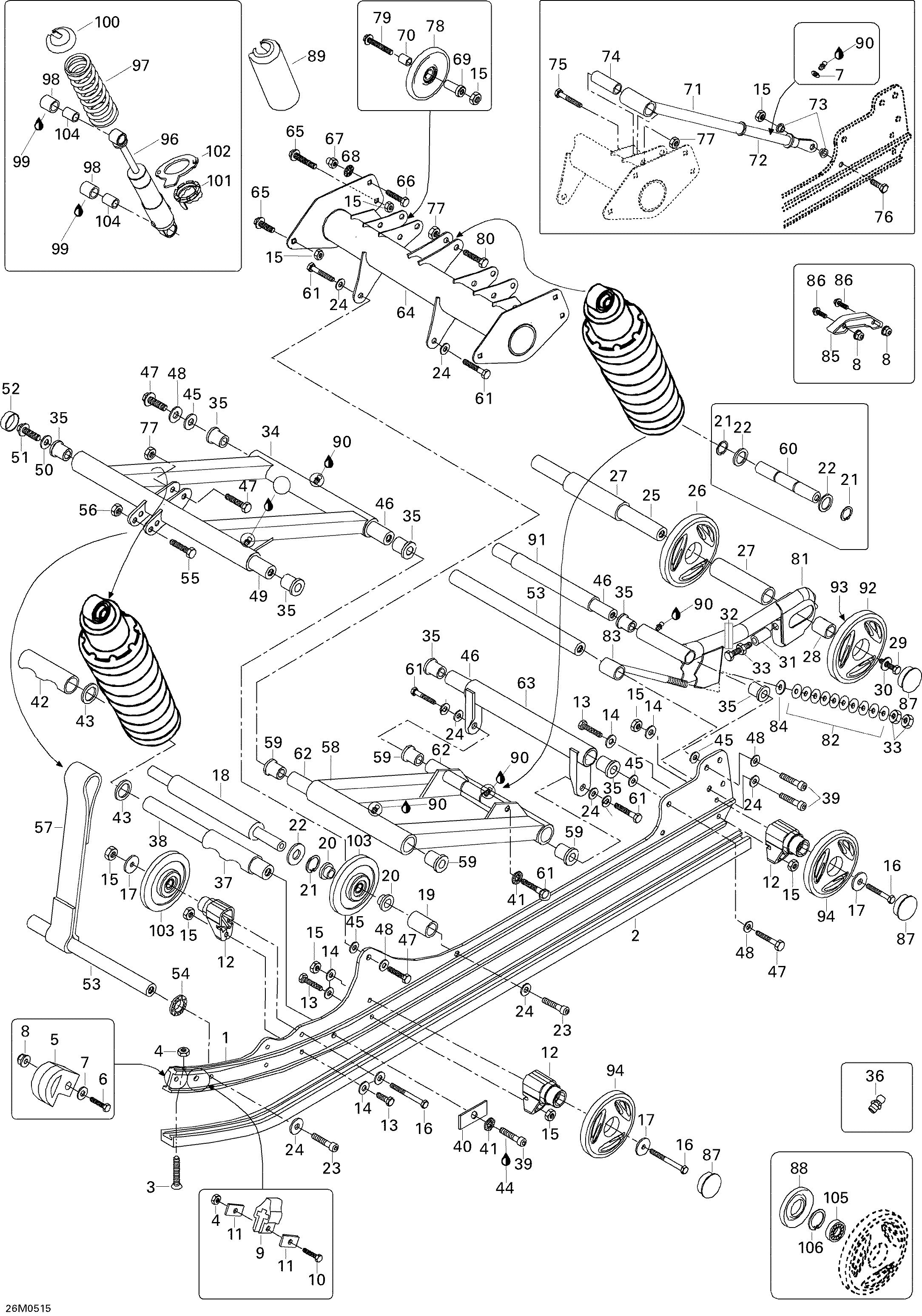

08- Rear Suspension для BRP Ski-Doo Skandic SUV 600 - 2005
-
№АртикулНазвание
-
1M5247224 RunnerRunner
-
2M5347724 Runner ShoeRunner Shoe
-
3M40059 Screw M6X60Screw M6X60
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5605348954 Runner ProtectorRunner Protector
-
6207162544 Hex Screw M6 X 25Hex Screw M6 X 25
-
7234061410 Flat Washer 6 mmFlat Washer 6 mm
-
8M33200 Nut M6Nut M6
-
9M5448216 Rubber StopperRubber Stopper
-
10207063044 Hex Screw M6 X 30Hex Screw M6 X 30
-
11M548470 PlatePlate
-
12605450182 SupportSupport
-
13207182544 Hex Screw M8 X 25Hex Screw M8 X 25
-
14M20104 WasherWasher
-
15232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
16M40089 ScrewScrew
-
17503183100 WasherWasher
-
18M5347950 AxleAxle
-
19M5447951 SleeveSleeve
-
20503189534 CushionCushion
-
21M31007 CirclipCirclip
-
22M31091 ShimShim
-
23M40134 Allen Screw M10 X 45Allen Screw M10 X 45
-
24M20105 WasherWasher
-
25M5343284 ShaftShaft
-
26503189478 Thin Wheel 165Thin Wheel 165
-
27M5444096 SleeveSleeve
-
28M5444098 Sleeve L=29Sleeve L=29
-
29M40050 Hex Screw With Nylon PatchHex Screw With Nylon Patch
-
30503183300 WasherWasher
-
31M546668 SleeveSleeve
-
32M40239 ScrewScrew
-
33232006414 Hex Nut M10Hex Nut M10
-
34M5147672 Front ArmFront Arm
-
35M31083 CushionCushion
-
36M34011 Grease FittingGrease Fitting
-
37M5347718 LimiterLimiter
-
38M5347726 ShaftShaft
-
39M40536 Allen Screw M10 X 45Allen Screw M10 X 45
-
40M5447940 Support PlateSupport Plate
-
41M20068 Lock WasherLock Washer
-
42M5346649 SleeveSleeve
-
43M31013 ShimShim
-
44293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
45M20116 WasherWasher
-
46M5347713 ShaftShaft
-
47222004565 Hex Cap Screw M10 X 45Hex Cap Screw M10 X 45
-
48512056700 Lock WasherLock Washer
-
49605348606 ShaftShaft
-
50M20090 Conical Spring WasherConical Spring Washer
-
51M40243 Screw M12 X 60Screw M12 X 60
-
52509000187 Pressure CapPressure Cap
-
53M5347717 ShaftShaft
-
54M4181158 WasherWasher
-
55207084544 Hex Screw M8 X 45Hex Screw M8 X 45
-
56232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
57M5447961 Stopper StrapStopper Strap
-
58605349313 Rear Arm Weld LightRear Arm Weld Light
-
59M31068 CushionCushion
-
60605451897 Rearshock ShaftRearshock Shaft
-
61207004044 Hex Screw M10 X 40Hex Screw M10 X 40
-
62M5346865 ShaftShaft
-
63M5347668 Welded Rear ArmWelded Rear Arm
-
64605249988 Upper ArmUpper Arm
-
65M40058 Carriage BoltCarriage Bolt
-
66M40056 ScrewScrew
-
67M20072 Lock WasherLock Washer
-
68M33044 NutNut
-
69605450372 Flanged SleeveFlanged Sleeve
-
70605450373 SleeveSleeve
-
71M5347851 TubeTube
-
72M5347852 ShaftShaft
-
73M5447853 InsertInsert
-
74M5447848 SleeveSleeve
-
75207086044 Hex Screw M8 X 60Hex Screw M8 X 60
-
76207103544 Hex Screw M10 X 35Hex Screw M10 X 35
-
77233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
78M46027 Idler WheelIdler Wheel
-
79M40088 Hex Screw M8 X 70Hex Screw M8 X 70
-
80207005044 Hex Screw M10 X 50Hex Screw M10 X 50
-
81M5247806 RH ExtensionRH Extension
-
81M5247808 LH ExtensionLH Extension
-
82M25004 Spring PlateSpring Plate
-
83M5447373 Adjuster Bolt EyeAdjuster Bolt Eye
-
84M20011 WasherWasher
-
85M5343191 ProtectorProtector
-
86M40064 Hex ScrewHex Screw
-
87570063600 Wheel CapWheel Cap
-
88572089000 Labyrinth SealLabyrinth Seal
-
89M5346754 Shock ProtectorShock Protector
-
90219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
91605448429 SleeveSleeve
-
92503190817 Wheel 165 mm YellowWheel 165 mm Yellow
-
93503190795 Ball BearingBall Bearing
-
94503190815 Wheel 139 mm YellowWheel 139 mm Yellow
-
96M23161 Center ShockCenter Shock
-
96M23162 Rear ShockRear Shock
-
97M25059 Center SpringCenter Spring
-
97M25060 Rear SpringRear Spring
-
98M31094 SleeveSleeve
-
99M320006 Loctite 641, 50 mlLoctite 641, 50 ml
-
100M230076 Spring StopperSpring Stopper
-
101M230078 CamCam
-
102605348748 Arm Adjusting Ass'YArm Adjusting Ass'Y
-
103503190798 Wheel 139 mmWheel 139 mm
-
104M5446652 SleeveSleeve
-
105405404500 Ball Bearing 6205Ball Bearing 6205
-
106371901700 Circlip, InteriorCirclip, Interior
