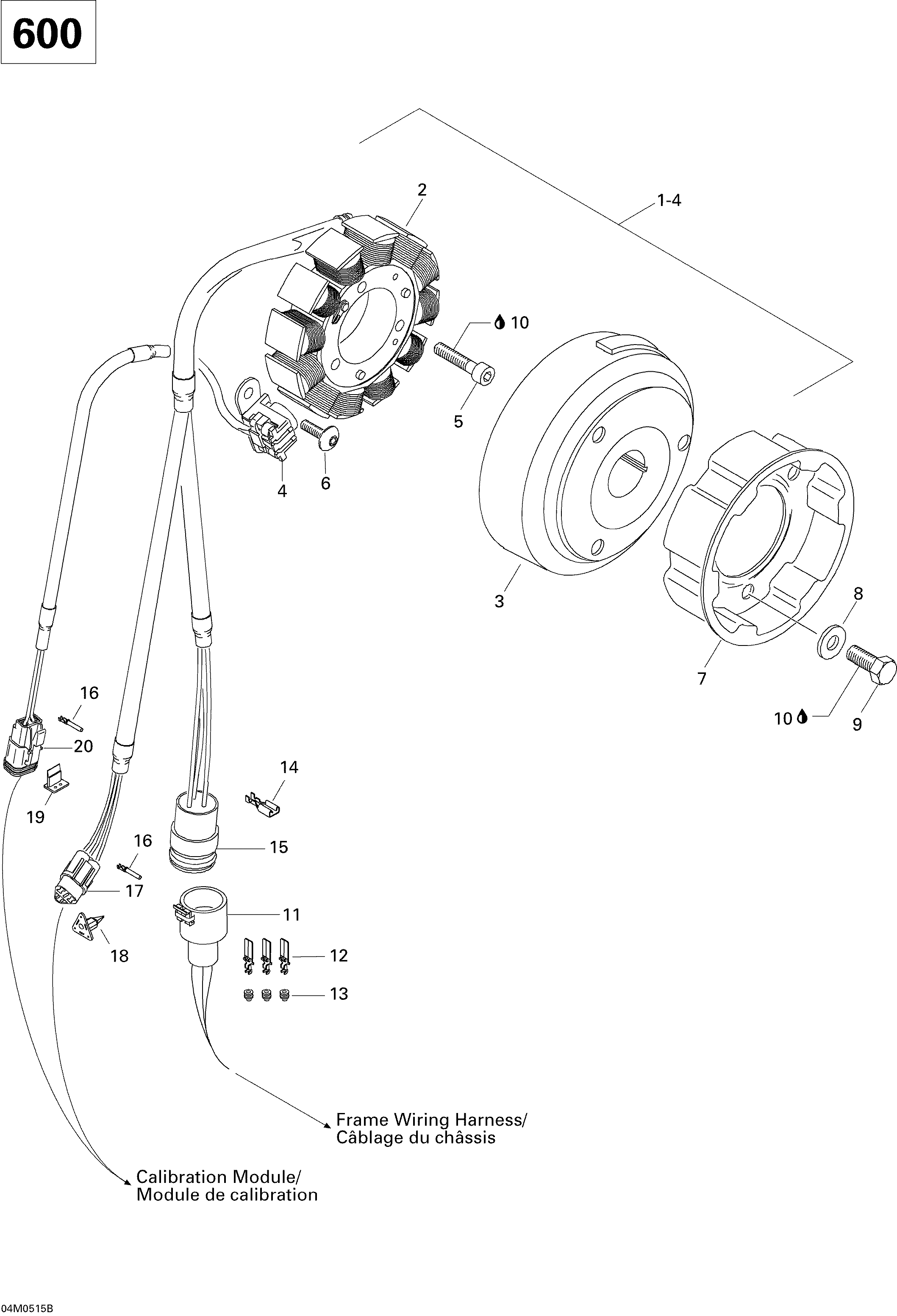

03- Magneto 600 для BRP Ski-Doo Skandic SUV 600 - 2005
-
№АртикулНазвание
-
2410922949 Stator Plate Ass'YStator Plate Ass'Y
-
3410922950 FlywheelFlywheel
-
4410922951 Pick-Up Ass'YPick-Up Ass'Y
-
5205063044 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
6420640321 Taptite ScrewTaptite Screw
-
7420852590 Starting PulleyStarting Pulley
-
8420827405 Flat WasherFlat Washer
-
9420841520 Socket Head Screw M8 X 12Socket Head Screw M8 X 12
-
10293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
11409207900 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
12409011100 Male TerminalMale Terminal
-
13409208500 SealSeal
-
14409011900 Female TerminalFemale Terminal
-
15409208200 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
16278000632 Female TerminalFemale Terminal
-
17409207400 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
18409207200 (Female) Secondary Lock (3 Circuits) (Deutsch)(Female) Secondary Lock (3 Circuits) (Deutsch)
-
19409207100 Female Lock (2 Circuits)Female Lock (2 Circuits)
-
20409207300 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
