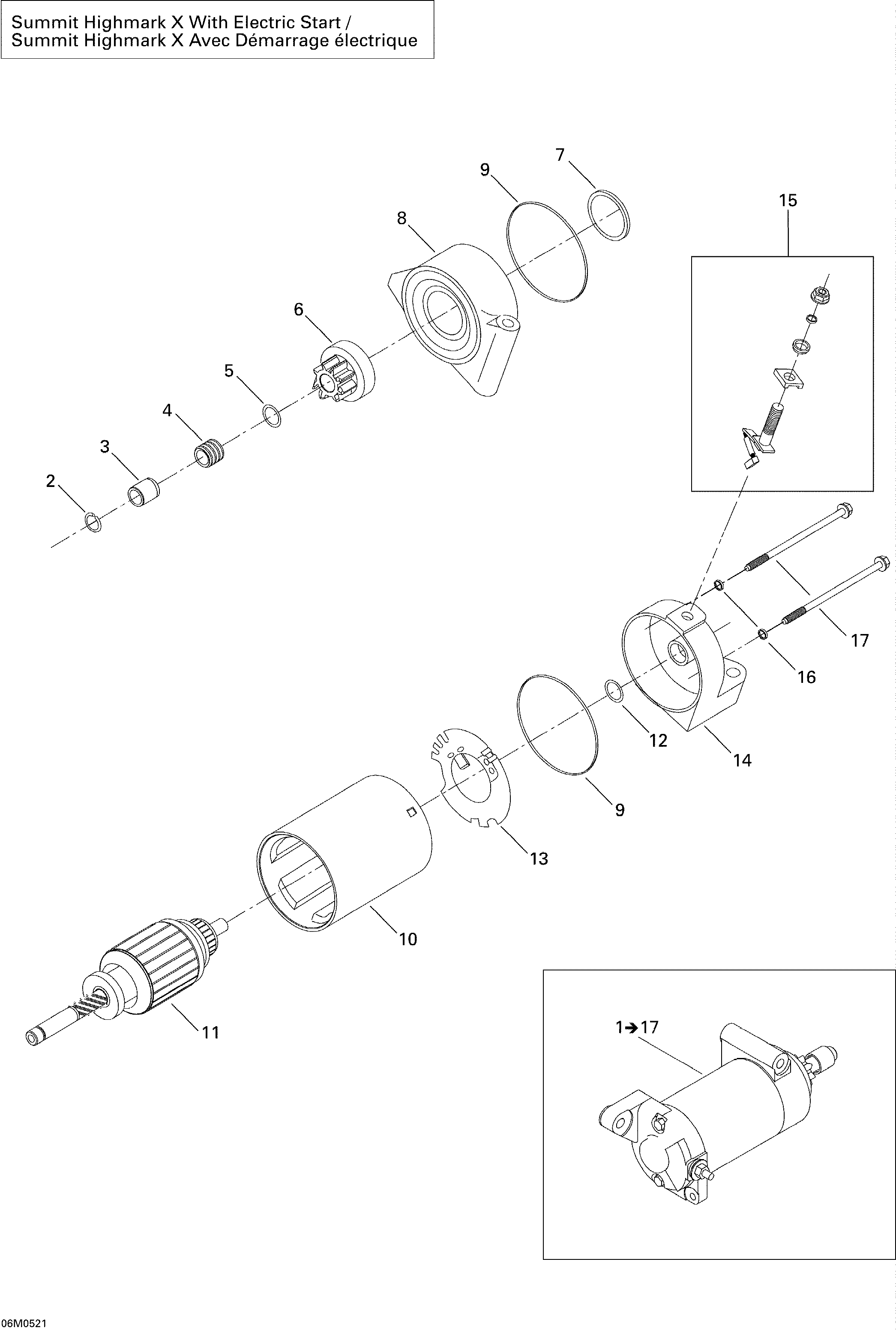

04- Electric Starter Highmark X (E) для BRP Ski-Doo Summit 1000 SDI, Highmark & Highmark X - 2005
-
№АртикулНазвание
-
1515176133 Electric Starter Ass'y. Includes 1 to 17Electric Starter Ass'y. Includes 1 to 17
-
2410207700 Snap RingSnap Ring
-
3410922974 Stop NutStop Nut
-
4410922975 SpringSpring
-
5278001105 Washer PlateWasher Plate
-
6410922958 Starter ClutchStarter Clutch
-
7278000696 O-RingO-Ring
-
8410922959 HousingHousing
-
9278000695 O-RingO-Ring
-
10410922976 Starter HousingStarter Housing
-
11410922977 Armature Ass'yArmature Ass'y
-
12410204500 Flat WasherFlat Washer
-
13410922978 Brush HolderBrush Holder
-
14410922979 HousingHousing
-
15410212100 Brush KitBrush Kit
-
16278000060 O-RingO-Ring
-
17410922980 BoltBolt
