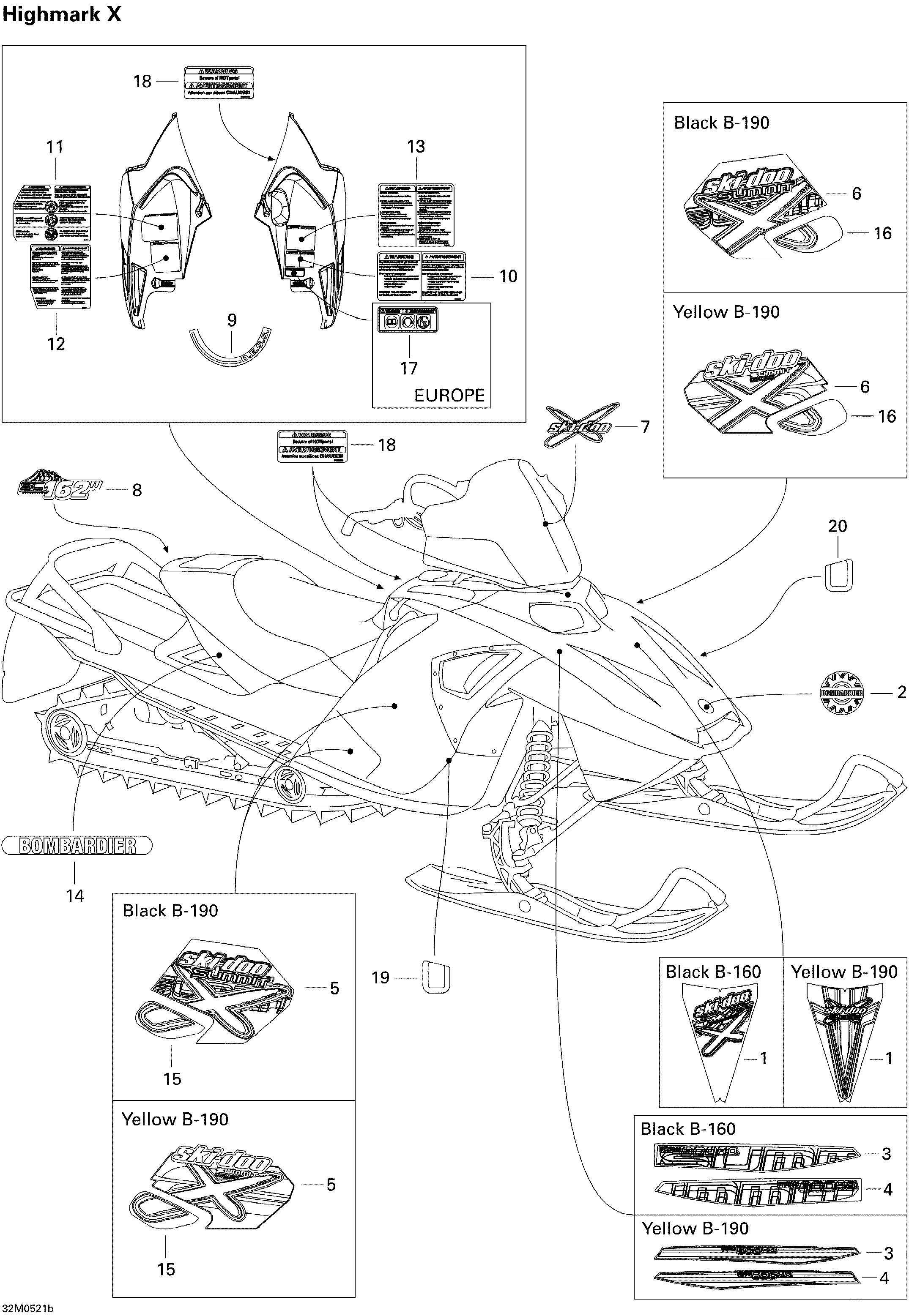

09- Decals Highmark X для BRP Ski-Doo Summit 1000 SDI, Highmark & Highmark X - 2005
-
№АртикулНазвание
-
1516002576 Hood Decal. Black B-160Hood Decal. Black B-160
-
1516002577 Hood Decal. Yellow B-190Hood Decal. Yellow B-190
-
2516000983 Logo «bombardier»Logo «bombardier»
-
3516002578 RH Hood Decal 995. Black B-160RH Hood Decal 995. Black B-160
-
3516002580 RH Hood Decal 995. Yellow B-190RH Hood Decal 995. Yellow B-190
-
4516002579 LH Hood Decal 995. Black B-160LH Hood Decal 995. Black B-160
-
4516002581 LH Hood Decal 995. Yellow B-190LH Hood Decal 995. Yellow B-190
-
5516002582 RH Side Decal. Black B-160RH Side Decal. Black B-160
-
5516002584 RH Side Decal. Yellow B-190RH Side Decal. Yellow B-190
-
6516002583 LH Side Decal. Black B-160LH Side Decal. Black B-160
-
6516002585 LH Side Decal. Yellow B-190LH Side Decal. Yellow B-190
-
7516002643 Windshield Decal. Black B-160Windshield Decal. Black B-160
-
7516002709 Windshield Decal. Yellow B-190Windshield Decal. Yellow B-190
-
8516002620 Forming Frame Decal 162''Forming Frame Decal 162''
-
9516001335 Dess DecalDess Decal
-
10516002672 Label Security, Passenger NumberLabel Security, Passenger Number
-
11516002641 Label Security, GeneralLabel Security, General
-
12516002671 Label Security, FamiliarizationLabel Security, Familiarization
-
13516002642 Label Security, StartingLabel Security, Starting
-
14516001980 Bombardier Decal. Black B-160Bombardier Decal. Black B-160
-
14516002655 Bombardier Trunk Decal. Yellow B-190Bombardier Trunk Decal. Yellow B-190
-
15516002590 RH Lower Rear Decal. Black B-160RH Lower Rear Decal. Black B-160
-
15516002592 RH Lower Rear Decal. Yellow B-190RH Lower Rear Decal. Yellow B-190
-
16516002591 LH Lower Rear Decal. Black B-160LH Lower Rear Decal. Black B-160
-
16516002593 LH Lower Rear Decal. Yellow B-190LH Lower Rear Decal. Yellow B-190
-
17516002703 Decal, Europe. EuropeDecal, Europe. Europe
-
18516002664 Security LabelSecurity Label
-
19516001910 RH Protector DecalRH Protector Decal
-
20516001911 LH Protector DecalLH Protector Decal
