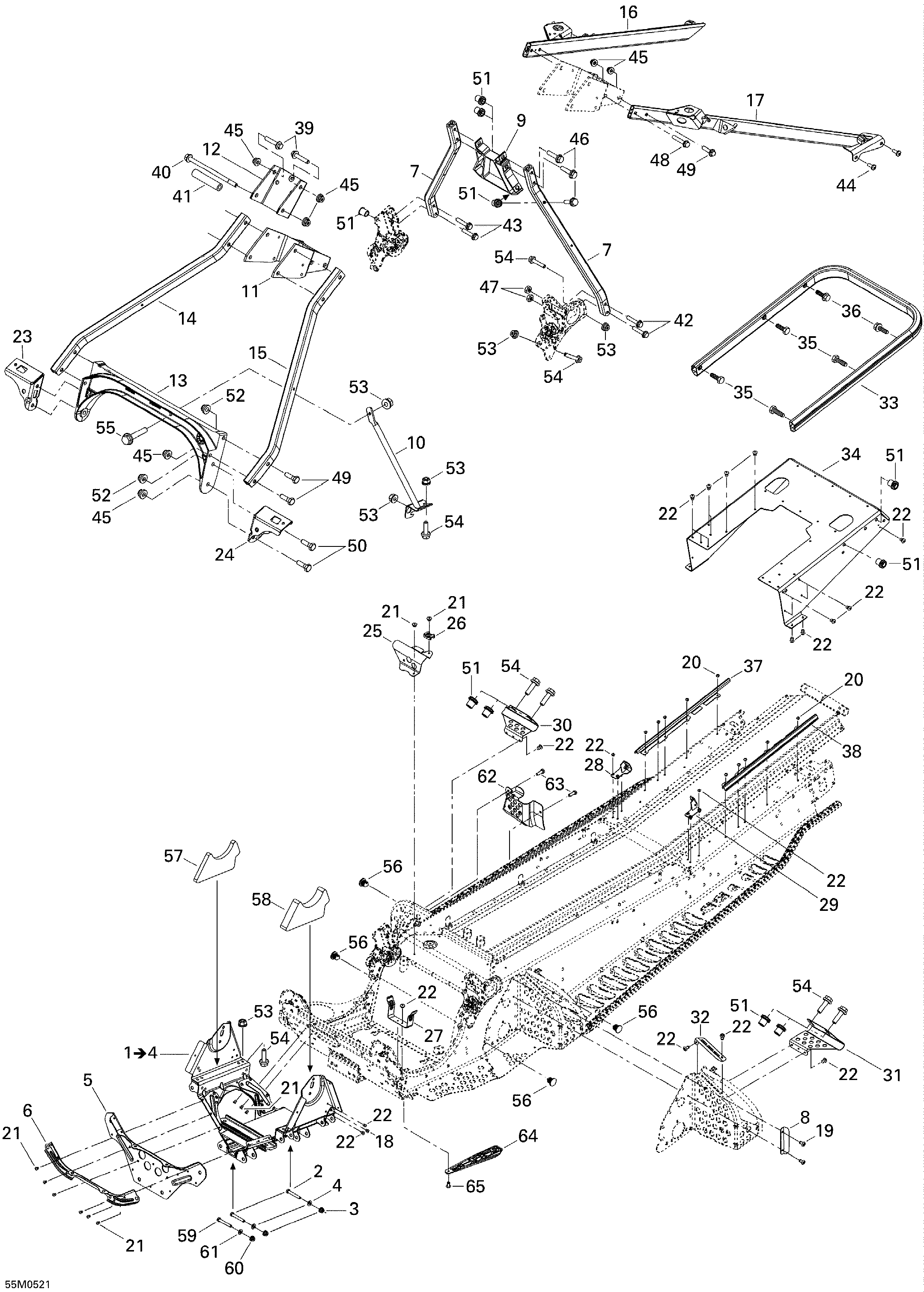

09- Frame and Components для BRP Ski-Doo Summit 1000 SDI, Highmark & Highmark X - 2005
-
№АртикулНазвание
-
1518323541 Front Member Ass'y. Includes 1 To 4Front Member Ass'y. Includes 1 To 4
-
2207085544 Hex Screw M8 X 55Hex Screw M8 X 55
-
3233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
4234081410 Flat Washer 8 mmFlat Washer 8 mm
-
5518324726 Front PlateFront Plate
-
6518324727 Front Plate ReinforcementFront Plate Reinforcement
-
7518324228 Handle SupportHandle Support
-
8518317504 Cable ProtectorCable Protector
-
9518323811 Handle Support ReinforcementHandle Support Reinforcement
-
10518324080 Brace, BlackBrace, Black
-
11518323676 Attachment BracketAttachment Bracket
-
12518324046 Steering Column SupportSteering Column Support
-
13518324265 Upper Cross MemberUpper Cross Member
-
14518324285 RH Front BraceRH Front Brace
-
15518324286 LH Front BraceLH Front Brace
-
16518323352 RH MemberRH Member
-
17518323354 LH MemberLH Member
-
19390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
20390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
21390909100 Avex RivetAvex Rivet
-
22390909200 Avex RivetAvex Rivet
-
23518324148 RH Shock BracketRH Shock Bracket
-
24518324150 LH Shock BracketLH Shock Bracket
-
25518323584 Hose SupportHose Support
-
26293750031 Tie Rap MountTie Rap Mount
-
27518202100 Belt Guard BracketBelt Guard Bracket
-
28518323769 RH Bracket, BlackRH Bracket, Black
-
29518323770 LH Bracket, BlackLH Bracket, Black
-
30518323948 RH Toe HoldRH Toe Hold
-
31518324392 LH Toe HoldLH Toe Hold
-
32518323105 Plate, BlackPlate, Black
-
33518324525 Rear BumperRear Bumper
-
34518324520 Rear CapRear Cap
-
35236282084 Hex Screw M8 X 20Hex Screw M8 X 20
-
36207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
37518324553 RH Wire ProtectorRH Wire Protector
-
38518324554 LH Wire ProtectorLH Wire Protector
-
39207684044 Hex Flanged Screw M8 X 40Hex Flanged Screw M8 X 40
-
40230684044 Hex. Flanged Screw M8 X 140Hex. Flanged Screw M8 X 140
-
41518324048 SpacerSpacer
-
42207663044 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
43207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
44250000154 Torx Screw M8 X 13Torx Screw M8 X 13
-
45233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
46207663044 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
47232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
48207685044 Hex Flanged Screw M8 X 50Hex Flanged Screw M8 X 50
-
49207683544 Hex Flanged Screw M8 X 35Hex Flanged Screw M8 X 35
-
50207182544 Hex Screw M8 X 25Hex Screw M8 X 25
-
51415107300 InsertInsert
-
52232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
53233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
54207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
55207663544 Hex Flanged Screw M6 X 35Hex Flanged Screw M6 X 35
-
56518321954 Fastener PanelFastener Panel
-
57518324372 RH Front FoamRH Front Foam
-
58518323007 LH Front FoamLH Front Foam
-
59207085544 Hex Screw M8 X 55Hex Screw M8 X 55
-
60233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
61234081410 Flat Washer 8 mmFlat Washer 8 mm
-
62518324609 Footrest ExtensionFootrest Extension
-
63207661644 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
64518324438 Front ProtectorFront Protector
-
65293150104 Pop Rivet 3/16''Pop Rivet 3/16''
