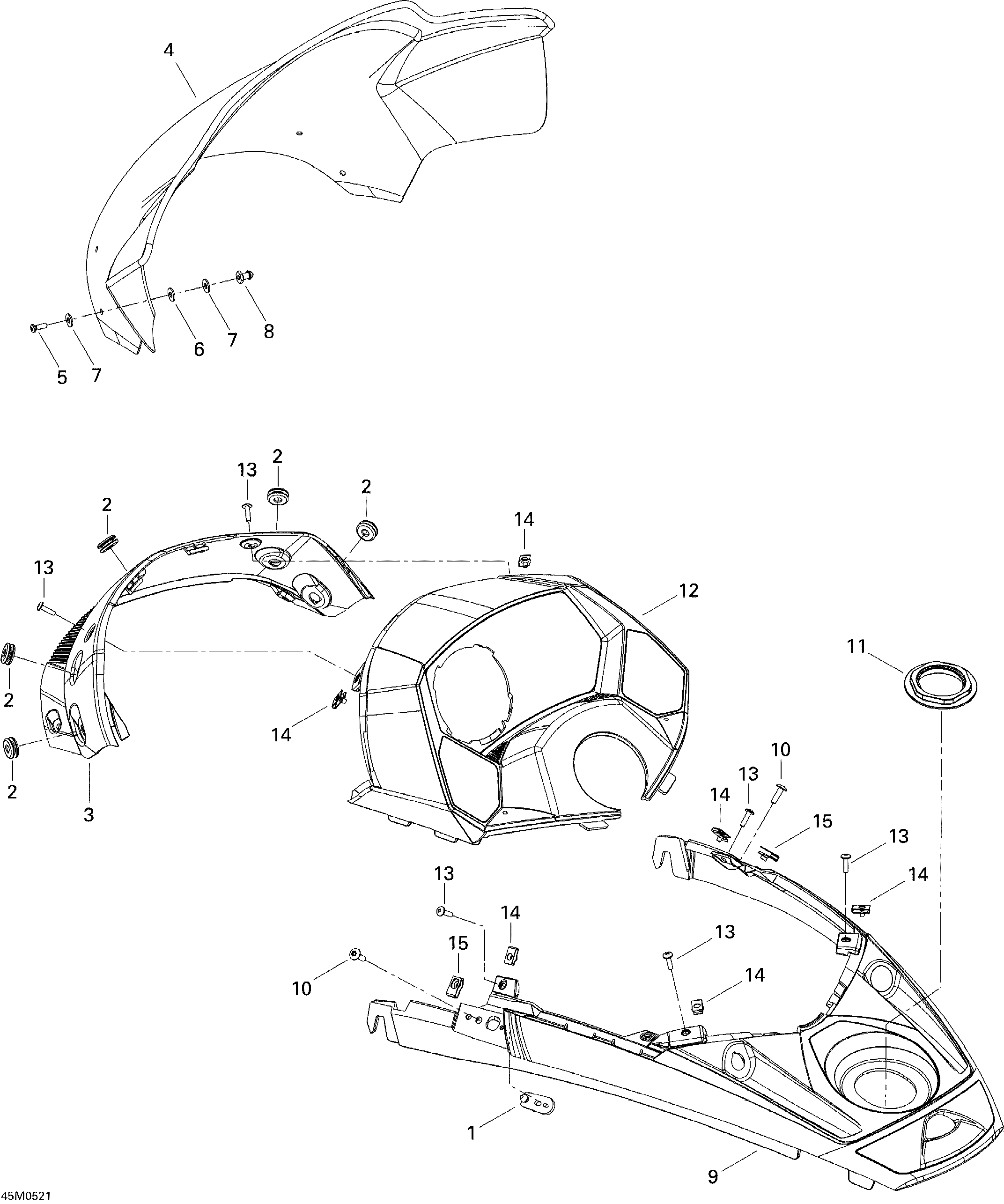

09- Windshield And Console для BRP Ski-Doo Summit 1000 SDI, Highmark & Highmark X - 2005
-
№АртикулНазвание
-
1517302616 Hood LatchHood Latch
-
2517302841 GrommetGrommet
-
3517303219 Indicator Support DoorIndicator Support Door
-
4517303270 High Windshield. HighmarkHigh Windshield. Highmark
-
4517303426 High Windshield. Highmark XHigh Windshield. Highmark X
-
5250000146 Torx Screw K50 X 16Torx Screw K50 X 16
-
6250200024 Rubber Washer M5Rubber Washer M5
-
7250200025 Washer 5 mmWasher 5 mm
-
8517303439 KnobKnob
-
9517303086 Center Console. Highmark X, Black B-160Center Console. Highmark X, Black B-160
-
9517303208 Center Console. Highmark, Black B-160Center Console. Highmark, Black B-160
-
9517303386 Center Console. Highmark, Yellow B-190Center Console. Highmark, Yellow B-190
-
9517303387 Center Console. Highmark X, Yellow B-190Center Console. Highmark X, Yellow B-190
-
10250000128 Torx Screw M6 X 20Torx Screw M6 X 20
-
11517302575 Console NutConsole Nut
-
12517303358 Indicator SupportIndicator Support
-
13250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
14250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
15250000048 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
