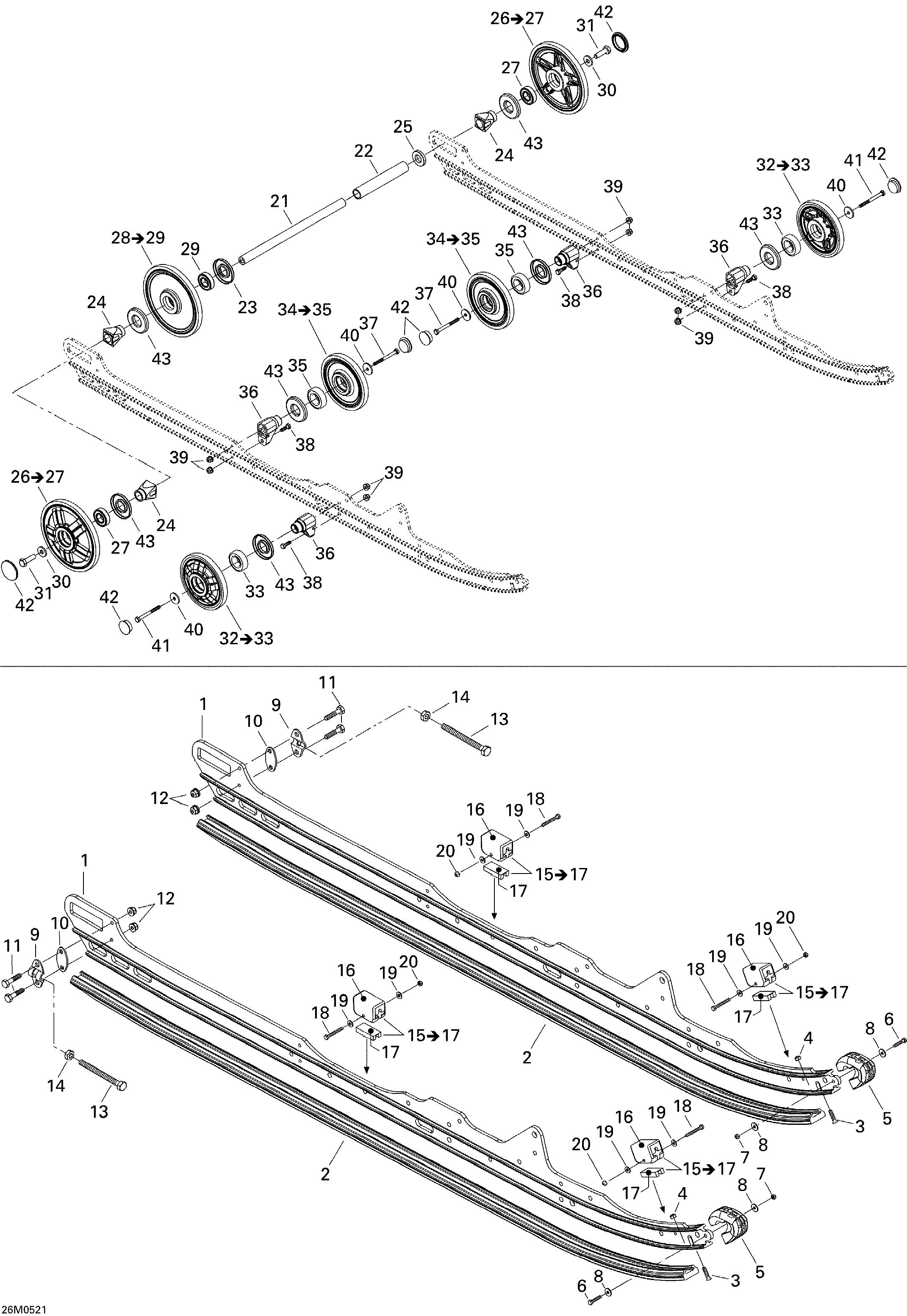

08- Rear Suspension для BRP Ski-Doo Summit 1000 SDI, Highmark & Highmark X - 2005
-
№АртикулНазвание
-
1503190818 Runner 162Runner 162
-
2503190864 Shoe Slider 162'', Yellow. Yellow B-190Shoe Slider 162'', Yellow. Yellow B-190
-
2503190866 Shoe Slider 162'', Black. Black B-160Shoe Slider 162'', Black. Black B-160
-
3208562560 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5572075400 Runner ProtectorRunner Protector
-
6207152544 Hex Screw M5 X 25Hex Screw M5 X 25
-
7232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
8391301600 WasherWasher
-
9503155300 TensionerTensioner
-
10503189160 Tensioner SpacerTensioner Spacer
-
11207063044 Hex Screw M6 X 30Hex Screw M6 X 30
-
12233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
13230100044 Hex Screw M10 X 100Hex Screw M10 X 100
-
14233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
15503190905 Rubber Stopper Ass'y. Includes 15 to 17Rubber Stopper Ass'y. Includes 15 to 17
-
16570063000 Rubber StopperRubber Stopper
-
17572084800 Reinforcement StopperReinforcement Stopper
-
18207054044 Hex Screw M5 X 40Hex Screw M5 X 40
-
19391301700 WasherWasher
-
20232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
21503190429 Rear AxleRear Axle
-
22503190430 Rear Long SpacerRear Long Spacer
-
23503190682 Labyrinth SealLabyrinth Seal
-
24503190428 Rear Wheel SpacerRear Wheel Spacer
-
25503190432 WasherWasher
-
26503190342 Wheel 180, Yellow With Pattern. Includes 26 to 27Wheel 180, Yellow With Pattern. Includes 26 to 27
-
27503190396 Ball BearingBall Bearing
-
28503190395 Wheel 180. Includes 28 to 29Wheel 180. Includes 28 to 29
-
29503190396 Ball BearingBall Bearing
-
30503190439 WasherWasher
-
31250000019 Hex Screw With NylonHex Screw With Nylon
-
32503190579 Wheel 141, Yellow With Pattern. Includes 32 to 33Wheel 141, Yellow With Pattern. Includes 32 to 33
-
33503190396 Ball BearingBall Bearing
-
34503190577 Wheel 141. Includes 34 to 35Wheel 141. Includes 34 to 35
-
35503190396 Ball BearingBall Bearing
-
36503190580 Support 141-20Support 141-20
-
37207088044 Hex Screw M8 X 80Hex Screw M8 X 80
-
38207182544 Hex Screw M8 X 25Hex Screw M8 X 25
-
39233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
40211200041 WasherWasher
-
41207087544 Hex Screw M8 X 75Hex Screw M8 X 75
-
42570063600 Wheel CapWheel Cap
-
43503190434 Labyrinth SealLabyrinth Seal
