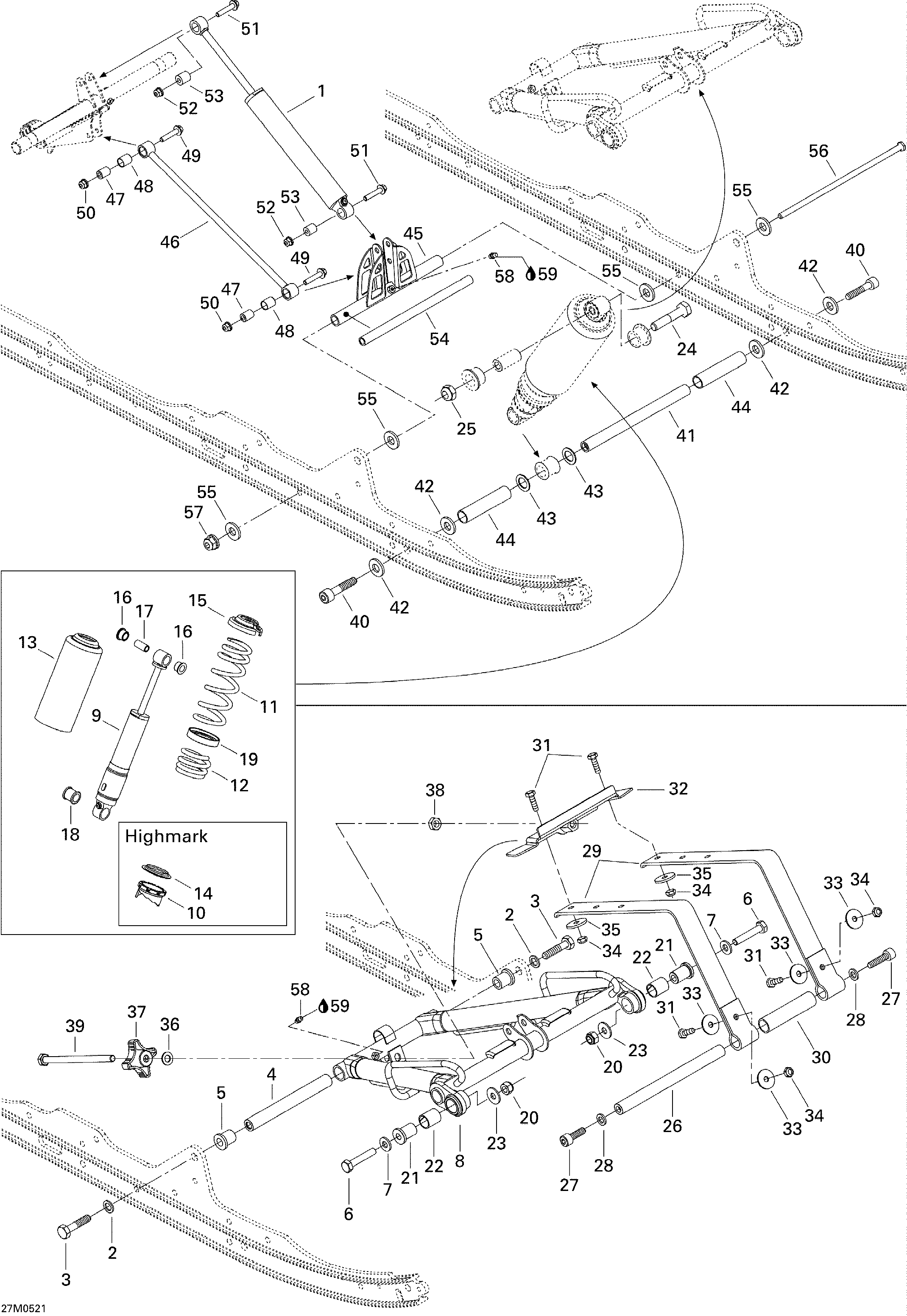

08- Front Arm для BRP Ski-Doo Summit 1000 SDI, Highmark & Highmark X - 2005
-
№АртикулНазвание
-
1503190989 Rear Shock. HighmarkRear Shock. Highmark
-
1503190990 Rear Shock. Highmark X & EuropeRear Shock. Highmark X & Europe
-
2503189276 WasherWasher
-
3207226044 Hex Screw M12 X 60, Scotch GripHex Screw M12 X 60, Scotch Grip
-
4503189313 ShaftShaft
-
5503189323 CushionCushion
-
6207005544 Hex Screw M10 X 55Hex Screw M10 X 55
-
7732900049 WasherWasher
-
8503190840 Front ArmFront Arm
-
9503190834 Center Shock. HighmarkCenter Shock. Highmark
-
9503190662 Center Shock. Highmark X & EuropeCenter Shock. Highmark X & Europe
-
10503183700 Cam 45°. HighmarkCam 45°. Highmark
-
11503190854 SpringSpring
-
12503190982 SpringSpring
-
13503188930 ProtectorProtector
-
14517184300 Spring Guide. HighmarkSpring Guide. Highmark
-
15503140600 Spring StopperSpring Stopper
-
16503189117 CushionCushion
-
17503189282 BushingBushing
-
18503189271 CushionCushion
-
19505071685 Spring SpacerSpring Spacer
-
20233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
21503190373 ExtensionExtension
-
22503190474 Extended BushingExtended Bushing
-
23506151251 WasherWasher
-
24207005044 Hex Screw M10 X 50Hex Screw M10 X 50
-
25233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
26503189562 AxleAxle
-
27205503544 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
28503189564 WasherWasher
-
29503190806 Stopper StrapStopper Strap
-
30503189936 SpacerSpacer
-
31207682544 Hex Flanged Screw M8 X 25Hex Flanged Screw M8 X 25
-
32503189806 Belt BracketBelt Bracket
-
33224081301 Flat WasherFlat Washer
-
34233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
35503183100 WasherWasher
-
36503183800 WasherWasher
-
37572034000 Adjuster KnobAdjuster Knob
-
38232006414 Hex Nut M10Hex Nut M10
-
39250000062 Bolt, LongBolt, Long
-
40205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
41503189272 Center Shock ShaftCenter Shock Shaft
-
42503189276 WasherWasher
-
43503189273 WasherWasher
-
44503189274 SpacerSpacer
-
45503189545 Pivot Arm, BlackPivot Arm, Black
-
46503189547 Throttle RodThrottle Rod
-
47503189133 Rod AxleRod Axle
-
48503189625 CushionCushion
-
49207684044 Hex Flanged Screw M8 X 40Hex Flanged Screw M8 X 40
-
50250100025 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
51207684044 Hex Flanged Screw M8 X 40Hex Flanged Screw M8 X 40
-
52250100025 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
53414936000 CushionCushion
-
54503189156 Pivot Arm AxlePivot Arm Axle
-
55503189157 WasherWasher
-
56732601198 Long Bolt M8Long Bolt M8
-
57250100025 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
58408200700 Grease FittingGrease Fitting
-
59219700417 Synthetic Grease, 400gSynthetic Grease, 400g
