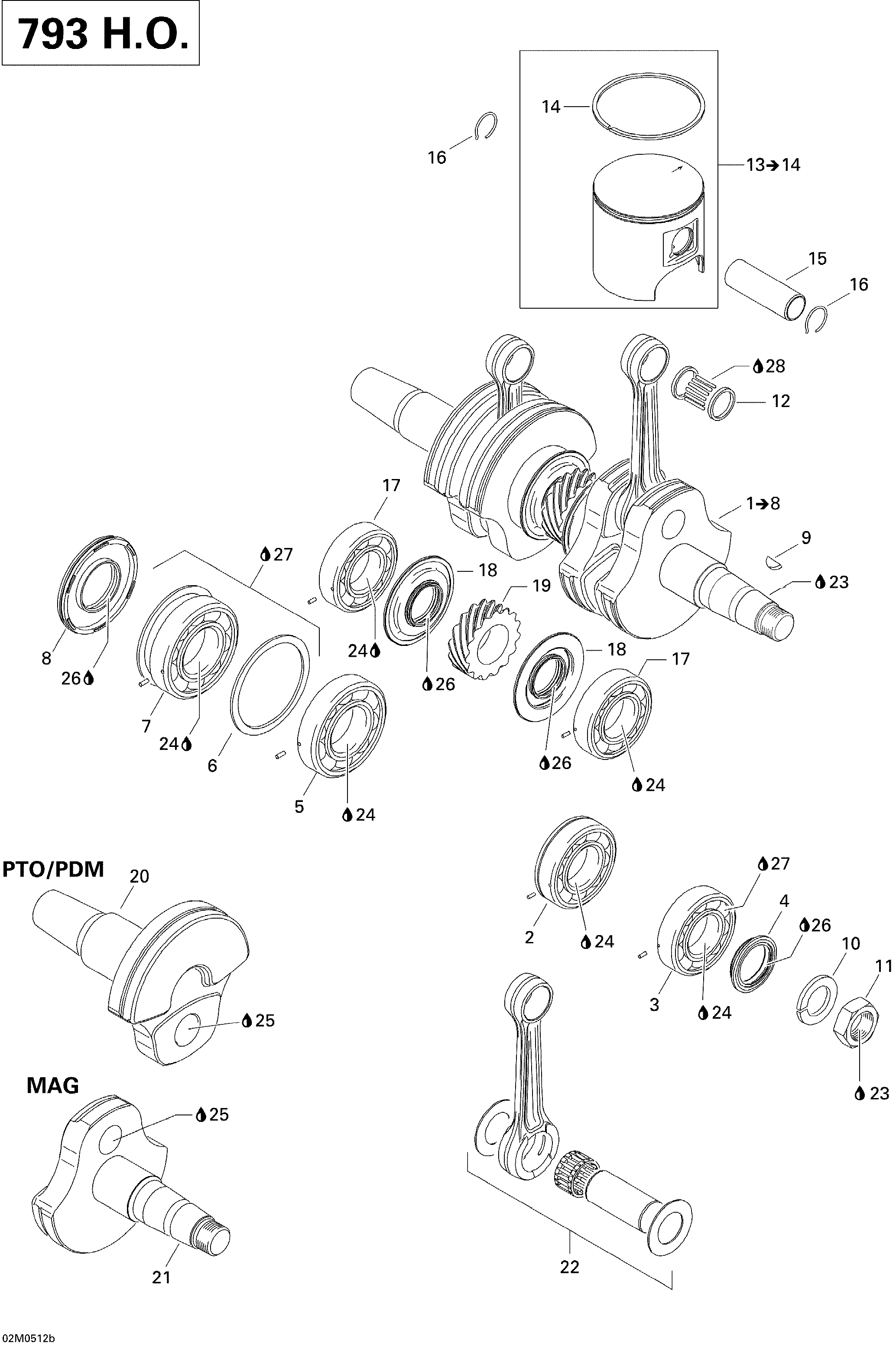

01- Crankshaft And Pistons 793HO для BRP Ski-Doo Summit 800 HO - 2005
-
№АртикулНазвание
-
1420889675 Crankshaft. Includes 1 to 8Crankshaft. Includes 1 to 8
-
2420832638 Ball BearingBall Bearing
-
3420832575 Ball BearingBall Bearing
-
4420931792 Oil SealOil Seal
-
5420832608 Ball BearingBall Bearing
-
6420926190 WasherWasher
-
7420832700 Ball BearingBall Bearing
-
8420931285 Oil SealOil Seal
-
9420246015 Woodruff KeyWoodruff Key
-
10420945759 Lock Washer 22 mmLock Washer 22 mm
-
11420842234 Hex Nut M22Hex Nut M22
-
12420832428 Needle BearingNeedle Bearing
-
13420889456 Piston Ass'y With Rings, 81.87 mm. Includes 13 to 14Piston Ass'y With Rings, 81.87 mm. Includes 13 to 14
-
14420815360 Semi-trapez RingSemi-trapez Ring
-
15420916371 Gudgeon PinGudgeon Pin
-
16420845106 Piston CirclipPiston Circlip
-
17420832575 Ball BearingBall Bearing
-
18420931455 Oil SealOil Seal
-
19420834355 Central GearCentral Gear
-
20420819032 Crankshaft, PTOCrankshaft, PTO
-
21420819061 Crankshaft, MagCrankshaft, Mag
-
22420684653 Rod Repair Kit, Mag SideRod Repair Kit, Mag Side
-
22420684654 Rod Repair Kit, PTO SideRod Repair Kit, PTO Side
-
23293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
24293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
25413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
26420899271 Petamo Grease, Ghy133n, 400 GPetamo Grease, Ghy133n, 400 G
-
27293550021 Isoflex Grease, 50 GIsoflex Grease, 50 G
-
28413802900 Injection Oil (12 X 1 Liter)Injection Oil (12 X 1 Liter)
