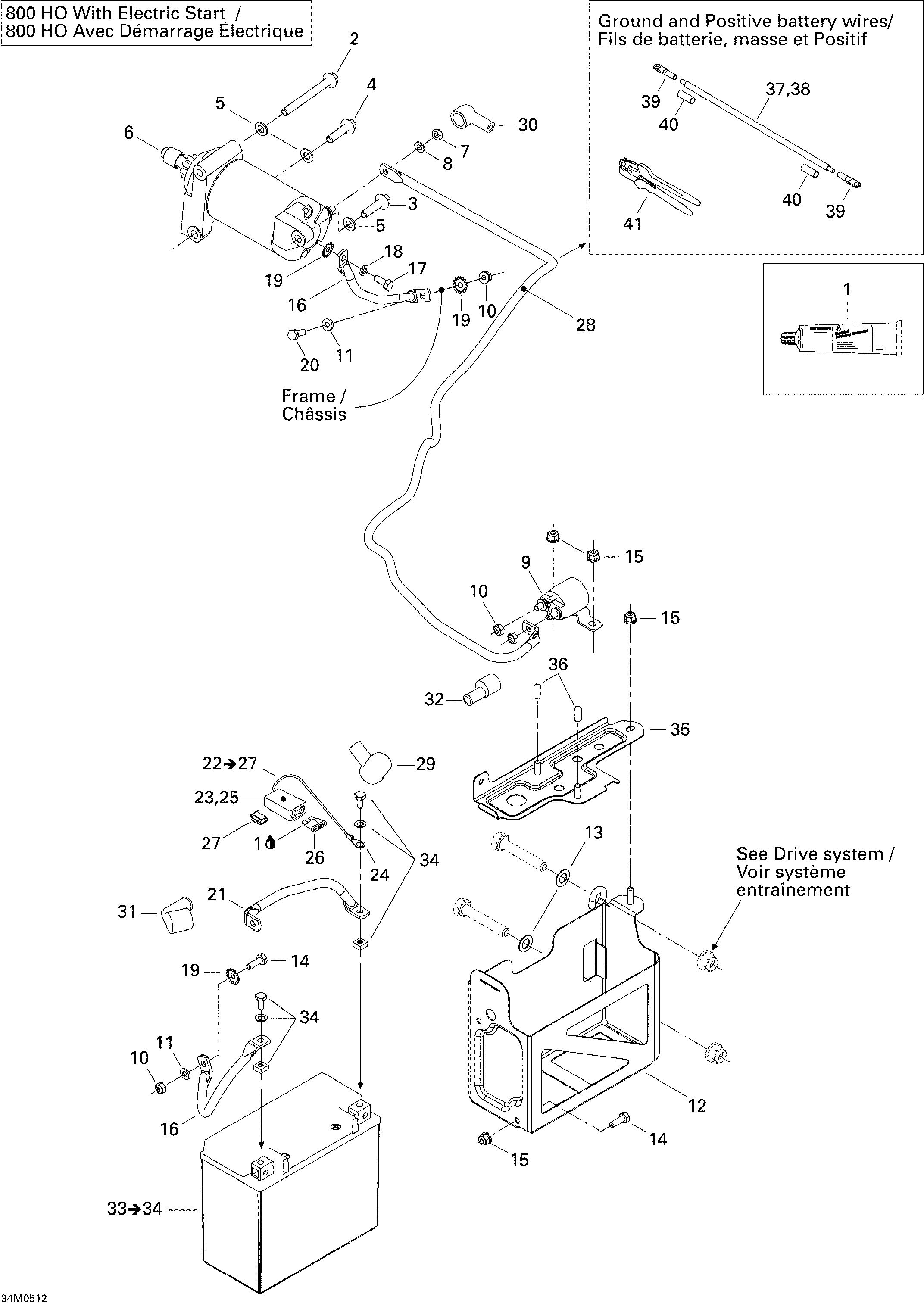

10- Battery And Starter 800 HO для BRP Ski-Doo Summit 800 HO - 2005
-
№АртикулНазвание
-
1293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
2207587544 Hex Flanged Screw M8 X 75 (Scotch Grip)Hex Flanged Screw M8 X 75 (Scotch Grip)
-
3207583044 Hex Flanged Screw M8 X 30 (scotch Grip)Hex Flanged Screw M8 X 30 (scotch Grip)
-
4207583044 Hex Flanged Screw M8 X 30 (scotch Grip)Hex Flanged Screw M8 X 30 (scotch Grip)
-
5250200008 Flat Washer 8 mmFlat Washer 8 mm
-
6515176003 Starter Ass'YStarter Ass'Y
-
7232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
8234061410 Flat Washer 6 mmFlat Washer 6 mm
-
9515176011 Starter RelayStarter Relay
-
10232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
11234061410 Flat Washer 6 mmFlat Washer 6 mm
-
12515176230 Battery Support BlackBattery Support Black
-
13503175800 WasherWasher
-
14207161844 Hex Screw M6 X 18Hex Screw M6 X 18
-
15233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
16515175749 Ground WireGround Wire
-
17207361644 Hex Screw M6 X 16 (Scotch Grip)Hex Screw M6 X 16 (Scotch Grip)
-
18234061410 Flat Washer 6 mmFlat Washer 6 mm
-
19250200041 Serrated Lock Washer 6 mmSerrated Lock Washer 6 mm
-
20207162044 Hex Screw M6 X 20Hex Screw M6 X 20
-
21515175904 Battery WireBattery Wire
-
22515175489 Battery Fuse Wire. Includes 22 to 27Battery Fuse Wire. Includes 22 to 27
-
23409004200 Female TerminalFemale Terminal
-
24278000992 Ring TerminalRing Terminal
-
25409004000 Fuse HolderFuse Holder
-
26410917200 Fuse (30 Amperes)Fuse (30 Amperes)
-
27409014200 ClipClip
-
29570151000 Protection CapProtection Cap
-
30278001771 Protector CapProtector Cap
-
31570064200 Protection CapProtection Cap
-
32515175919 Protector CapProtector Cap
-
33410301203 Battery 18 Amperes. Includes 33 to 34Battery 18 Amperes. Includes 33 to 34
-
34295500849 Battery Fastener KitBattery Fastener Kit
-
35515175735 Battery StripBattery Strip
-
36515176141 CapCap
-
37278001680 Ground Cable, Black (no 6) (meter)Ground Cable, Black (no 6) (meter)
-
38278001690 Positive Cable, Red (no 6) (meter)Positive Cable, Red (no 6) (meter)
-
39278001682 Flat Terminal (Small Hole)Flat Terminal (Small Hole)
-
39278001683 Terminal 45° (Small Hole)Terminal 45° (Small Hole)
-
39278001684 Terminal 90° (Small Hole)Terminal 90° (Small Hole)
-
39278001685 Flat Terminal (Big Hole)Flat Terminal (Big Hole)
-
39278001686 Terminal 45° (Big Hole)Terminal 45° (Big Hole)
-
39278001687 Terminal 90° (Big Hole)Terminal 90° (Big Hole)
-
39278001688 Flat TerminalFlat Terminal
-
39278001776 Terminal 30° (2 Holes)Terminal 30° (2 Holes)
-
40278001692 Heat ShrinkHeat Shrink
-
41529035730 Crimp PlierCrimp Plier
