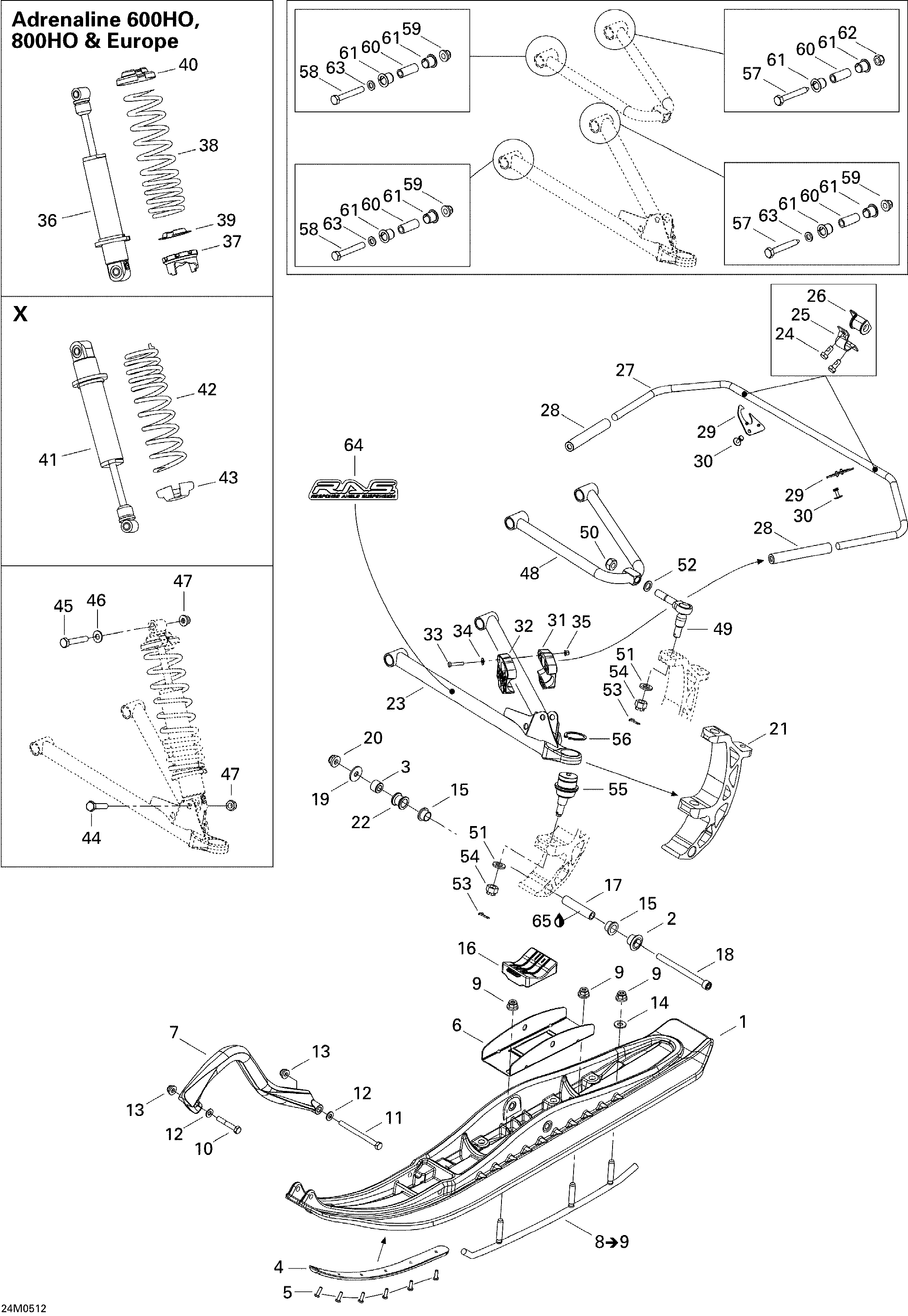

07- Front Suspension And Ski 800HO для BRP Ski-Doo Summit 800 HO - 2005
-
№АртикулНазвание
-
1505071712 RH Ski Ass'y. X, Adrenaline 600 H.O., 800 H.O. & EuropeRH Ski Ass'y. X, Adrenaline 600 H.O., 800 H.O. & Europe
-
1505071714 RH Ski Ass'y. XRH Ski Ass'y. X
-
1505071713 LH Ski Ass'y. X, Adrenaline 600 H.O., 800 H.O. & EuropeLH Ski Ass'y. X, Adrenaline 600 H.O., 800 H.O. & Europe
-
1505071715 LH Ski Ass'y. XLH Ski Ass'y. X
-
2505070743 CushionCushion
-
3505070823 CushionCushion
-
4505071595 Proactive ControlProactive Control
-
5250000016 Phillips Pan Head Quadrex ScrewPhillips Pan Head Quadrex Screw
-
6505070745 Ski RenforcementSki Renforcement
-
7505070917 Handle, Yellow. Yellow B-190Handle, Yellow. Yellow B-190
-
7505070963 Handle, Black. Black B-160Handle, Black. Black B-160
-
8860504800 Carbide Runner. Includes 8 to 9Carbide Runner. Includes 8 to 9
-
9233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
10207085044 Hex Screw M8 X 50Hex Screw M8 X 50
-
11230080044 Hex Screw M8 X 100Hex Screw M8 X 100
-
12234081410 Flat Washer 8 mmFlat Washer 8 mm
-
13233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
14399910100 Flat WasherFlat Washer
-
15505070954 CushionCushion
-
16505071632 Ski StopperSki Stopper
-
17506133300 SpacerSpacer
-
18250000069 Socket Head Screw M10 X 125Socket Head Screw M10 X 125
-
19234002410 Flat Washer 10 mmFlat Washer 10 mm
-
20732610084 Flanged Nut M10Flanged Nut M10
-
21505071248 Ski LegSki Leg
-
22505071215 SpacerSpacer
-
23860509800 RH Lower ArmRH Lower Arm
-
23860509900 LH Lower ArmLH Lower Arm
-
24250000118 Hex Screw With NylonHex Screw With Nylon
-
25506095800 ClampClamp
-
26505070664 LH Torsion Bar BushingLH Torsion Bar Bushing
-
26505070912 RH Torsion Bar BushingRH Torsion Bar Bushing
-
27505070948 StabilisatorStabilisator
-
28505071039 Sway Bar EndSway Bar End
-
29505071253 PlugPlug
-
30293150103 Rivet Pop 3/16''Rivet Pop 3/16''
-
31505071268 RH Slider HalfRH Slider Half
-
32505071269 LH Slider HalfLH Slider Half
-
33207152544 Hex Screw M5 X 25Hex Screw M5 X 25
-
34391301700 WasherWasher
-
35233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
36505071460 Front Shock. X, Adrenaline 600 H.O., 800 H.O. & EuropeFront Shock. X, Adrenaline 600 H.O., 800 H.O. & Europe
-
37505070150 Cam 45°. X, Adrenaline 600 H.O., 800 H.O. & EuropeCam 45°. X, Adrenaline 600 H.O., 800 H.O. & Europe
-
38505071461 Spring. X, Adrenaline 600 H.O., 800 H.O. & EuropeSpring. X, Adrenaline 600 H.O., 800 H.O. & Europe
-
39517184300 Spring Guide. X, Adrenaline 600 H.O., 800 H.O. & EuropeSpring Guide. X, Adrenaline 600 H.O., 800 H.O. & Europe
-
40503140600 Spring Stopper. X, Adrenaline 600 H.O., 800 H.O. & EuropeSpring Stopper. X, Adrenaline 600 H.O., 800 H.O. & Europe
-
41505071644 Front Shock. XFront Shock. X
-
42505071642 Spring. XSpring. X
-
43503140600 Spring Stopper. XSpring Stopper. X
-
44207005544 Hex Screw M10 X 55Hex Screw M10 X 55
-
45207006044 Hex Screw M10 X 60Hex Screw M10 X 60
-
46503189564 WasherWasher
-
47233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
48505071581 Upper ArmUpper Arm
-
49505071679 Upper Ball JointUpper Ball Joint
-
50250000047 Elastic Stop Nut M12Elastic Stop Nut M12
-
51234021410 Flat Washer 12 mmFlat Washer 12 mm
-
52503189276 WasherWasher
-
53211400017 Cotter PinCotter Pin
-
54232221414 Hex Castellated Nut M12Hex Castellated Nut M12
-
55505071658 Ball JointBall Joint
-
56293370035 CirclipCirclip
-
57250000216 Cone Screw M10 X 75Cone Screw M10 X 75
-
58250000218 Hex Screw M10 X 75Hex Screw M10 X 75
-
59250100073 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
60505070567 BushingBushing
-
61505070566 Arm BushingArm Bushing
-
62232501416 Elastic Stop Nut M10Elastic Stop Nut M10
-
63503189564 WasherWasher
-
64516002747 R.a.s. Suspension DecalR.a.s. Suspension Decal
-
65219700417 Synthetic Grease, 400gSynthetic Grease, 400g
