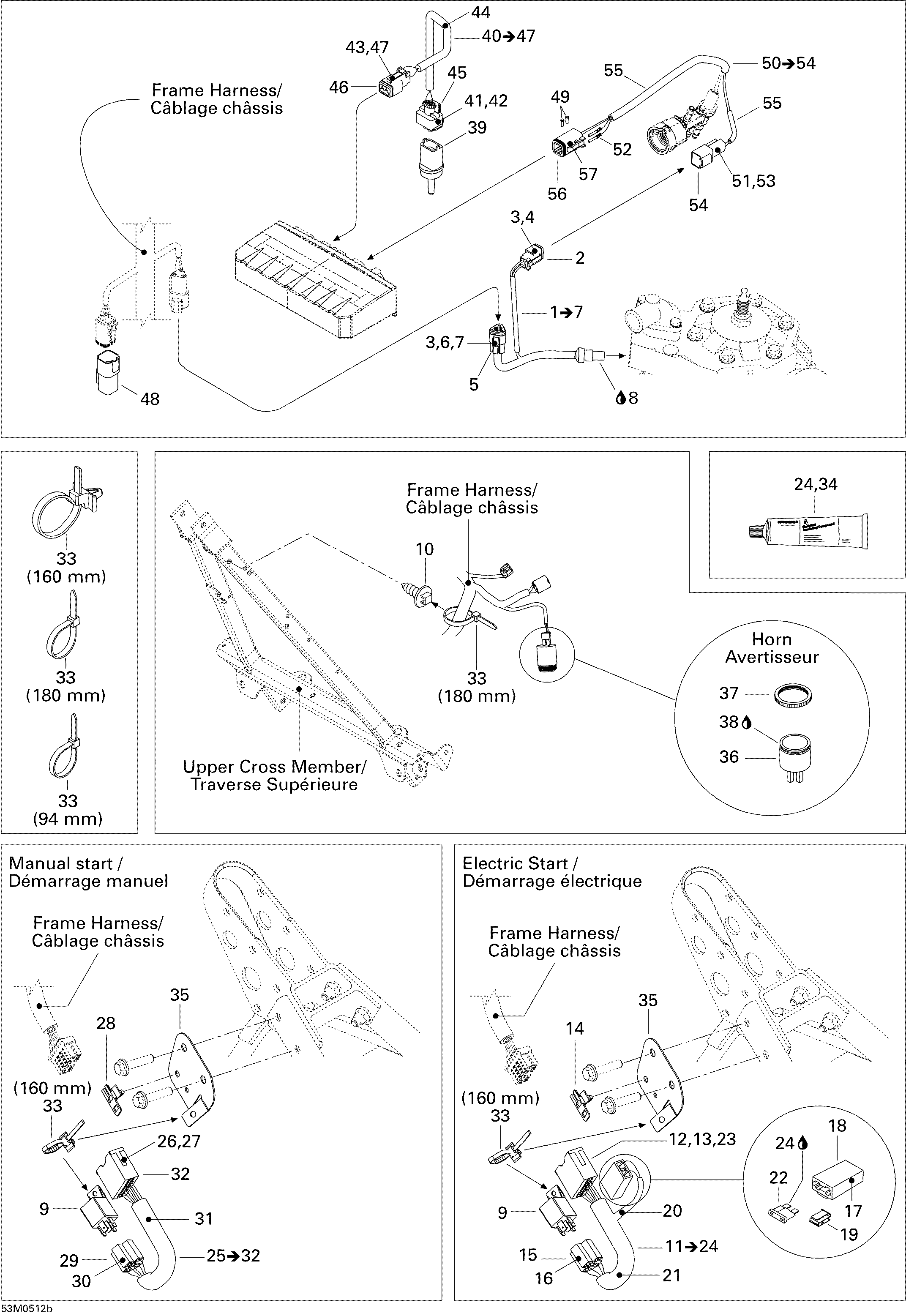

10- Electrical Accessories 2 для BRP Ski-Doo Summit 800 HO - 2005
-
№АртикулНазвание
-
1515176041 Temperature Sensor. Includes 1 to 7Temperature Sensor. Includes 1 to 7
-
2515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
3278000632 Female TerminalFemale Terminal
-
4515175675 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
5515175671 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
6515175676 Female Lock, 3 CircuitsFemale Lock, 3 Circuits
-
7293000052 Sealing CapSealing Cap
-
8293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
9410113200 RelayRelay
-
10293730018 Mount DartMount Dart
-
11515175721 Configuration Harness Ass'Y. Electric Start, Includes 11 to 24Configuration Harness Ass'Y. Electric Start, Includes 11 to 24
-
12515175232 Male TerminalMale Terminal
-
13515175273 Male TerminalMale Terminal
-
14515175283 Housing SupportHousing Support
-
15409209900 Female Terminal Housing (5 Circuits)Female Terminal Housing (5 Circuits)
-
16561503100 Female TerminalFemale Terminal
-
17409011600 Female TerminalFemale Terminal
-
18409004000 Fuse HolderFuse Holder
-
19409014200 ClipClip
-
20515175442 Tubing, 6 mmTubing, 6 mm
-
21409901800 Tubing, 13 mmTubing, 13 mm
-
22278000344 Fuse (5 Amperes)Fuse (5 Amperes)
-
23515175720 Male Terminal Housing (11 Circuits)Male Terminal Housing (11 Circuits)
-
24293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
25515176175 Configuration Harness. Manual Start, Includes 25 to 32Configuration Harness. Manual Start, Includes 25 to 32
-
26515175232 Male TerminalMale Terminal
-
27515175273 Male TerminalMale Terminal
-
28515175283 Housing SupportHousing Support
-
29409209900 Female Terminal Housing (5 Circuits)Female Terminal Housing (5 Circuits)
-
30561503100 Female TerminalFemale Terminal
-
31409901800 Tubing, 13 mmTubing, 13 mm
-
32515175720 Male Terminal Housing (11 Circuits)Male Terminal Housing (11 Circuits)
-
33414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
33293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
33293750009 Tie Rap 160 mmTie Rap 160 mm
-
34293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
35515176020 Harness SupportHarness Support
-
36515176035 HornHorn
-
37414805101 Plastic NutPlastic Nut
-
38296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
39270600000 Air SensorAir Sensor
-
40515175703 Temperature Harness. Includes 40 to 47Temperature Harness. Includes 40 to 47
-
41278000998 Female TerminalFemale Terminal
-
42278000999 SealSeal
-
43278000632 Female TerminalFemale Terminal
-
44515175332 Low Temperature Tubing, VinylLow Temperature Tubing, Vinyl
-
45515175588 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
46515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
47515175706 Female Lock (2 Circuits)Female Lock (2 Circuits)
-
48515176234 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
49293000052 Sealing CapSealing Cap
-
50515175822 Sensor Harness. Includes 50 to 54Sensor Harness. Includes 50 to 54
-
51278000631 Male TerminalMale Terminal
-
52278000632 Female TerminalFemale Terminal
-
53409207500 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
54515175665 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
55409901300 Low Temperature TubingLow Temperature Tubing
-
56515175673 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
57515175678 Female Lock, 6 CircuitsFemale Lock, 6 Circuits
