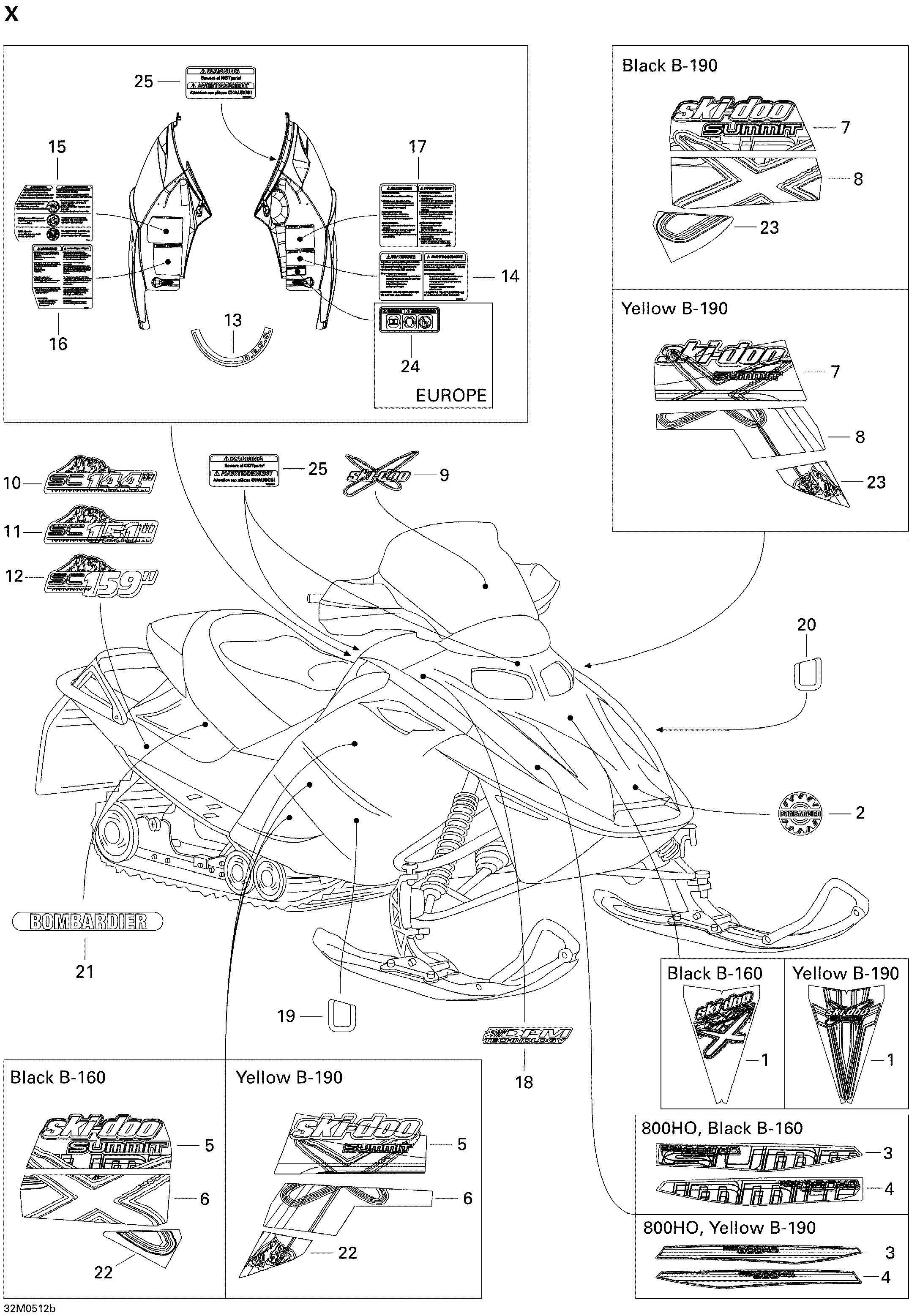

09- Decals X для BRP Ski-Doo Summit 800 HO - 2005
-
№АртикулНазвание
-
1516002424 Hood Decal. Black, B-160Hood Decal. Black, B-160
-
1516002425 Hood Decal. Yellow, B-190Hood Decal. Yellow, B-190
-
2516000983 Logo «bombardier»Logo «bombardier»
-
3516002426 RH Hood Decal 800ho. 800 H.O., Black, B-160RH Hood Decal 800ho. 800 H.O., Black, B-160
-
3516002428 RH Hood Decal 800ho. 800 H.O., Yellow, B-190RH Hood Decal 800ho. 800 H.O., Yellow, B-190
-
4516002427 LH Hood Decal 800ho. 800 H.O., Black, B-160LH Hood Decal 800ho. 800 H.O., Black, B-160
-
4516002429 LH Hood Decal 800ho. 800 H.O., Yellow, B-190LH Hood Decal 800ho. 800 H.O., Yellow, B-190
-
5516002430 RH Lateral Decal. Black, B-160RH Lateral Decal. Black, B-160
-
5516002432 RH Lateral Decal. Yellow, B-190RH Lateral Decal. Yellow, B-190
-
6516002434 RH Lower Lateral Decal. Black, B-160RH Lower Lateral Decal. Black, B-160
-
6516002436 RH Lower Lateral Decal. Yellow, B-190RH Lower Lateral Decal. Yellow, B-190
-
7516002431 LH Lateral Decal. Black, B-160LH Lateral Decal. Black, B-160
-
7516002433 LH Lateral Decal. Yellow, B-190LH Lateral Decal. Yellow, B-190
-
8516002435 LH Lower Lateral Decal. Black, B-160LH Lower Lateral Decal. Black, B-160
-
8516002437 LH Lower Lateral Decal. Yellow, B-190LH Lower Lateral Decal. Yellow, B-190
-
9516002643 Windshield Decal. Black, B-160Windshield Decal. Black, B-160
-
9516002709 Windshield Decal. Yellow, B-190Windshield Decal. Yellow, B-190
-
10516002553 Forming Frame Decal 144''. Track 144''Forming Frame Decal 144''. Track 144''
-
11516002554 Forming Frame Decal 151''. Track 151''Forming Frame Decal 151''. Track 151''
-
12516002555 Forming Frame Decal 159''. Track 159''Forming Frame Decal 159''. Track 159''
-
13516001335 Dess DecalDess Decal
-
14516002672 Label Security, Passenger NumberLabel Security, Passenger Number
-
15516002641 Label Security, GeneralLabel Security, General
-
16516002671 Label Security, FamiliarizationLabel Security, Familiarization
-
17516002642 Label Security, StartingLabel Security, Starting
-
18516002710 DPM Decal. DPM, Black, B-160DPM Decal. DPM, Black, B-160
-
19516001910 RH Protector DecalRH Protector Decal
-
20516001911 LH Protector DecalLH Protector Decal
-
21516001980 Bombardier Decal. Black, B-160Bombardier Decal. Black, B-160
-
21516002655 Bombardier Trunk Decal. Labrador Blue, B-226Bombardier Trunk Decal. Labrador Blue, B-226
-
22516002438 RH Lower Side Decal. Black, B-160RH Lower Side Decal. Black, B-160
-
22516002440 RH Lower Side Decal. Yellow, B-190RH Lower Side Decal. Yellow, B-190
-
23516002439 LH Lower Side Decal. Black, B-160LH Lower Side Decal. Black, B-160
-
23516002441 LH Lower Side Decal. Yellow, B-190LH Lower Side Decal. Yellow, B-190
-
24516002703 Decal, Europe. EuropeDecal, Europe. Europe
-
25516002664 Security LabelSecurity Label
