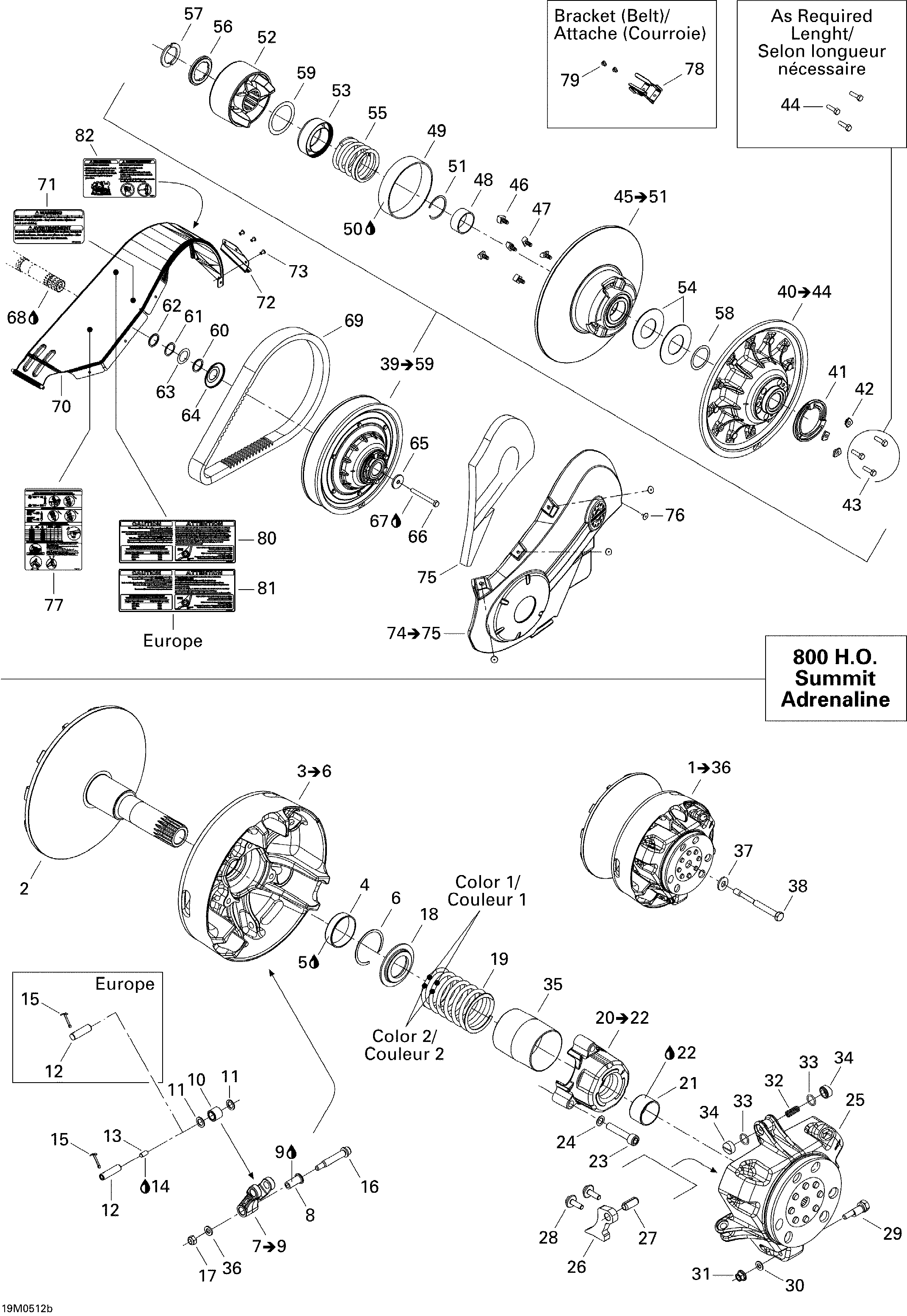

05- Pulley System 800HO ADRENALINE для BRP Ski-Doo Summit 800 HO - 2005
-
№АртикулНазвание
-
2417222167 Fixed FlangeFixed Flange
-
3417222171 Sliding Flange Ass'y. Includes 3 to 6Sliding Flange Ass'y. Includes 3 to 6
-
4417222758 BushingBushing
-
5413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
6293370037 CirclipCirclip
-
7417222671 Lever Ass'y. Includes 7 to 9Lever Ass'y. Includes 7 to 9
-
8417222633 BushingBushing
-
9413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
10417003900 Roller Ass'yRoller Ass'y
-
11417004302 Stopper WasherStopper Washer
-
12417004308 Pin. 800 H.O. EuropePin. 800 H.O. Europe
-
12417222595 Pin. 800 H.O.Pin. 800 H.O.
-
13206261299 Socket Set Screw M6 X 12. 800 H.O.Socket Set Screw M6 X 12. 800 H.O.
-
14293800060 Loctite 243, 10 ml. 800 H.O.Loctite 243, 10 ml. 800 H.O.
-
15732958001 Cotter PinCotter Pin
-
16417222028 Screw Ass'yScrew Ass'y
-
17232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
18417222312 Spring SeatSpring Seat
-
19415015300 Spring, Violet/yellow. 800 H.O.Spring, Violet/yellow. 800 H.O.
-
19415015400 Spring, Violet/green. 800 H.O. EuropeSpring, Violet/green. 800 H.O. Europe
-
20417007500 Spring Cover Ass'y. Includes 20 to 22Spring Cover Ass'y. Includes 20 to 22
-
21417009204 BushingBushing
-
22413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
23205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
24250200009 Lock Washer 8 mmLock Washer 8 mm
-
25417222213 Governor CupGovernor Cup
-
26417222548 Ramp 415. 800 H.O.Ramp 415. 800 H.O.
-
26417222548 Ramp 415. 800 H.O. EuropeRamp 415. 800 H.O. Europe
-
27250400009 Rolled Pin 10 X 22Rolled Pin 10 X 22
-
28250000059 Hex Flanged Scew M6 X 18Hex Flanged Scew M6 X 18
-
29417005500 Calibration ScrewCalibration Screw
-
30417005600 WasherWasher
-
31233061414 Hex Flanged Nut M6Hex Flanged Nut M6
-
32417005700 SpringSpring
-
33732401030 O-RingO-Ring
-
34417222362 Slider ShoeSlider Shoe
-
35417009205 GuardGuard
-
36234061410 Flat Washer 6 mmFlat Washer 6 mm
-
37250200006 Conical Spring Washer 14 mmConical Spring Washer 14 mm
-
38417120000 Drive Pulley BoltDrive Pulley Bolt
-
40417126603 Fixed Flange Ass'y. Includes 40 to 44Fixed Flange Ass'y. Includes 40 to 44
-
41415005800 Adjustment RingAdjustment Ring
-
42415005900 Adjustment ShimAdjustment Shim
-
43207162544 Hex Screw M6 X 25Hex Screw M6 X 25
-
44207162244 Hex Screw M6 X 22Hex Screw M6 X 22
-
45417126851 Sliding Flange Ass'y. Includes 45 to 51Sliding Flange Ass'y. Includes 45 to 51
-
46417126373 Rear Cam Slider ShoeRear Cam Slider Shoe
-
47417126374 Front Cam Slider ShoeFront Cam Slider Shoe
-
49414978100 BushingBushing
-
50413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
51371911200 CirclipCirclip
-
52417126445 Cam Ass'y. 800 H.O. EuropeCam Ass'y. 800 H.O. Europe
-
52417126445 Cam Ass'y. 800 H.O.Cam Ass'y. 800 H.O.
-
53417126381 GuardGuard
-
54504099600 Stopper WasherStopper Washer
-
55417126687 Spring, Black. 800 H.O. EuropeSpring, Black. 800 H.O. Europe
-
55414978300 Release Spring, Violet. 800 H.O.Release Spring, Violet. 800 H.O.
-
56417126733 SpacerSpacer
-
57417126734 Half KeyHalf Key
-
58504112300 ShimShim
-
59417126322 Swivel AbutmentSwivel Abutment
-
60417300252 SpacerSpacer
-
61417300265 SpacerSpacer
-
62417300252 SpacerSpacer
-
63504112000 ShimShim
-
64417300238 ProtectorProtector
-
65517302322 Strength WasherStrength Washer
-
66207087544 Hex Screw M8 X 75Hex Screw M8 X 75
-
67293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
68293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
69417300166 Drive BeltDrive Belt
-
70417300213 Belt GuardBelt Guard
-
71516002670 Security Label, Belt GuardSecurity Label, Belt Guard
-
72417300216 Belt Guard BracketBelt Guard Bracket
-
73390909200 Avex RivetAvex Rivet
-
74417300248 Side Protector Ass'y. Includes 74 to 75Side Protector Ass'y. Includes 74 to 75
-
75417300246 FoamFoam
-
76293150103 Rivet Pop 3/16''Rivet Pop 3/16''
-
77516001639 Decal, Suspension AdjustmentDecal, Suspension Adjustment
-
78517281905 BracketBracket
-
79390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
80516002737 Caution Label, Altitude. Canada / U.S.A.Caution Label, Altitude. Canada / U.S.A.
-
81516002738 Caution Label, Altitude. EuropeCaution Label, Altitude. Europe
-
82516002674 Emergency Starting LabelEmergency Starting Label
