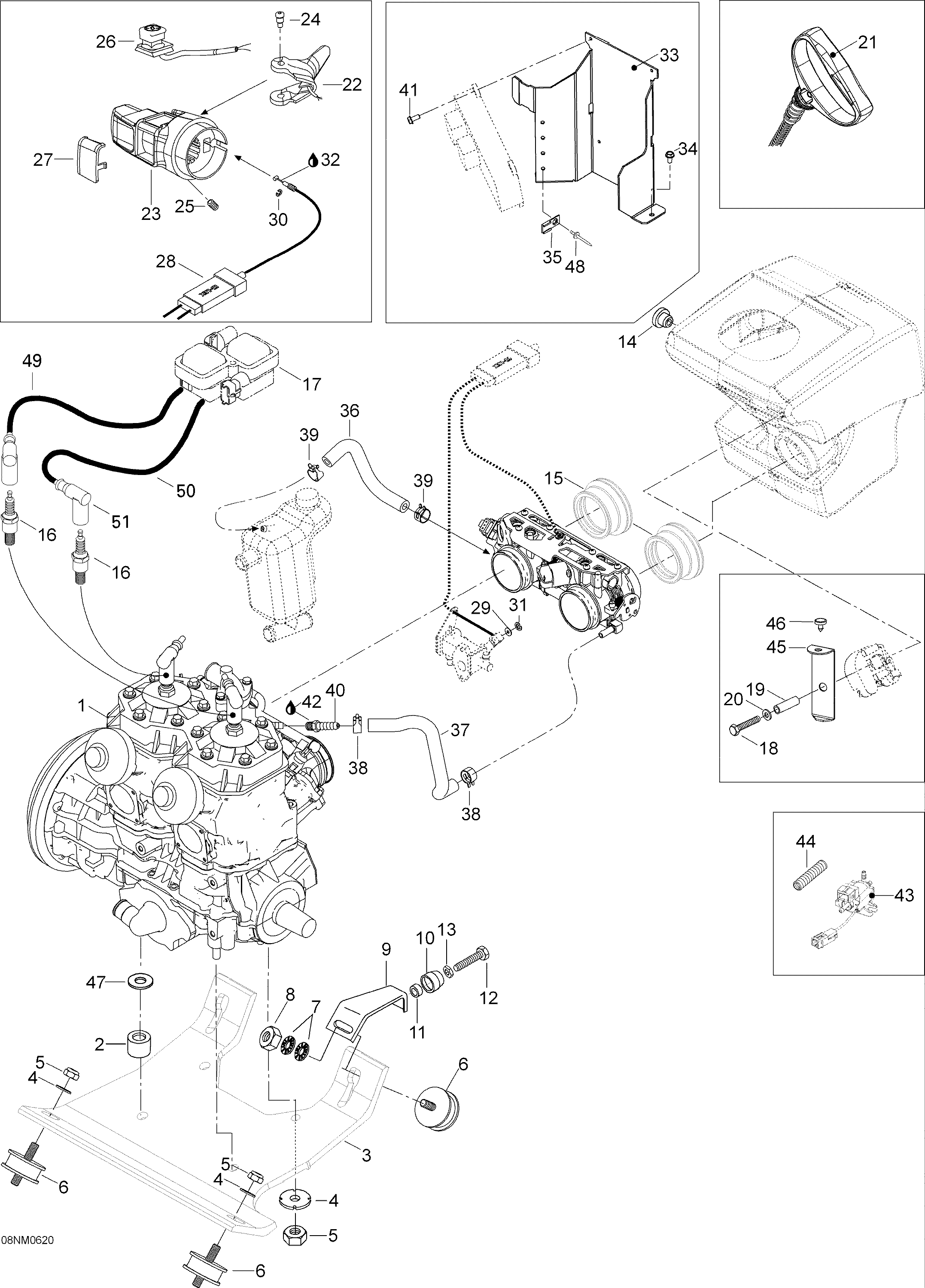

01- Engine And Engine Support для BRP Ski-Doo Expedition 600 H.O. SDI - 2006
-
№АртикулНазвание
-
2M5446347 SleeveSleeve
-
3605251437 Engine SupportEngine Support
-
4512056700 Lock WasherLock Washer
-
5233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
6570128700 Rubber MountRubber Mount
-
7M20068 Lock WasherLock Washer
-
8232006414 Hex Nut M10Hex Nut M10
-
9605352447 SupportSupport
-
10605449240 SleeveSleeve
-
11M2846014 Rubber WasherRubber Washer
-
12M40121 Hex Screw M8 X 25Hex Screw M8 X 25
-
13M33003 NutNut
-
14570065500 GrommetGrommet
-
15605351756 Intake AdaptorIntake Adaptor
-
16512060029 Spark Plug Br8ecsSpark Plug Br8ecs
-
17420891645 Ignition Coil Ass'yIgnition Coil Ass'y
-
18M40084 Screw M6 X 45Screw M6 X 45
-
19512059812 SpacerSpacer
-
20234161471 Lock Washer 6 mmLock Washer 6 mm
-
21572084400 Starter GripStarter Grip
-
22512059481 Throttle HandleThrottle Handle
-
23512059763 Throttle HousingThrottle Housing
-
24732601143 Flanged ScrewFlanged Screw
-
25414440800 Set Screw M8 X 10Set Screw M8 X 10
-
26515175410 Kill SwitchKill Switch
-
27572100901 Switch CoverSwitch Cover
-
28512059362 Throttle CableThrottle Cable
-
29234081100 Flat Washer 8 mmFlat Washer 8 mm
-
30M31035 CirclipCirclip
-
31M31038 CirclipCirclip
-
32293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
33605353805 Support Plate, EcuSupport Plate, Ecu
-
34M40327 Allen Screw M6 X 12Allen Screw M6 X 12
-
35515175917 ClipClip
-
36509000093 Hose 8 mmHose 8 mm
-
37512059990 Formed HoseFormed Hose
-
38414655700 Spring ClampSpring Clamp
-
39293650170 Tridon Hose ClampTridon Hose Clamp
-
40512059970 Male Connector 1/8''-27 NptMale Connector 1/8''-27 Npt
-
41210251680 Hex Forming Screw M5 X 16Hex Forming Screw M5 X 16
-
42293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
43512059809 Heating Element BracketHeating Element Bracket
-
44M28004 TubingTubing
-
45605352895 Support, HoodSupport, Hood
-
46605452114 PlugPlug
-
47M20105 WasherWasher
-
48M36005 RivetRivet
-
49420664305 Ignition Cable Ass'y 245mm PTOIgnition Cable Ass'y 245mm PTO
-
50420664300 Ignition Cable Ass'y 365mm MagIgnition Cable Ass'y 365mm Mag
-
51278000237 Spark Plug ConnectorSpark Plug Connector
