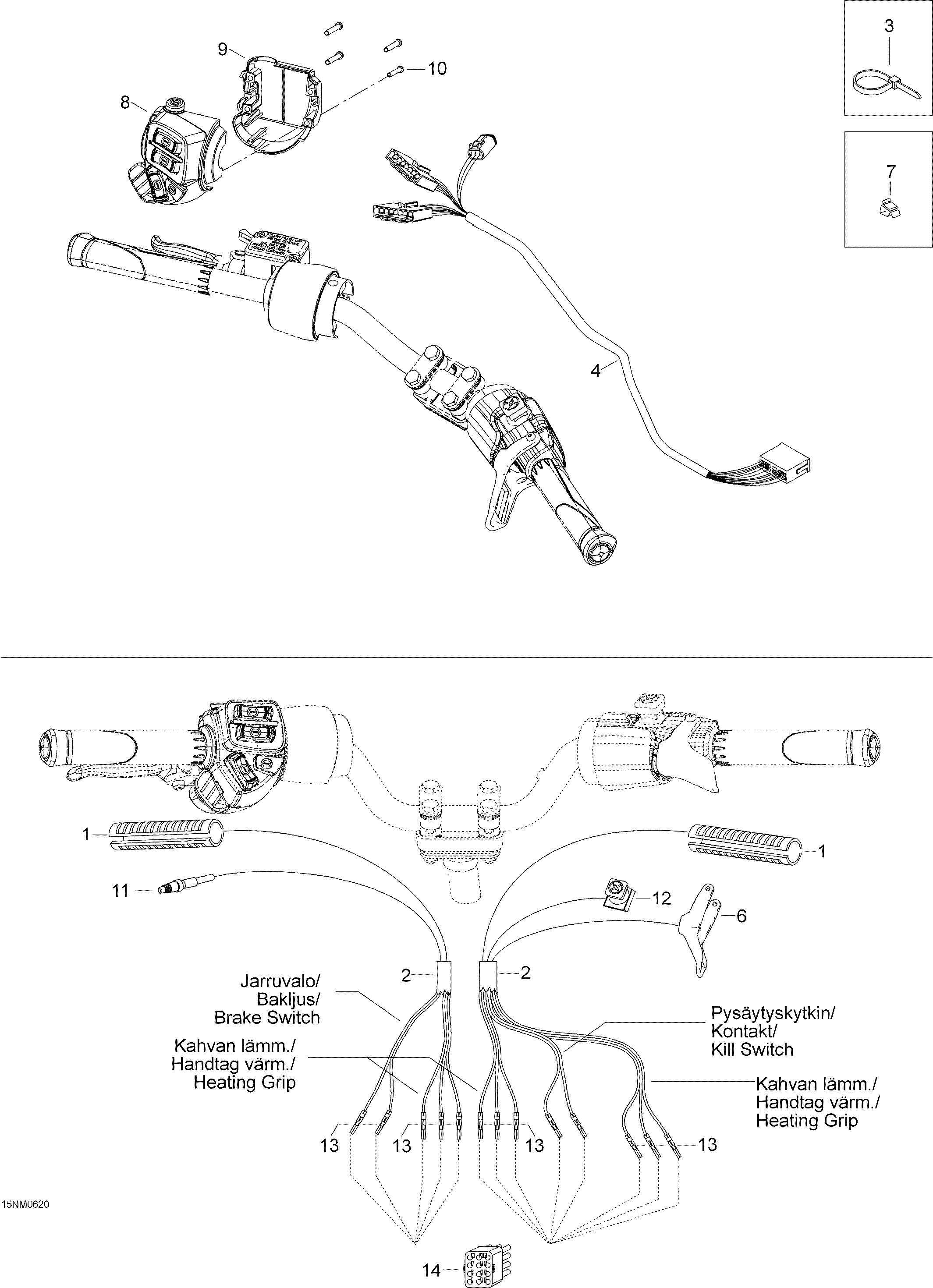

10- Steering Wiring Harness для BRP Ski-Doo Expedition 600 H.O. SDI - 2006
-
№АртикулНазвание
-
1515175657 Heating ElementHeating Element
-
2M39023 HousingHousing
-
3M27010 Tie Rap 98mmTie Rap 98mm
-
3M27100 Tie Rap 290 mmTie Rap 290 mm
-
4605353265 Steering HarnessSteering Harness
-
5605153273 Main Harness. Not shown in the pictureMain Harness. Not shown in the picture
-
6512059481 Throttle HandleThrottle Handle
-
7414227300 ClipClip
-
8515176015 LH Housing SwitchLH Housing Switch
-
9515175926 Housing Switch PlateHousing Switch Plate
-
10M40903 Screw 3.5X25Screw 3.5X25
-
11507032366 MicroswitchMicroswitch
-
12515175410 Kill SwitchKill Switch
-
13M42603 Male TerminalMale Terminal
-
14M42617 Male Connector HousMale Connector Hous
