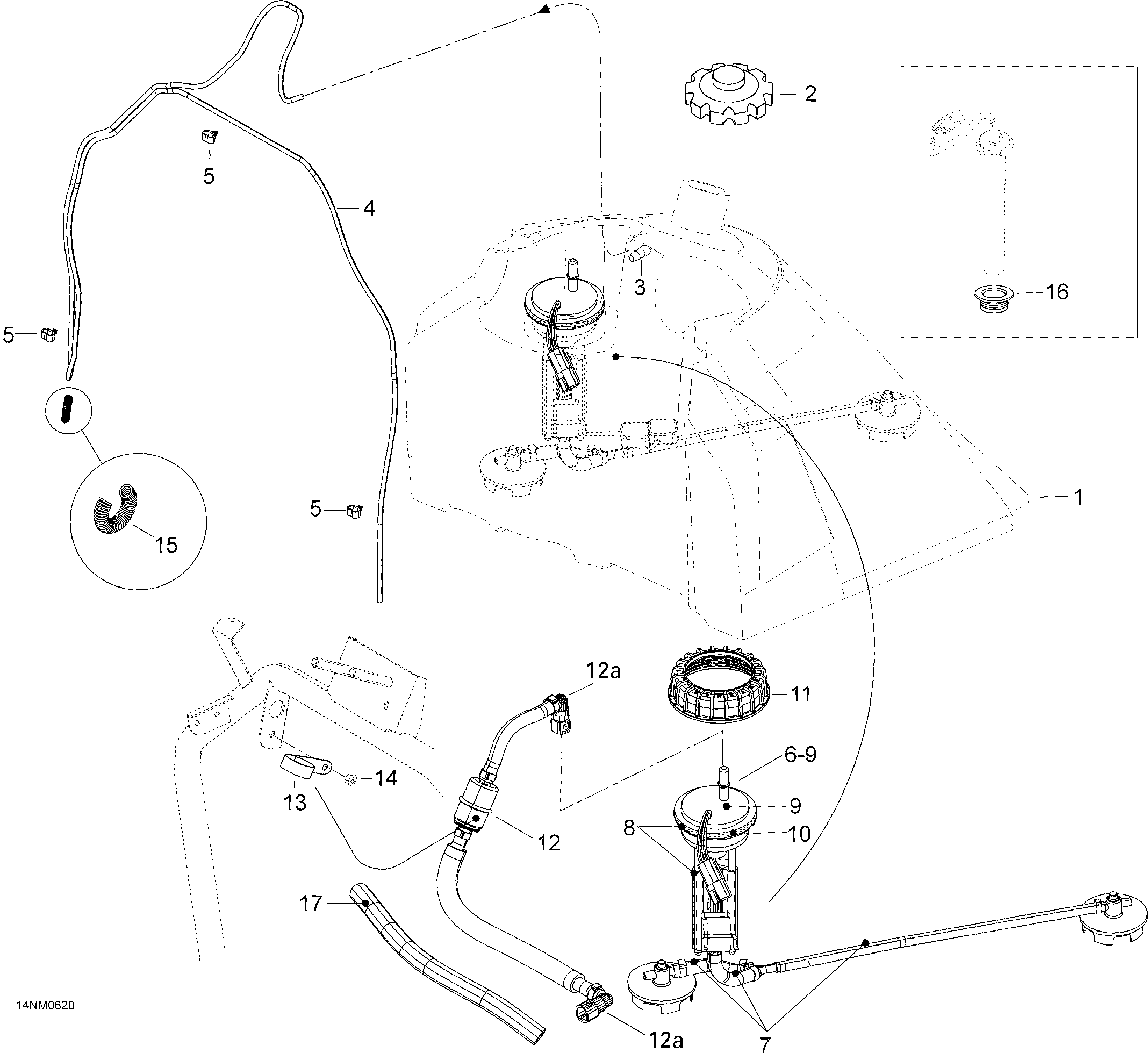

02- Fuel System для BRP Ski-Doo Expedition 600 H.O. SDI - 2006
-
№АртикулНазвание
-
1605153637 Fuel TankFuel Tank
-
2580259400 CapCap
-
3404127600 NippleNipple
-
4M39035 HoseHose
-
5513032923 Tube ClampTube Clamp
-
6605351840 Fuel Pump Ass'y. Includes 6 to 9Fuel Pump Ass'y. Includes 6 to 9
-
7M19183 Fuel Hose KitFuel Hose Kit
-
8861302600 Fuel Pump KitFuel Pump Kit
-
9861302100 Regulator KitRegulator Kit
-
10513033039 SealSeal
-
11513033040 Nut (Fuel Pump Module)Nut (Fuel Pump Module)
-
12605352618 Hose Ass'yHose Ass'y
-
12a513033135 Locking ClipLocking Clip
-
13513033047 Open ClampOpen Clamp
-
14M33200 Nut M6Nut M6
-
15M25003 SpringSpring
-
16293720058 GrommetGrommet
-
17M27127 TubingTubing
