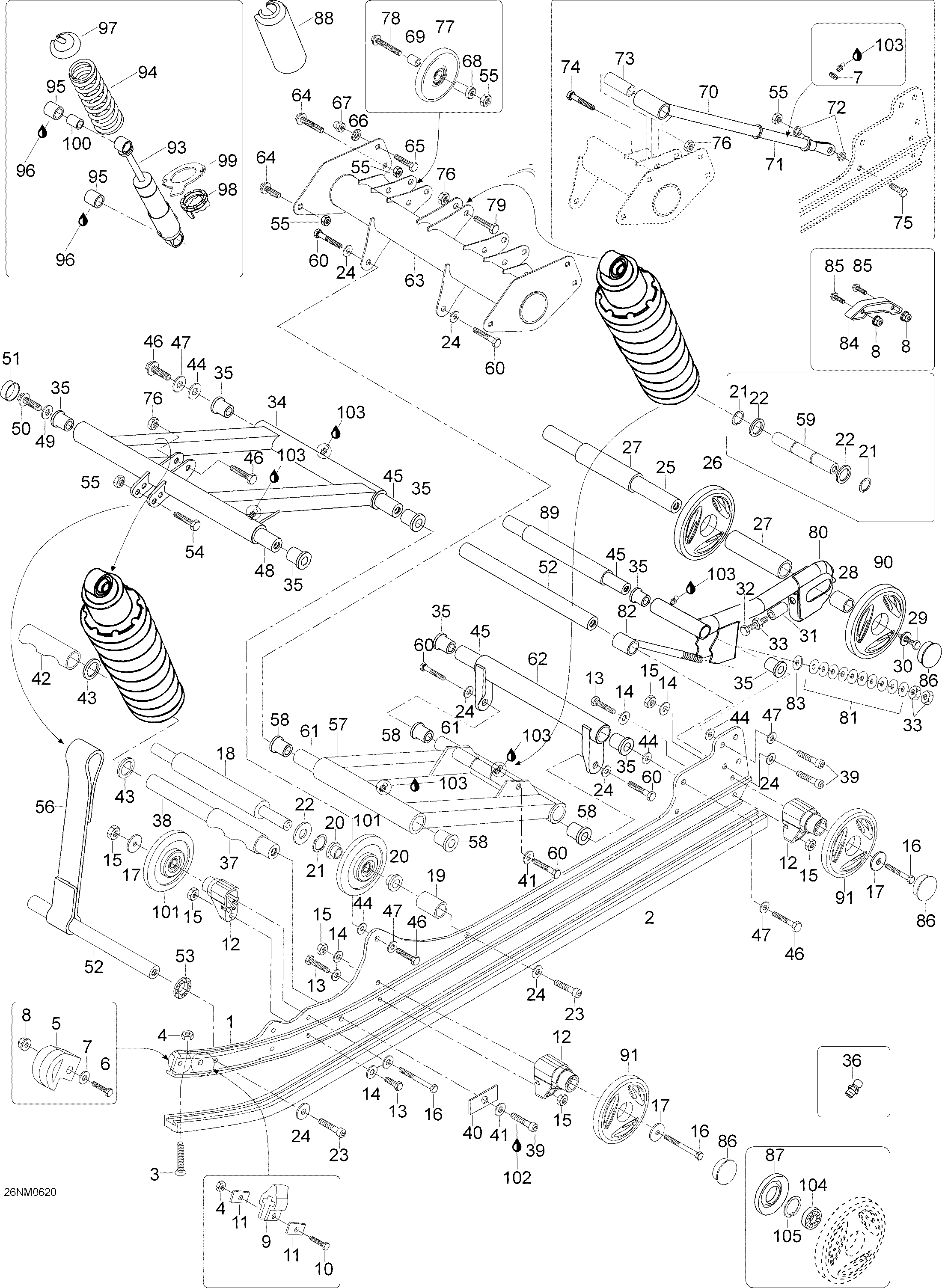

08- Rear Suspension для BRP Ski-Doo Expedition 600 H.O. SDI - 2006
-
№АртикулНазвание
-
1M5247224 RunnerRunner
-
2M5347724 Runner ShoeRunner Shoe
-
3M40059 Screw M6X60Screw M6X60
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5605348954 Runner ProtectorRunner Protector
-
6207162544 Hex Screw M6 X 25Hex Screw M6 X 25
-
7234061410 Flat Washer M6Flat Washer M6
-
8M33200 Nut M6Nut M6
-
9M5448216 Rubber StopperRubber Stopper
-
11M548470 PlatePlate
-
12605450182 SupportSupport
-
13207182544 Hex Screw M8 X 25Hex Screw M8 X 25
-
14M20104 WasherWasher
-
15232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
16M40089 ScrewScrew
-
17503183100 WasherWasher
-
18M5347950 AxleAxle
-
19M5447951 SleeveSleeve
-
20503189534 CushionCushion
-
21M31007 CirclipCirclip
-
22M31091 ShimShim
-
23M40134 Allen Screw M10 X 45Allen Screw M10 X 45
-
24M20105 WasherWasher
-
25M5343284 ShaftShaft
-
26503189478 Thin Wheel 165Thin Wheel 165
-
27M5444096 SleeveSleeve
-
28M5444098 Sleeve L=29Sleeve L=29
-
29M40050 Hex Screw With Nylon PatchHex Screw With Nylon Patch
-
30503183300 WasherWasher
-
31605452332 SpacerSpacer
-
32M40239 ScrewScrew
-
33232006414 Hex Nut M10Hex Nut M10
-
34M5147672 Front ArmFront Arm
-
35M31024 Slide BearingSlide Bearing
-
36M34011 Grease FittingGrease Fitting
-
37M5347718 LimiterLimiter
-
38M5347726 ShaftShaft
-
39M40536 Allen Screw M10 X 45Allen Screw M10 X 45
-
40M5447940 Support PlateSupport Plate
-
41M20068 Lock WasherLock Washer
-
42M5346649 SleeveSleeve
-
43M31013 ShimShim
-
44M20116 WasherWasher
-
45M5347713 ShaftShaft
-
46207004544 Hex Screw M10 X 45Hex Screw M10 X 45
-
47512056700 Lock WasherLock Washer
-
48605348606 ShaftShaft
-
49M20090 Conical Spring WasherConical Spring Washer
-
50M40243 Screw M12 X 60Screw M12 X 60
-
51M5448025 CapCap
-
52M5347717 ShaftShaft
-
53M4181158 WasherWasher
-
54207084544 Hex Screw M8 X 45Hex Screw M8 X 45
-
55232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
56M5447919 Stopper StrapStopper Strap
-
57605349313 Rear Arm Weld LightRear Arm Weld Light
-
58M31027 Slide BearingSlide Bearing
-
59605451897 Rearshock ShaftRearshock Shaft
-
60207004044 Hex Screw M10 X 40Hex Screw M10 X 40
-
61M5346865 ShaftShaft
-
62M5347668 Welded Rear ArmWelded Rear Arm
-
63605249988 Upper ArmUpper Arm
-
64M40058 Carriage BoltCarriage Bolt
-
65M40056 ScrewScrew
-
66M20072 Lock WasherLock Washer
-
67M33044 NutNut
-
68605450372 Flanged SleeveFlanged Sleeve
-
69605450373 SleeveSleeve
-
70M5347851 TubeTube
-
71M5347852 ShaftShaft
-
72M5447853 InsertInsert
-
73M5447848 SleeveSleeve
-
74207186044 Hex. screw M8 x 60Hex. screw M8 x 60
-
75207103544 Hex Screw M10 X 35Hex Screw M10 X 35
-
76233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
77M46027 Idler WheelIdler Wheel
-
78M40088 Hex Screw M8 X 70Hex Screw M8 X 70
-
79207005044 Hex Screw M10 X 50Hex Screw M10 X 50
-
80605251782 RH ExtensionRH Extension
-
80605251781 LH ExtensionLH Extension
-
81M25004 Spring PlateSpring Plate
-
82M5447373 Adjuster Bolt EyeAdjuster Bolt Eye
-
83M20011 WasherWasher
-
84M5343191 ProtectorProtector
-
85M40064 Hex ScrewHex Screw
-
86570063600 Wheel CapWheel Cap
-
87572089000 Labyrinth SealLabyrinth Seal
-
88M5346754 Shock ProtectorShock Protector
-
89605448429 SleeveSleeve
-
90503190856 Wheel 165 mmWheel 165 mm
-
91503190796 Wheel 139 mm Ass'y, Full MoonWheel 139 mm Ass'y, Full Moon
-
92605350536 Center Shock. (Includes 92 to 98)Center Shock. (Includes 92 to 98)
-
92605350647 Rear Shock Assy. (Includes 92 to 99)Rear Shock Assy. (Includes 92 to 99)
-
93M23204 Center ShockCenter Shock
-
93M23152 Rear ShockRear Shock
-
94M25065 Center SpringCenter Spring
-
94M230079 Rear SpringRear Spring
-
95M31094 SleeveSleeve
-
96M320006 Loctite 641, 50 mlLoctite 641, 50 ml
-
97M230076 Spring StopperSpring Stopper
-
98M230078 CamCam
-
99605348748 Arm Adjusting Ass'YArm Adjusting Ass'Y
-
100M5446652 SleeveSleeve
-
101503190798 Wheel 139 mm Ass'yWheel 139 mm Ass'y
-
102293800060 Loctite 243, 250 mlLoctite 243, 250 ml
-
103219700417 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
104503190795 Ball BearingBall Bearing
-
105371901700 Circlip, InteriorCirclip, Interior
