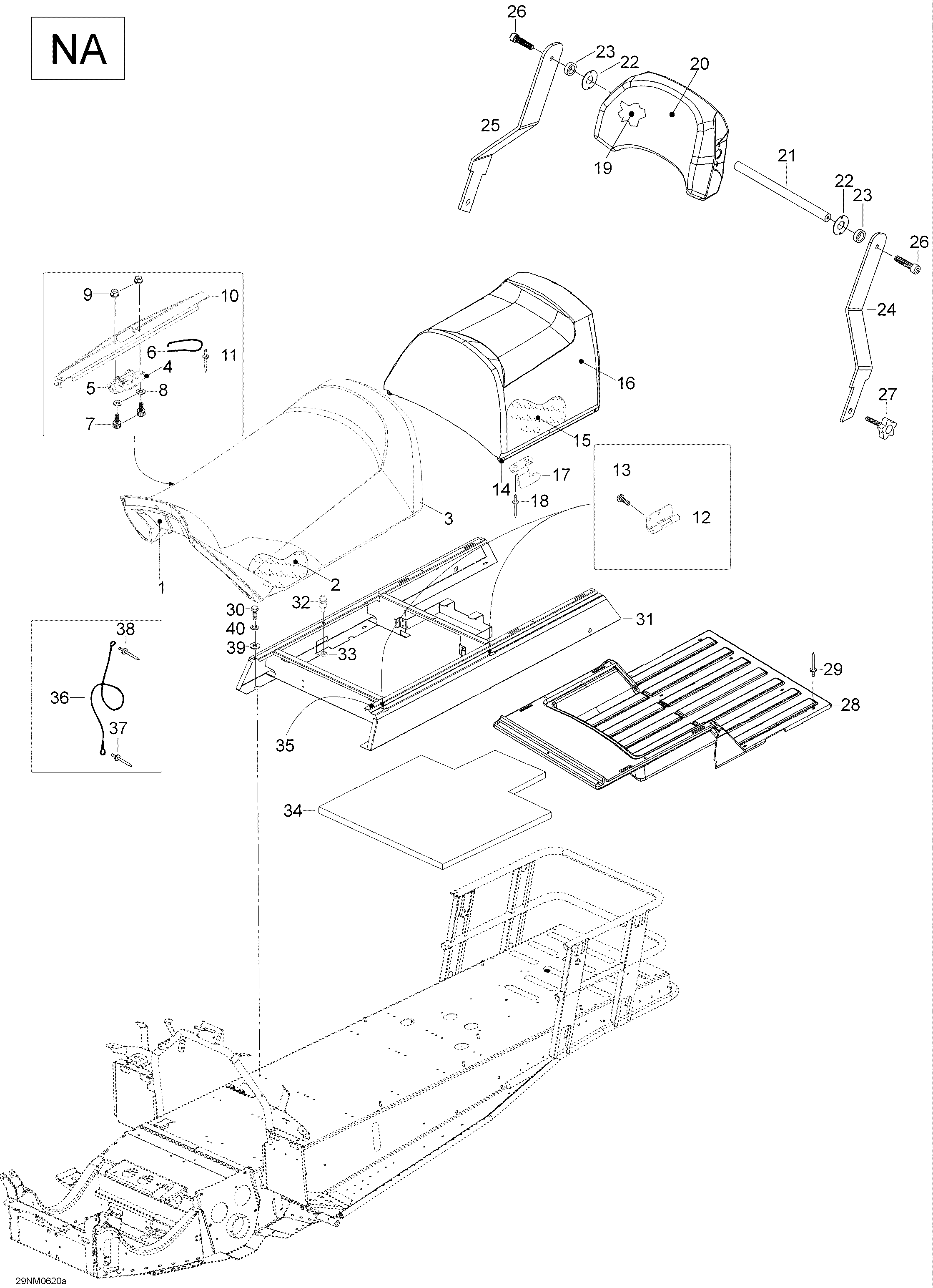

09- Seat 1 для BRP Ski-Doo Expedition 600 H.O. SDI - 2006
-
№АртикулНазвание
-
1605251388 Seat Base, FrontSeat Base, Front
-
2605251389 Foam. FrontFoam. Front
-
3605251422 Cover, FrontCover, Front
-
4269700076 CapCap
-
5269700077 HandleHandle
-
6269700017 SpringSpring
-
7M40276 Socket Head Screw M6 X 25Socket Head Screw M6 X 25
-
8234061410 Flat Washer M6Flat Washer M6
-
9232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
10605352483 Support PlateSupport Plate
-
11M36088 RivetRivet
-
12605351798 HingeHinge
-
13M40890 Screw 4,2 X 16Screw 4,2 X 16
-
14605251390 Seat Base, RearSeat Base, Rear
-
15605251391 Foam, RearFoam, Rear
-
16605251425 CoverCover
-
17605351808 LH HookLH Hook
-
17605352007 RH HookRH Hook
-
18M36087 RivetRivet
-
19510004365 Backrest FoamBackrest Foam
-
20605353881 CoverCover
-
21510004377 Upper Backrest AxleUpper Backrest Axle
-
22510004379 WasherWasher
-
23510004378 Rubber ShimRubber Shim
-
24605353779 L.h. ArmL.h. Arm
-
25605353963 R.h. ArmR.h. Arm
-
26205982586 Socket Head Screw S.grip, M8x1.25x25Socket Head Screw S.grip, M8x1.25x25
-
27510003533 Handle M8 X 35Handle M8 X 35
-
28605151397 CoverCover
-
29M36036 Rivet-BlackRivet-Black
-
30207161644 Hex Screw M6 X 16Hex Screw M6 X 16
-
31605252651 Seat BaseSeat Base
-
32605452035 Lock PinLock Pin
-
33232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
34605352460 FoamFoam
-
35M28413 Sealing StripSealing Strip
-
36M546777 Retainer CableRetainer Cable
-
37M36037 RivetRivet
-
38M36489 RivetRivet
-
39M20009 Washer 6.4 Din 9021Washer 6.4 Din 9021
-
40234161471 Lock Washer 6 mmLock Washer 6 mm
