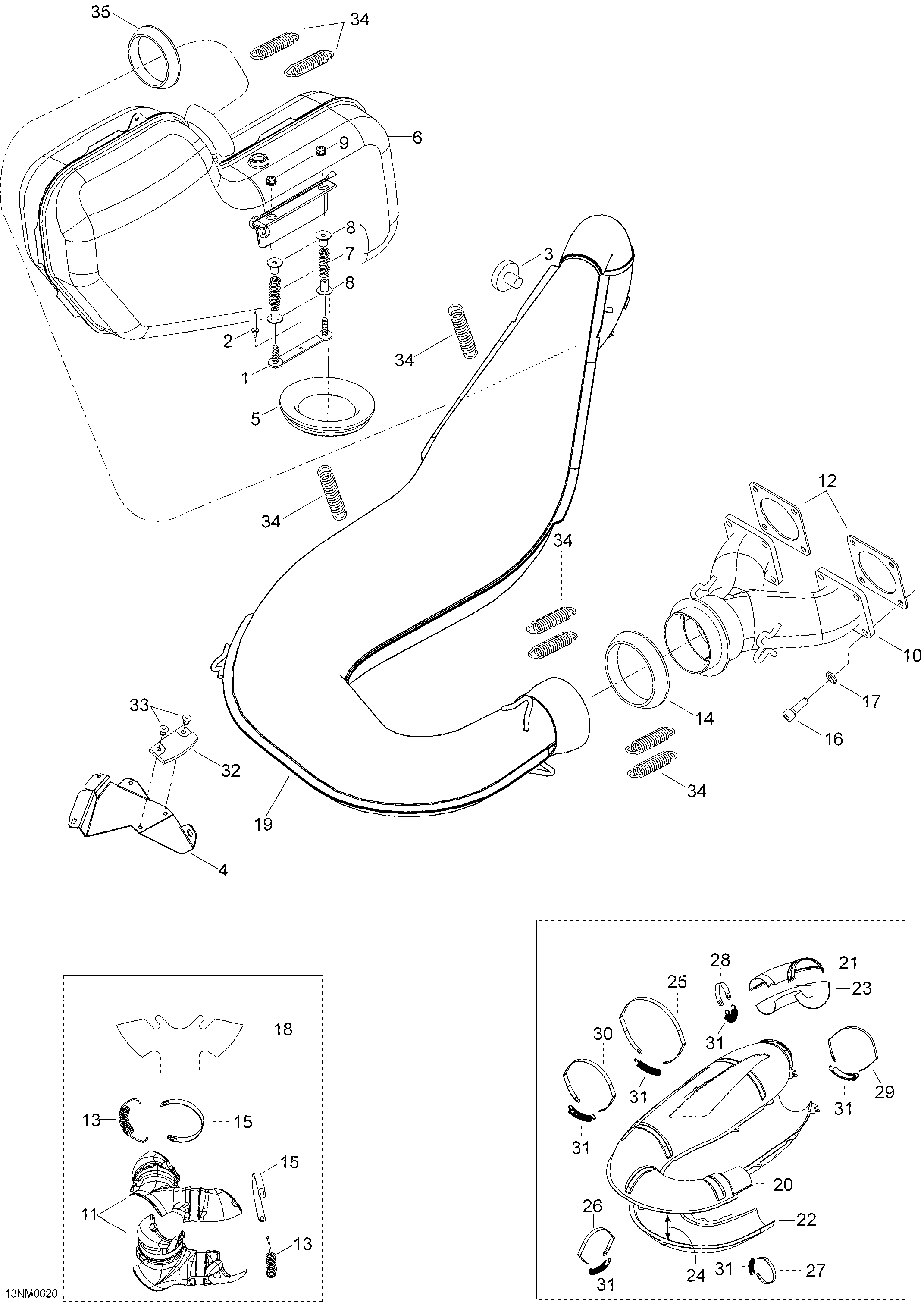

01- Exhaust System для BRP Ski-Doo Expedition 600 H.O. SDI - 2006
-
№АртикулНазвание
-
1605453843 BracketBracket
-
2M36489 RivetRivet
-
3514053654 Rubber BumperRubber Bumper
-
4605351705 SupportSupport
-
5570039000 Exhaust GrommetExhaust Grommet
-
6605153845 Muffler Ass'yMuffler Ass'y
-
7414913700 SpringSpring
-
8514053343 GuideGuide
-
9M33029 Lock Nut Vm8Lock Nut Vm8
-
10420673072 ManifoldManifold
-
11514053593 Enveloppe (Exhaust Manifold)Enveloppe (Exhaust Manifold)
-
12420850552 GasketGasket
-
13514053643 SpringSpring
-
14514053487 Exhaust GasketExhaust Gasket
-
15514053603 Retaining StrapRetaining Strap
-
16M40052 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
17234161471 Lock Washer 6 mmLock Washer 6 mm
-
18514053588 Insulating WoolInsulating Wool
-
19514054003 Tuned Pipe Ass'y. Includes 19 to 31Tuned Pipe Ass'y. Includes 19 to 31
-
20514053181 Upper Front Half EnveloppeUpper Front Half Enveloppe
-
21514054008 Upper Rear Half EnveloppeUpper Rear Half Enveloppe
-
22514053367 Lower EnvelopeLower Envelope
-
23514054009 Lower Rear Half EnveloppeLower Rear Half Enveloppe
-
24514054010 Insulatin WoolInsulatin Wool
-
25514053540 Retaining StrapRetaining Strap
-
26514053501 Retaining StrapRetaining Strap
-
27514053498 Retaining StrapRetaining Strap
-
28514053492 Retaining StrapRetaining Strap
-
29514053500 Retaining StrapRetaining Strap
-
30514053512 Retaining StrapRetaining Strap
-
31514053643 SpringSpring
-
32514053352 BumperBumper
-
33M36037 RivetRivet
-
34415107100 SpringSpring
-
35514053677 Exhaust GasketExhaust Gasket
