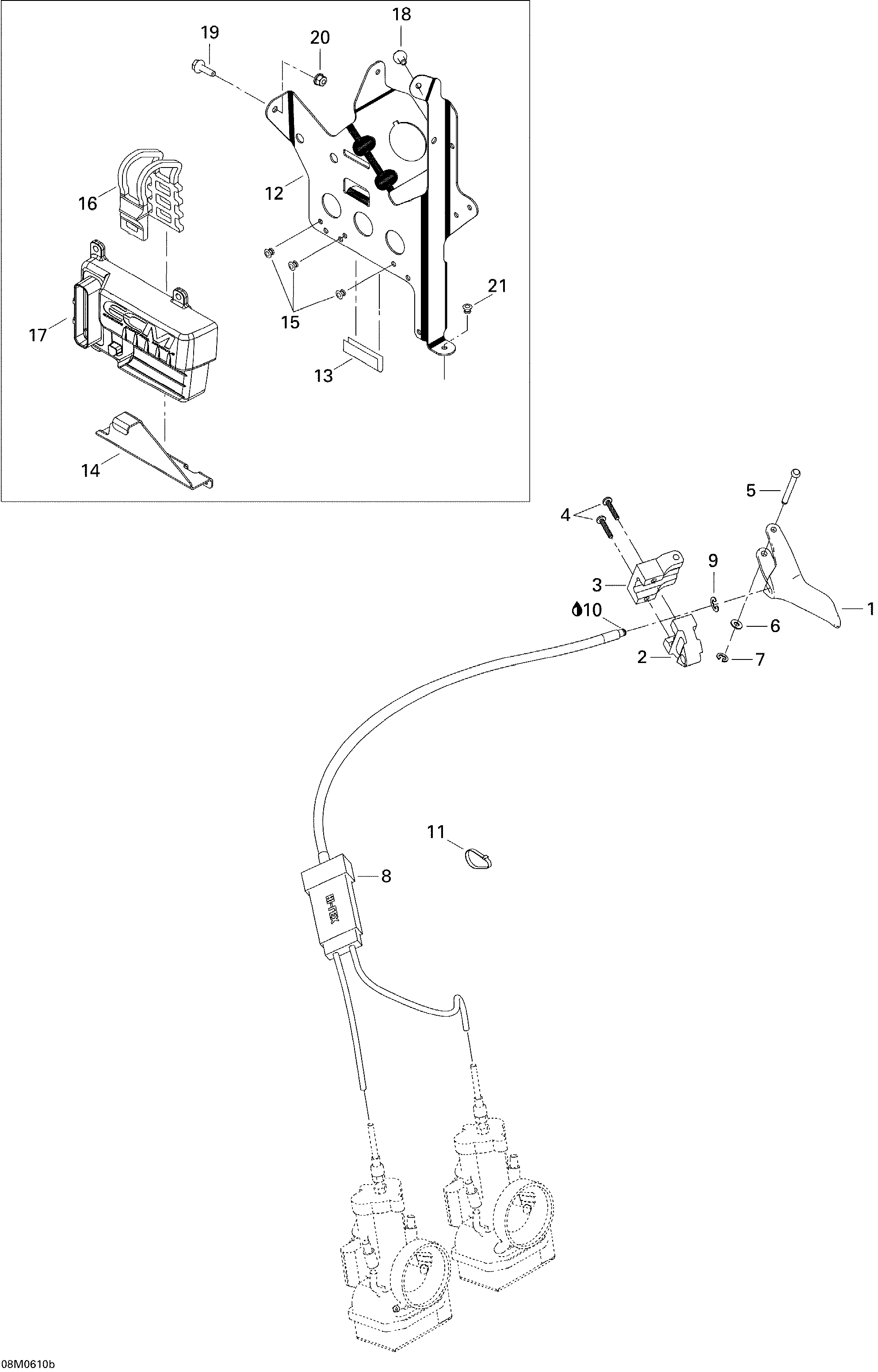

01- Engine для BRP Ski-Doo MX Z 440 Racing - 2006
-
№АртикулНазвание
-
1512059767 Handle Ass'YHandle Ass'Y
-
2512059537 Lower HousingLower Housing
-
3512059538 Upper HousingUpper Housing
-
4205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
5414438700 Lever PinLever Pin
-
6234051600 Flat Washer M5Flat Washer M5
-
7414439000 CirclipCirclip
-
8512059742 Throttle CableThrottle Cable
-
9414274500 CirclipCirclip
-
10293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
11293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
12512060141 Ecm SupportEcm Support
-
13271000110 Protector TrimProtector Trim
-
14518324951 PlatePlate
-
15390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
16570069700 LatchLatch
-
17512060117 Calib. ModuleCalib. Module
-
18207561244 Hex Flanged Screw M6 X 12, Scotch GripHex Flanged Screw M6 X 12, Scotch Grip
-
19207662544 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
20233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
21390402400 Pop Rivet 3/16''Pop Rivet 3/16''
