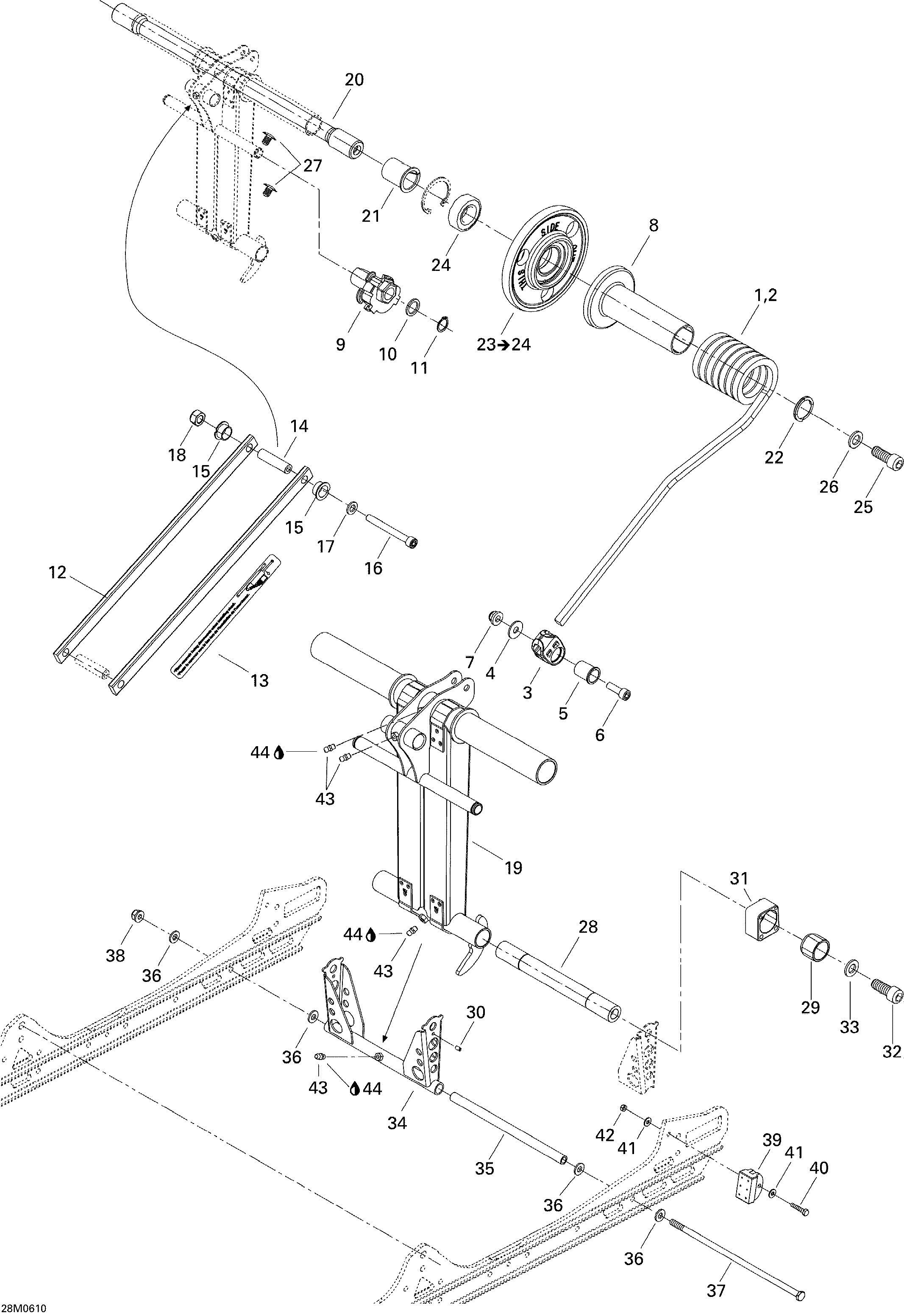

08- Rear Arm для BRP Ski-Doo MX Z 440 Racing - 2006
-
№АртикулНазвание
-
1503190999 RH SpringRH Spring
-
2503191000 LH SpringLH Spring
-
3503190583 Spring SupportSpring Support
-
4234082410 Flat Washer M8Flat Washer M8
-
5503190754 Retainer CushionRetainer Cushion
-
6205082544 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
7233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
8503190584 Plastic BushingPlastic Bushing
-
9503190585 LH Spring CamLH Spring Cam
-
9503190586 RH Spring CamRH Spring Cam
-
10503183400 WasherWasher
-
11293370043 CirclipCirclip
-
12503190644 Tie RodTie Rod
-
13516001790 DecalDecal
-
14503191192 Bar AxleBar Axle
-
15506150200 Bushing SwivelBushing Swivel
-
16205009044 Socket Screw M10 X 90Socket Screw M10 X 90
-
17503175800 WasherWasher
-
18232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
19503190645 Rear ArmRear Arm
-
20503190618 Upper ShaftUpper Shaft
-
21503190619 CushionCushion
-
22503190690 Axle SpringAxle Spring
-
23503190620 Wheel 141. Includes 23 to 24Wheel 141. Includes 23 to 24
-
24503190621 Ball BearingBall Bearing
-
25205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
26503189276 WasherWasher
-
27414644300 DartDart
-
28503190725 Lower ShaftLower Shaft
-
29503189488 Block GuideBlock Guide
-
30250400005 Dowel Pin 4 X 8 mmDowel Pin 4 X 8 mm
-
31503190623 LH Block, 4 PositionsLH Block, 4 Positions
-
31503190622 RH Block, 4 PositionsRH Block, 4 Positions
-
32205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
33503189148 WasherWasher
-
34503191091 Pivot ArmPivot Arm
-
35503189156 Pivot Arm AxlePivot Arm Axle
-
36503189157 WasherWasher
-
37732601198 Long Bolt M8Long Bolt M8
-
38233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
39503189608 Rubber StopperRubber Stopper
-
40207053044 Hex Screw M5 X 30Hex Screw M5 X 30
-
41250200016 WasherWasher
-
42232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
43408200700 Grease FittingGrease Fitting
-
44219700417 Synthetic Grease, 400 GSynthetic Grease, 400 G
